Smooth Surface Stainless Steel Filter Tube Firm Structure 2um To 2000um

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 500Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Large Dirt-holding Capacity. Product Name Tube Filter
Material Stainless Steel, Copper, Carbon Steel, Aluminum, Etc. Shapes Round, Square, Rectangular, Etc.
Weaving Type Plain Weave, Twill Weave, Dutch Weave, Etc. Layers Single Layer Or Multiple Layers.
Filter Precision 2 - 2000 µm. Wire 0.025 - 2.5 Mm.
Marginal Materials Rubber, Stainless Steel, Aluminum, Copper, Etc. Application Petroleum, Chemistry, Metallurgy, Machine, Medicine, Etc
High Light

smooth surface stainless steel filter tube

,

2um stainless steel filter tube

,

2000um wire mesh filter tube

Leave a Message
Product Description

 Tube Filter Also Named Filter Tube Smooth Surface And Firm Structure 2um To 2000um



Tube Filter Disc Introduction:



Tube filter, also known as filter tube, is made of wire mesh and then is rolled into tube shape. According to the material, it can be classified into stainless steel tube filter, copper tube filter, black wire cloth tube filter, galvanized steel tube filter, etc. According to the processing technology, it can be classified into woven tube filter, perforated tube filter, expanded metal tube filter, etc. Among these products, stainless steel tube filter and black wire cloth tube filter is more popular than other types. And compared with the cylinder filter, it often has no metal flange. With accurate filtration rate, tube filter can filter a large variety of fluids and retain almost any size solids. With high mechanical strength, tube filter is mainly used in pipeline filtration, petroleum, chemical industry, pharmacy, food making filtration and sewage water filtration, etc.



Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.

Sketch map of filter mesh's weaving type: plain weave, dutch weave, twilled weave, twilled dutch.

Specification


Wire materials: stainless steel, copper, carbon steel, aluminum, etc.
Wire Diameters: 0.025 - 2.5 mm.
Weaving types: plain weave, twill weave, dutch weave, etc.
Layer: single layer or multiple layers.
Marginal materials: rubber, stainless steel, aluminum, copper, etc.
Perforated hole patterns: round, square, rectangular, etc.
Filter precision: 2 - 2000 µm.




Stainless steel sintered filter discs' specification
Mesh counts Wire Diameter (mm) Aperture (mm)
8 to 28 0.3 - 1 0.8 - 2.66
35 0.17 0.56
40 0.23 0.4
50 0.2 0.31
60 0.15 0.27
70 0.12 0.24
80 0.13 0.19
90 0.12 0.16
100 0.1 0.15
120 0.09 0.12
150 0.063 0.11
180 0.053 0.09
200 0.053 0.07
220 0.05 0.065
250 0.04 0.062



Advantages:



Excellent anti-wear property and rigidity.
Withstand high temperature and harsh work conditions.
Excellent corrosion resistance: acid and alkali resistance.
Accurate filtration precision.
Easy to install, use and clean.
Long service life.

Features:



High porosity and excellent permeability.
Corrosion resistance and high temperature resistance.
Large dirt-holding capacity.
Accurate filtration precision.
Easy processing and installing.
Easy forming, painting, polishing, welding and cleaning.
Firm structure and different hole patterns.



Applications:



Tube filter is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurity and foam mixed in the gas and liquid.

Filtration of air: air filters, vacuum filters, filtration of corrosive gases, cage ventilation, etc.
Filtration of liquid: ceramics polluted water cleaning, beverage, disposal of sewage water, filtration of corrosive liquids, beer brewing filter, etc.
Filtration of solid: glass, coal, food processing industry, cosmetics, fluidised beds, etc.
Filtration of oil: oil refining, hydraulic oil, oilfield pipelines, etc.
Filtration of other fields: textile industry, insulation industry, automotive industry, chemical industry, metallurgy, pharmacy, electronic field, etc.

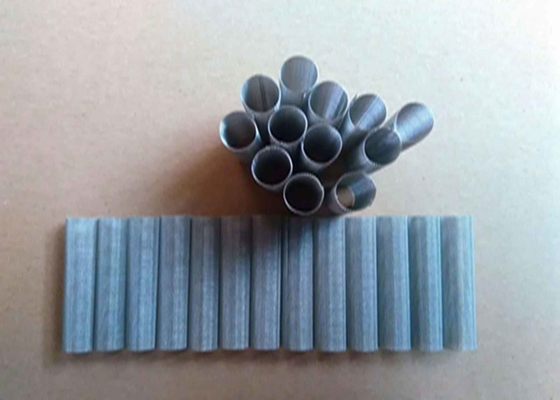

Smooth Surface Stainless Steel Filter Tube Firm Structure 2um To 2000um 1

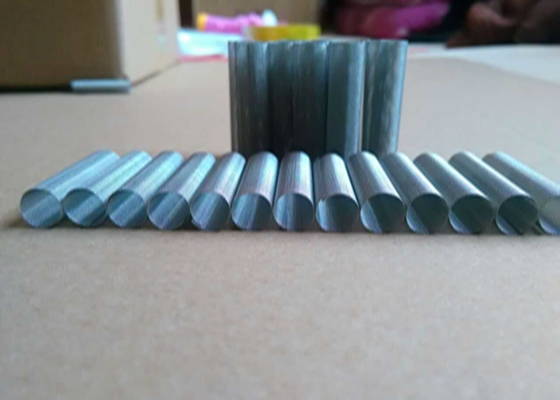

Smooth Surface Stainless Steel Filter Tube Firm Structure 2um To 2000um 2

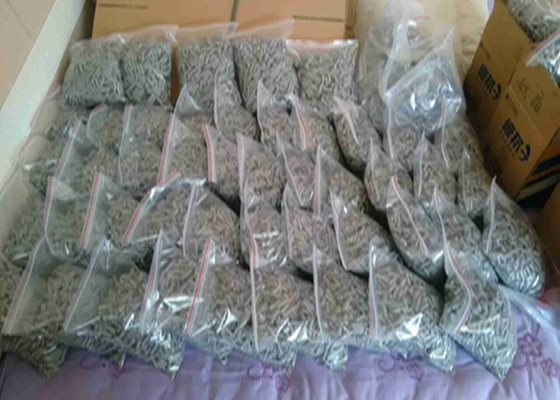

Packing:

Smooth Surface Stainless Steel Filter Tube Firm Structure 2um To 2000um 3

Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
