High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate

  • High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate
  • High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate
  • High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 500Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Good Permeability And High Dirt-holding Capacity. Product Name Sintered Filter Disc
Material Iron, Stainless Steel, Brass, Etc. Edges Spot Welded, Edge Covering And Sintering.
Shape Round, Ring, Square, Rectangular, Oval, Etc. Layers Five Layers Or Multiple Layers.
Filter Precision 0.2 µm - 300 µm. Wire 0.02 Mm - 2.03 Mm
Outer Size 5 Mm - 600 Mm (custom Size: 8 Mm - 3800 Mm). Application Electronic Industry, Petroleum Industry, Environmental Protection And Sewage Treatment, Pharmaceutical Industry, Etc.
High Light

high pressure sintered mesh filter disc

,

0.2um sintered mesh filter disc

,

300um wire mesh filter disc
Leave a Message
Product Description

Sintered Wire Mesh Filter Disc Withstands High Pressure 0.2µm To 300µm Filtration Rate



Sintered Wire Mesh Filter Disc Introduction:



Sintered filter disc, also known as sintered wire mesh filter disc, is a new filter disc product. Sintered filter disc is the combination of multi-layer filter disc. Such as woven filter disc and perforated filter disc. Generally, it has five layers and the its structure includes protecting layer, filtration control layer, scattered skeleton layer, skeleton supporting layer. According to its material, it can be classified into stainless steel sintered filter disc, galvanized sintered filter disc, copper sintered filter disc and bronze sintered filter disc. Among these specific products, stainless steel sintered filter disc is the most popular. Stainless steel sintered filter disc, is made of stainless steel mesh cut by laser cutting machine with high precision in high vacuum furnace.



Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.

Sketch map of filter mesh's weaving type: plain weave, dutch weave, twilled weave, twilled dutch.

Specification


Filter materials: iron, stainless steel, brass, etc.
Wire diameters: 0.02 mm - 2.03 mm.
Discs diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
Weaving type: plain weave, twill weave, dutch weave, etc.
Filter shapes: round, ring, square, rectangular, oval, etc.
Layers: five layers or multiple layers.
Filtration rate: 0.2 µm - 300 µm.
Process technique: spot welded, edge covering and sintering.
Marginal materials: stainless steel, copper, aluminum, rubber, etc.




Stainless steel sintered filter discs' specification
Mesh counts Wire Diameter (mm) Aperture (mm)
8 to 28 0.3 - 1 0.8 - 2.66
35 0.17 0.56
40 0.23 0.4
50 0.2 0.31
60 0.15 0.27
70 0.12 0.24
80 0.13 0.19
90 0.12 0.16
100 0.1 0.15
120 0.09 0.12
150 0.063 0.11
180 0.053 0.09
200 0.053 0.07
220 0.05 0.065
250 0.04 0.062



Advantages:



Excellent anti-wear property and rigidity.
Withstand high temperature and harsh work conditions.
Excellent corrosion resistance: acid and alkali resistance.
Accurate filtration precision.
Easy to install, use and clean.
Long service life.

Features:



Good permeability and high dirt-holding capacity.
High temperature and pressure resistance.
Excellent corrosion resistance: acid and alkali resistance.
Excellent mechanical properties: easy cutting, easy welding.
Accurate and steady filtration rate.
Cleanable and reusable.
Long service life.



Applications:



Sintered filter disc with accurate filtering efficiency and long working life, the same as stainless steel filter disc and copper filter disc, is the ideal filtering instrument for filtering and screening. And it is widely applied in electronic industry, petroleum industry, environmental protection and sewage treatment, pharmaceutical industry, etc.



Specific uses:

Seawater desalination, sterile air filtration in brewing industry.
Mixing and purifying gas in chemical fiber.
Pressure-air filtration in aviation and transportation.
Gas filtering and catalytic gas filtration in oil industry.
Dust removal in environmental protection, recovery of precious metal catalytic, etc.

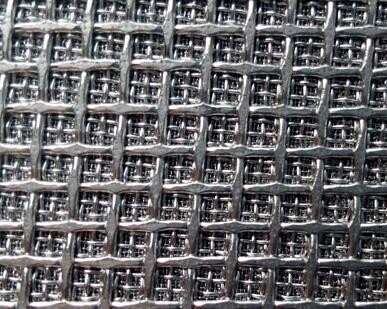

High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate 1

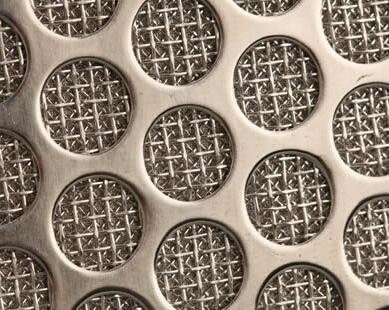

High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate 2

High Pressure Sintered Mesh Filter Disc 0.2um To 300um Filtration Rate 3



Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
