Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers

  • Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers
  • Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers
  • Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers
  • Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Tensile Force Product Name Stainless Steel Filter Disc
Material SUS304, SUS304L, SUS316, SUS316L, SUS321, Etc. Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Crescent And Semicircle, Etc. Layers Single Layer Or Multiple Layers.
Wire Dia. 0.01 Mm - 5 Mm. Disc Diameter 5 Mm - 600 Mm (custom Size: 8 Mm - 3800 Mm).
Filtration Accuracy 0.2 µm - 100 µm. Application Water Filtration, Gas Filtration, Petroleum Industry
High Light

corrosion resistance stainless steel filter disc

,

single layer stainless steel filter disc

,

multiple layers metal filter disc
Leave a Message
Product Description

Stainless Steel Filter Disc With Corrosion Resistance Single Layer Or Multiple Layers



Stainless Steel Filter Disc Introduction:



Stainless steel filter disc, also called stainless steel wire mesh filter disc, is one type of the metal filter discs. We classify the manufacture process into three steps. First, we choose high quality stainless steel wire. Second, stainless steel wire would be weaved or punched. Then, according to customers' special requirements, we will select different material to wrap the edge. What's more, in the manufacture process, we can provide stainless steel filter discs with different sizes, different shapes and different weaving methods. All can be produced according to your specific requirements. Stainless steel filter disc features excellent acid and alkali resistance and can be used in very harsh conditions, especially suitable for sour gas filtration.



Specification


Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
Wire diameters: 0.01 mm - 5 mm.
Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
Weaving methods: plain weave, twill weave, dutch weave, etc.
Layer: single layer or multiple layers.
Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.
Marginal materials: copper, aluminum, stainless steel, rubber, etc.
Filtration precision: 0.2 µm - 100 µm.

Stainless steel wire mesh: plain weave specification
Mesh Wire Diameter (mm) Aperture (mm) Material (AISI)
7 × 7 1 2.63 SUS304 SUS316
10 × 10 0.6 1.94
12 × 12 0.5 1.62
16 × 16 0.4 1.19
16 × 16 0.35 1.24
18 × 18 0.35 1.06
20 × 20 0.4 0.87
24 × 24 0.26 0.8
30 × 30 0.3 0.55
35 × 35 0.17 0.56
40 × 40 0.23 0.4
50 × 50 0.2 0.31
60 × 60 0.15 0.27
70 × 70 0.12 0.24
80 × 80 0.13 0.19
90 × 90 0.12 0.16
100 × 100 0.1 0.15
120 × 120 0.09 0.12
150 × 150 0.063 0.11
180 × 180 0.053 0.09
200 × 200 0.053 0.07

Stainless steel wire mesh: twill weave specification
Mesh Wire Diameter. (mm) Aperture (mm) Material (AISI)
250 × 250 0.04 0.063 SUS316
300 × 300 0.04 0.044
325 × 325 0.035 0.043 SUS316L
350 × 350 0.03 0.042
400 × 400 0.03 0.033
450 × 450 0.028 0.028
500 × 500 0.025 0.026

Stainless steel wire mesh: dutch weave specification
Mesh Wire Diameter (mm) Material (AISI)
12 × 64 0.58 × 0.40 SUS304 or SUS316
24 × 110 0.36 × 0.25
14 × 88 0.50 × 0.33
30 × 150 0.23 × 0.18
40 × 200 0.18 × 0.13
50 × 250 0.14 × 0.11
80 × 700 0.10 × 0.08
165 × 800 0.071 × 0.040
165 × 1400 0.06 × 0.04
200 × 1800 0.05 × 0.032
825 × 2300 0.035 × 0.025 SUS316L
Other specifications as your requests.



Features:



Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance, accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.
Chemical properties: acid, alkali and corrosion resistance.
Process properties: uniform controlled porosity, long service life, precision punched burr-free, compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.



Applications:



Stainless steel filter discs with high acid and alkali resistance can be used in very hash conditions.

Water filtration: sewage water treatment and distribution, etc.
Gas filtration: aerospace hydraulic, high temperature gas, gas distribution system, etc.
Petroleum industry: oil sands separation, lubricating oil, hydraulic start oil filter, etc.
Metallurgy: acid cleaning mesh in electric plating industry, etc.
Other fields: high pressure filter medium, chemical industry, pharmacy, machinery, dust removal, fluidized, etc.

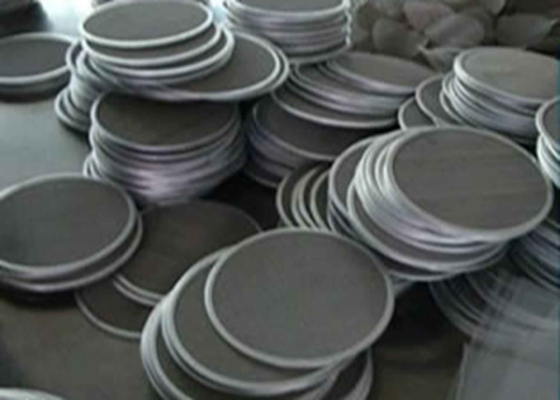

Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers 0

Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers 1

Corrosion Resistance Stainless Steel Filter Disc Single Layer Or Multiple Layers 2



Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
