Copper Wire Mesh Filter Disc 2um To 300um Filter Precision With High Fatigue Resistance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Excellent Anti-wear Property And Rigidity | Product Name | Copper Filter Disc |
---|---|---|---|
Material | Copper, Brass, Phosphor Bronze. | Weaving | Plain Weave, Twill Weave, Dutch Weave |
Shape | Round, Rectangular, Ring, Square, Oval, Abnormal Shape, Etc. | Layers | Single And Mulit Layer |
Wire Dia. | 0.02 - 2 Mm. | Disc Diameter | 5 Mm - 600 Mm (custom Size: 8 Mm - 3800 Mm). |
Filtration Accuracy | 2–1000 Microns. | Application | Sieving Diversified Pellet, Powder, Liquid And Gas |
Highlight | copper wire mesh filter disc,300um wire mesh filter disc,high fatigue resistance wire mesh disc |
Copper Filter Disc 2um To 300um Filter Precision With High Fatigue Resistance

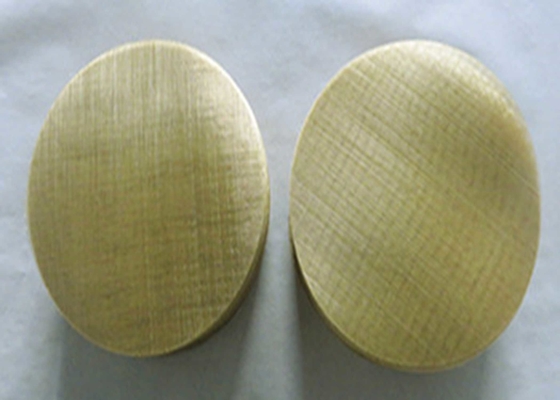

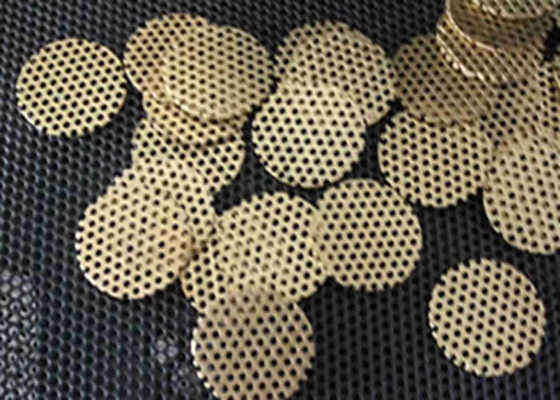

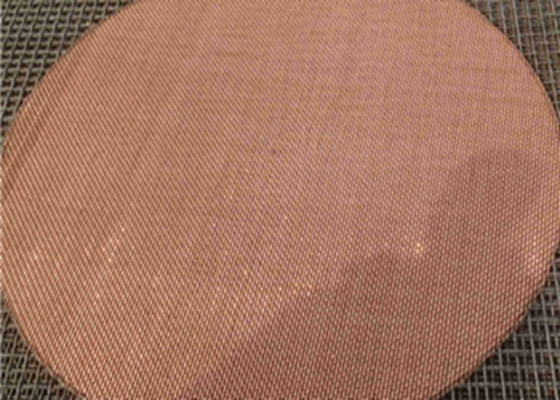

Copper Filter Disc Introduction:
Copper filter disc, also called copper wire mesh filter disc, can be classified into phosphor bronze filter disc and brass filter disc. Brass filter disc is made of brass wire. Brass, an alloy of copper and zinc, provides brass wire better abrasion resistance, better corrosion resistance and lower electrical conductivity. Bronze filter disc is made of bronze wire. Bronze, an alloy of copper and tin, provides bronze wire high hardness, high molding capacity, wear resistance, corrosion resistance, bright color and so on.
Specification
Wire diameters: 0.02 - 2 mm.
Discs diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
Weaving types: plain weave, twill weave, dutch weave, etc.
Layer: Single layer or multiple layers.
Shapes: round, rectangular, ring, square, oval, abnormal shape, etc.
Wrapping edge materials: copper, aluminum, stainless steel, rubber, etc.
Filter Precision: 2 - 300 µm.
Mesh | Wire Dia. | Opening(mm) | ||
SWG | mm | inch | ||
6 | 22 | 0.711 | 0.028 | 3.522 |
8 | 23 | 0.61 | 0.024 | 2.565 |
10 | 25 | 0.508 | 0.02 | 2.032 |
12 | 26 | 0.457 | 0.018 | 1.66 |
14 | 27 | 0.417 | 0.016 | 1.397 |
16 | 29 | 0.345 | 0.014 | 1.243 |
18 | 30 | 0.315 | 0.012 | 1.096 |
20 | 30 | 0.315 | 0.0124 | 0.955 |
22 | 30 | 0.315 | 0.0124 | 0.84 |
24 | 30 | 0.315 | 0.0124 | 0.743 |
26 | 31 | 0.295 | 0.0116 | 0.682 |
28 | 31 | 0.295 | 0.0116 | 0.612 |
30 | 32 | 0.247 | 0.011 | 0.573 |
32 | 33 | 0.254 | 0.01 | 0.54 |
34 | 34 | 0.234 | 0.0092 | 0.513 |
36 | 34 | 0.234 | 0.0092 | 0.472 |
38 | 35 | 0.213 | 0.0084 | 0.455 |
40 | 36 | 0.193 | 0.0076 | 0.442 |
42 | 36 | 0.193 | 0.0076 | 0.412 |
44 | 37 | 0.173 | 0.0068 | 0.404 |
46 | 37 | 0.173 | 0.0068 | 0.379 |
48 | 37 | 0.173 | 0.0068 | 0.356 |
50 | 37 | 0.173 | 0.0068 | 0.335 |
60×50 | 36 | 0.193 | 0.0076 | - |
60×50 | 37 | 0.173 | 0.0068 | - |
60 | 37 | 0.173 | 0.0068 | 0.25 |
70 | 39 | 0.132 | 0.0052 | 0.231 |
80 | 40 | 0.122 | 0.0048 | 0.196 |
90 | 41 | 0.112 | 0.0044 | 0.17 |
100 | 42 | 0.012 | 0.004 | 0.152 |
120×108 | 43 | 0.091 | 0.0036 | - |
120 | 44 | 0.081 | 0.0032 | 0.131 |
140 | 46 | 0.061 | 0.0024 | 0.12 |
150 | 46 | 0.061 | 0.0024 | 0.108 |
160 | 46 | 0.061 | 0.0024 | 0.098 |
180 | 47 | 0.051 | 0.002 | 0.09 |
200 | 47 | 0.051 | 0.002 | 0.076 |
Features:
Physical properties: excellent anti-wear property and rigidity, high durability and best tensity, withstand high temperature and harsh work conditions, etc.
Chemical properties: acid and alkali resistance, rust resistance, salt solutions resistance, etc.
Mechanical properties: environmental protection, good molding, easy installation and cleaning, accurate filtration precision, increase the equipment's ety and life span, etc.
Applications:
Copper filter disc, the same as sintered filter disc, is widely used in sieving diversified pellet, powder, liquid and gas. And it is mainly used in petroleum industry, chemical industry, food making industry, pharmaceutical industries and other filtration from all walks of life.
Used in home: air conditioning, smoke lampblack machine, dehumidifier, dust collector, etc.
Used in oil filter: edible oil filter, petroleum refining, hydraulic oil, etc.
Used in chemistry: chemical fiber, etc.
Used in other fields: textile industries, polyester slice, rubber, medicine, humidity sensor, flammable gas industry, etc.
