Product Details
Features High Quality And Filtration Capacity. Product Name Bowl Shaped Filter
Material Stainless Steel 304, 316, Titanium, Brass Wire Mesh. Weaving Plain Weave, Twill Weave, Dutch Weave.
Layers Single,double And Multi-layers. Shape Cap, Bowl, Etc.
Mesh Count 10 – 400. Wire Dia. 0.025–2.5 Mm
Technique Woven, Perforated Application Petroleum Chemical Industry, Oil Field Pipeline Filter, Fuel Refueling Equipment Filter, Etc
High Light

bowl shaped wire mesh filters

,

wire mesh filters high temperature resistant
Leave a Message
Product Description

Bowl Shaped Filter High Quality And High Temperature Resistant

Bowl shaped filter Introduction:



Bowl shaped filter is made of single layer metal woven mesh including stainless steel or titanium. The woven wire mesh layer and mesh count are decided by different conditions of use and purpose. Because of its big pressure resistance and long service life, bowl shaped filter is widely used in industrial fields and daily lives.

Specifications:

Specifications of bowl shaped filter
Material: stainless steel 304, 316, titanium, brass wire mesh.
Wire diameter: 0.025–2.5 mm.
Weave type: plain weave, twill weave, dutch weave.
Mesh counts: 10 – 400.
Filtration: 70% – 90%.




MaterialStainless steel wire mesh (201,304,316,316L etc), low carbon iron wire,copper wire,as you requirement.
Mesh Count1-500 Mesh
Wire Diameter0.025mm-0.64mm
Weaving TypePlain weave,twill weave,dutch weave.
ShapeCap,bowl,etc.
LayerSingle,double and multi-layers.
FeaturesFilter cap is made of single layer or multi-layer metal mesh. The metal mesh layer and mesh count are decided by different conditions of use and purpose. With high concentricity rate, big pressure resistant, stainless steel material,no burr, long service life.
ApplicationFilter cap can be used in petroleum chemical industry, oil field pipeline filter, fuel refueling equipment filter, water treatment equipment filter, pharmaceutical and food processing field etc.



Orders for a bowl shaped filter should include the following information.
For example:
Two small bowl shaped filters are measured by a ruler and their diameters are about 9 mm.
Stainless steel 304 bowl shaped Filters for Pressure regulators.
Item: SST Mech Filters for Pressure regulators
Material: 304.
Outer diameter top: 9.25+/-0.25 mm.
Outer diameter bottom: 8.5+/-0.25 mm.
Height: 2.5+/-0.25 mm.
Mesh: 40.
Wirediameter: 0.23 mm.
Weave type: Plain weave.


Features & benefits:


Acid and alkali resistant.
High and low temperature resistant.
Fireproof, waterproof anti-static.
High quality and filtration capacity.
Long service life.


Applications:


In the industrial fields, bowl shaped filter can be used in petroleum chemical industry, oil field pipeline filter, fuel refueling equipment filter, water treatment equipment filter, pharmaceutical and pressure regulators.
In daily lives, bowl shaped filter can prevent indrawing picadura and tobacco ashes going out. Besides, it can prevent the burning of tobacco into the pipe. The bowl shaped filter can prevent the formation of dottle, a wet and sour clump of tobacco that can potentially ruin a pipe.

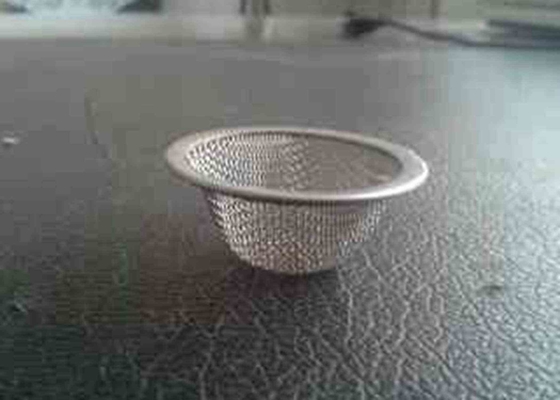

The bowl shaped filter is plain weaved by stainless steel wires.
Bowl Shaped Wire Mesh Filters High Temperature Resistant 2

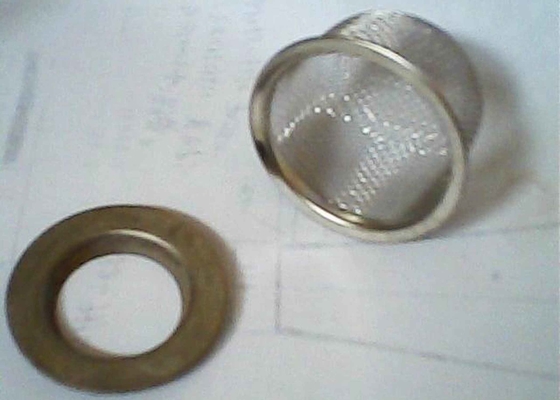

Several bowl shaped filters are made from brass woven mesh and brass edge.

Packing:


Bowl Shaped Wire Mesh Filters High Temperature Resistant 4
