Ring Stainless Steel Wire Cloth Discs For Filtration Cleanable And Reusable

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Cleanable, Reusable. Product Name Ring Filter Disc
Material Stainless Steel, Copper, Brass, Aluminium. Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Oval, Also Can Be Customized Layers Single And Mulit Layer
Inner Diameter 18–250 Mm Outer Diameter 50–350 Mm
Filtration Accuracy 2–1000 Microns. Application Screening And Separation In Food, Mine, Coal, Medicine, Glass, Petrochemical Industry.
High Light

ring stainless steel wire cloth discs

,

cleanable stainless steel wire cloth discs

,

reusable stainless steel mesh filter discs

Leave a Message
Product Description

Ring Filter Disc High Porosity And Permeability Disc For Filtration Cleanable And Reusable



Ring Filter Disc Introduction:


Ring filter disc, also called ring wire mesh filter disc or annulus/annular filter disc, is made of single or multi-layer woven mesh in plain, twill or dutch weave type and it has an ring shape. Ring filter disc can be made from different kinds of materials such as stainless steel, aluminium, copper or brass. Because of its high porosity, permeability and anti-acid, ring filter disc is widely applied for gas, liquid filtration as well as other medium separation in pharmaceutical, petrochemical and food industry.


Specification


Item: ring filter disc.
Materials: stainless steel, copper, brass, aluminium.
Wire diameter: 0.1–2.03 mm
Disc thickness: 0.2–7 mm.
Filtration accuracy: 2–1000 microns.
Inner diameter: 18–250 mm.
Outer diameter: 50–350 mm.
Mesh weave type: twill weave (635 meshes), plain weave (up to 400 meshes), dutch weave (3200 mesh).

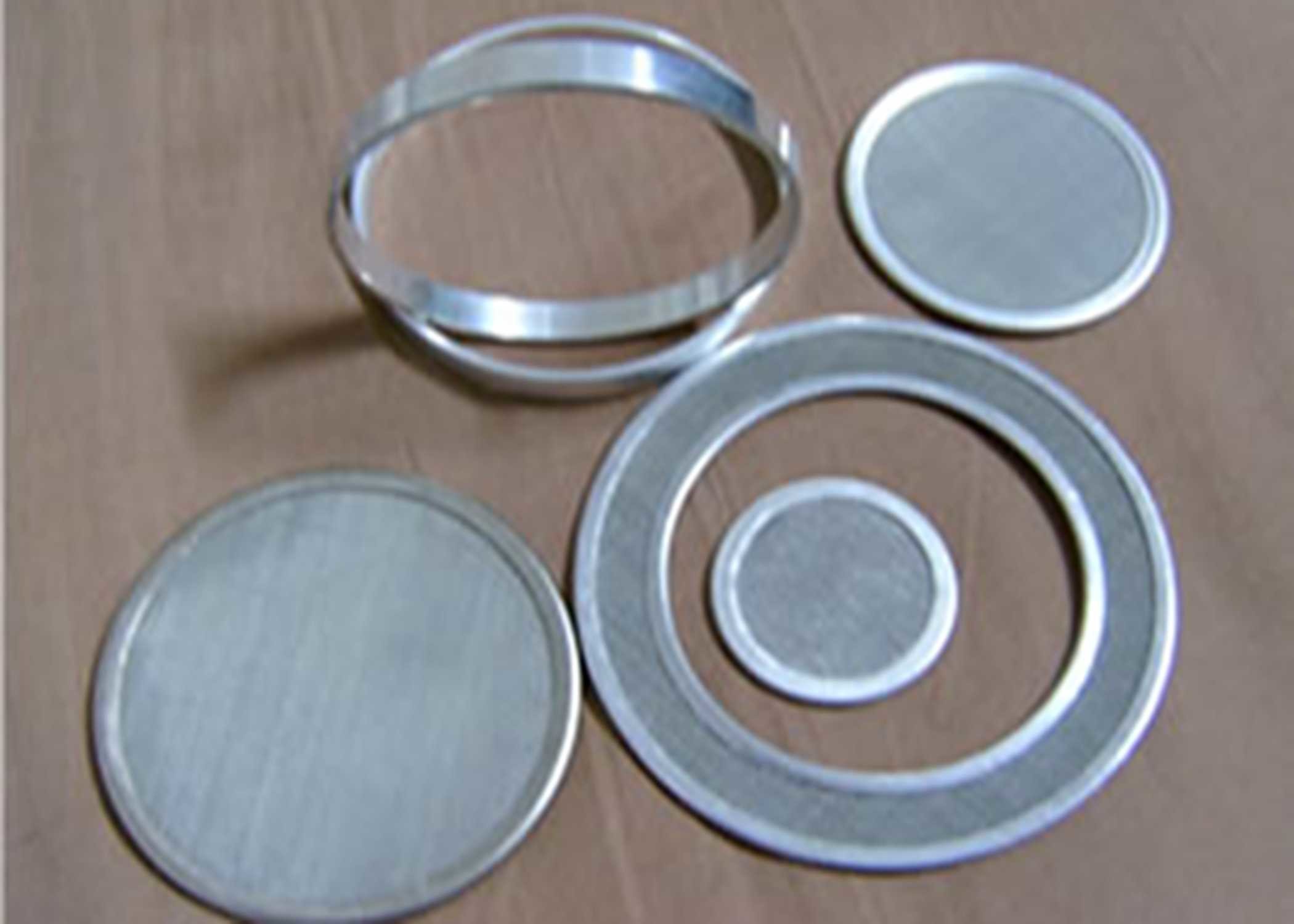

Circular Shape Wire Mesh Disc
Material Stainless Steel, Mild Steel, Copper/ Brass, Aluminum
Weave Pattern Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave
Form Punch press, edging.
Layer Single Layer, Double Layer, Multi-Layer
Size: 40*20, 50*18, 65*30, 66*24, 74*46, 90*30, 90*45, 125*60, 155*70, 160*60, 160*90, 175*90, 175*110, 181*103, 216*116, etc.
Applications Marine, Diesel, Oil lubrication system filter, etc.

Other specifications as your requests.



Features:



High temperature, pressure resistance.
High porosity, permeability and filtration flow velocity.
High filtrating rate and tenacity.
Alkali, acid and corrosion resistance.
Cleanable, reusable.
Long service life.



Applications:



Screening and separation in food, mine, coal, medicine, glass, petrochemical industry.
Used in absorption, evaporation and filtration of plastic and rubber processing machinery.
Used as an air filter in cars and trucks.
Used in the filtration of high molecular polymer hydraulic oil, drugs.
Used for gas, liquid filtrating and other medium separation.

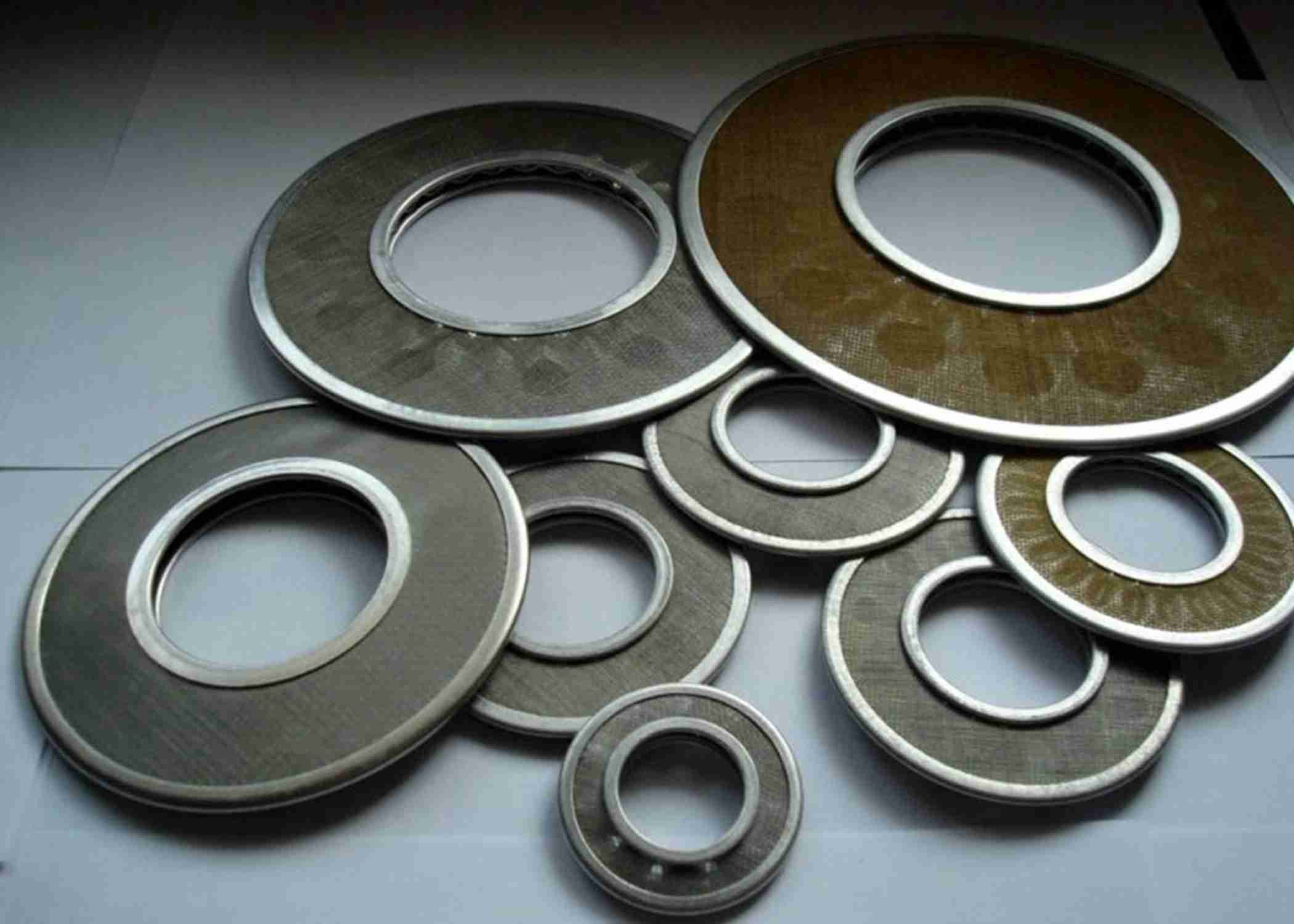

Ring Stainless Steel Wire Cloth Discs For Filtration Cleanable And Reusable 0

The ring filter disc is composed of copper wire mesh and perforated metal ring.

A big ring filter disc is leaning on a smaller one.

A multilayer fine meshes stainless steel ring filter disc.

Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
