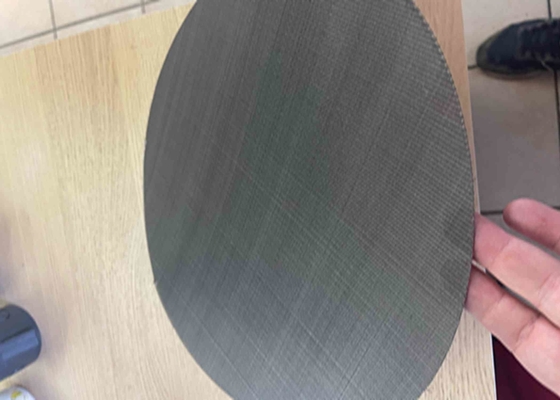

0.12mm To 0.60mm Wire Mesh Filters 10 To 60mesh Twill Weave

  • 0.12mm To 0.60mm Wire Mesh Filters 10 To 60mesh Twill Weave
  • 0.12mm To 0.60mm Wire Mesh Filters 10 To 60mesh Twill Weave
  • 0.12mm To 0.60mm Wire Mesh Filters 10 To 60mesh Twill Weave
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Uniform Mesh Holes. Product Name Black Wire Cloth Disc
Material Black Wire/ Iron Wire Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Oval, Also Can Be Customized Layers Single
Mesh Counts Up To 60 Dutch Weave Mesh Counts Up To 30 X 150
Outer Size 10 Mm - 580 Mm, Customized Application Chemical Industry, Medicine, Machinery, Metallurgy, Plastic Industry, Rubber Industry, Industrial Filtration, Etc
Highlight

0.12mm wire mesh filters

,

twill weave wire mesh filters

,

0.60mm wire mesh filter disc
Leave a Message
Product Description

Black Wire Cloth Disc 0.12mm To 0.60mm Wire 10 To 60mesh With Features With Uniform Holes



Black Wire Cloth Disc Introduction:


Black wire cloth filter disc, also named iron wire mesh filter disc or black wire mesh filter disc, is one type of the metal filter discs. Black wire cloth filter disc is made of low carbon steel and its weaving type includes plain weave, twill weave and dutch weave. With superior quality, black wire mesh filter discs are widely used in rubber industry, plastic industry, oil industry, grain industry, etc.


Material: Super quality low carbon steel wire.



Patterns: Plain weave, twill weave, plain dutch weave and twill dutch weave while plain weave is the most popular one. Wire cloth plain and twill weave are all in square opening, while Dutch weave in rectangular opening.

Black Wire Cloth 10-80mesh With Features of Uniform meshes; Smooth surface


General sizes: Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36",48",0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.



Specification


Filter material: low carbon steel.
Wire diameters: 0.12 - 0.60 mm.
Discs diameters: 10 mm - 580 mm.
Disc shapes: round, ring, rectangular, oval, crescent, semicircle, etc.
Weaving types: plain weave, twill weave, dutch weave, etc.
Filter disc layer: single layer or multiple layers.
Marginal materials: copper, aluminum, stainless steel, rubber, etc.



Commen Specifications(Sheet 1)

Black Wire Cloth
Mesh Wire Diameter (bwg) Specification Weight (kg)
18x18 0.45mm 3'x100' 50.8
20x20 0.35mm 3'x100' 34.1
22x22 0.30mm 3'x100' 27
24x24 0.33mm 3'x100' 36.4
26x26 0.33mm 3'x100' 39.4
28x28 0.30mm 3'x100' 35.1
30x30 0.30mm 3'x100' 37.6
32x32 0.20mm 3'x100' 17.8
34x34 0.22mm 3'x100' 22.9
36x36 0.22mm 3'x100' 24.2
38x38 0.22mm 3'x100' 25.6
40x40 0.20mm 3'x100' 22.3
42x42 0.17mm 3'x100' 16.9
44x44 0.17mm 3'x100' 17.7
46x46 0.17mm 3'x100' 18.5
48x48 0.17mm 3'x100' 19.3
50x50 0.17mm 3'x100' 20.1
56x56 0.17mm 3'x100' 22.5
60x60 0.17mm 3'x100' 24.2
Roll Width: 0.6-1.5meter



Commen Specifications(Sheet 2)

Black Wire Cloth Dutch Weave
Mesh Wire Diameter (mm)
12X64 0.58/0.64
14X88 0.50/0.33
24X110 0.36/0.25
30X150 0.23/0.18



Features:



Withstand high temperature and harsh conditions.
Uniform mesh holes.
Neat and flat mesh surface.
Long service life.



Applications:



Black wire cloth filter discs, the same as stainless steel filter discs and sintered filter discs, are mainly used in chemical industry, medicine, machinery, metallurgy, plastic industry, rubber industry, industrial filtration, petroleum filtration, grain industry filtration, etc.

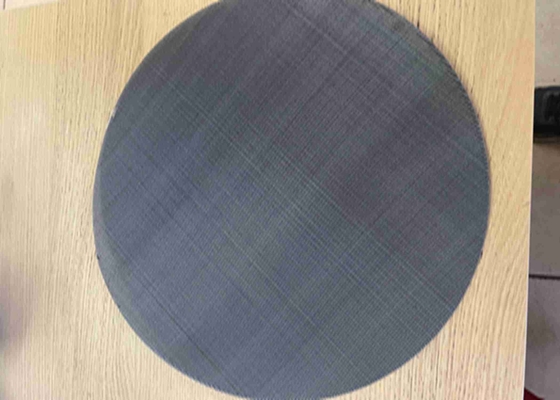

A round black wire cloth filter disc with spot welding.

Three black wire cloth filter disc with different diameters..

An abnormal black wire cloth filter with spot welding.
