Multi Layers 316L Wire Mesh Disc For Extrusion Machine In Pet Film

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Precise Wire Mesh Filtration Product Name Filter Disc Multi Layers
Material Stainless Steel 304, 316, 304L, 316L, Galvanised Mild Steel, Etc Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Oval, Also Can Be Customized Layers Multi Layers
Mesh Counts Up To 635 Dutch Weave Mesh Counts Up To 325 X 2300
Outer Size Customized Application Extrusion Machine In PET Film Application
High Light

multi layers 316l wire mesh disc

,

extrusion machine wire mesh disc

,

extrusion machine wire mesh filter disc

Leave a Message
Product Description

Stailess Steel Filter Disc Multi Layers For Extrusion Machine In PET Film



Wire Mesh Introduction



Our wire mesh stainless steel filters are useful in a wide range of applications that require a variety of openings. These stainless mesh filters can be used in conjunction with perforated metal and expanded metal. Stainless wire mesh filters are ideal for filtration used in adverse environmental conditions. We fabricate custom made to order stainless steel filters of varying sizes in single or multiple layers of woven wire mesh. The stainless-steel weaving styles that are available include plain, twill, plain dutch, and reverse dutch twill weaves. These wire mesh filters can be stamped to size, sintered, soldered, welded, and rolled to size.



Layer: multi-layer



Materials Applied: Stainless steel wire mesh, wire cloth, brass wire mesh, galvanized square wire mesh, etc.



Features: Max Temp/Differential pressure: 3000 PSI / 750. F



Wire mesh can be custom fabricated to any shape or application
Easily workable
Wire mesh can be stamped or cut to size
Wire mesh can be rolled, welded, sintered, and soldered
Stainless steel filters can have custom flanges
Variety of mesh openings available
Many material types available



Applications of Filter Discs: Filter discs are mainly used in the absorption, evaporation and filtration process in petroleum, chemical, medicine, metallurgy, machinery, ship and automobiles to delete the mist drop or liquid foam or used as air filter in cars and trucks.



Aerospace and oil/gas industries
Solvents, paints, water
Filtration, sifting, sizing
Vents
Baskets
Strainers
Faucet Screens
Insect Screens
Decorative wire mesh grilles
Guards
Decorative/craft applications





Specifications of SS wire mesh in Filters



Stainless Steel Wire Mesh
mesh/inch wire diameter aperture mesh/inch wire diameter aperture
mm mm mm mm
2mesh 1.8 10.9 60mesh 0.15 0.273
3mesh 1.6 6.866 70mesh 0.14 0.223
4mesh 1.2 5.15 80mesh 0.12 0.198
5mesh 0.91 4.17 90mesh 0.11 0.172
6mesh 0.8 3.433 100mesh 0.1 0.154
8mesh 0.6 2.575 120mesh 0.08 0.132
10mesh 0.55 1.99 140mesh 0.07 0.111
12mesh 0.5 1.616 150mesh 0.065 0.104
14mesh 0.45 1.362 160mesh 0.065 0.094
16mesh 0.4 1.188 180mesh 0.053 0.088
18mesh 0.35 1.06 200mesh 0.053 0.074
20mesh 0.3 0.97 250mesh 0.04 0.061
26mesh 0.28 0.696 300mesh 0.035 0.049
30mesh 0.25 0.596 325mesh 0.03 0.048
40mesh 0.21 0.425 350mesh 0.03 0.042
50mesh 0.19 0.318 400mesh 0.025 0.0385
Width of Stainless Steel Wire Mesh: 0.6m-6.0m

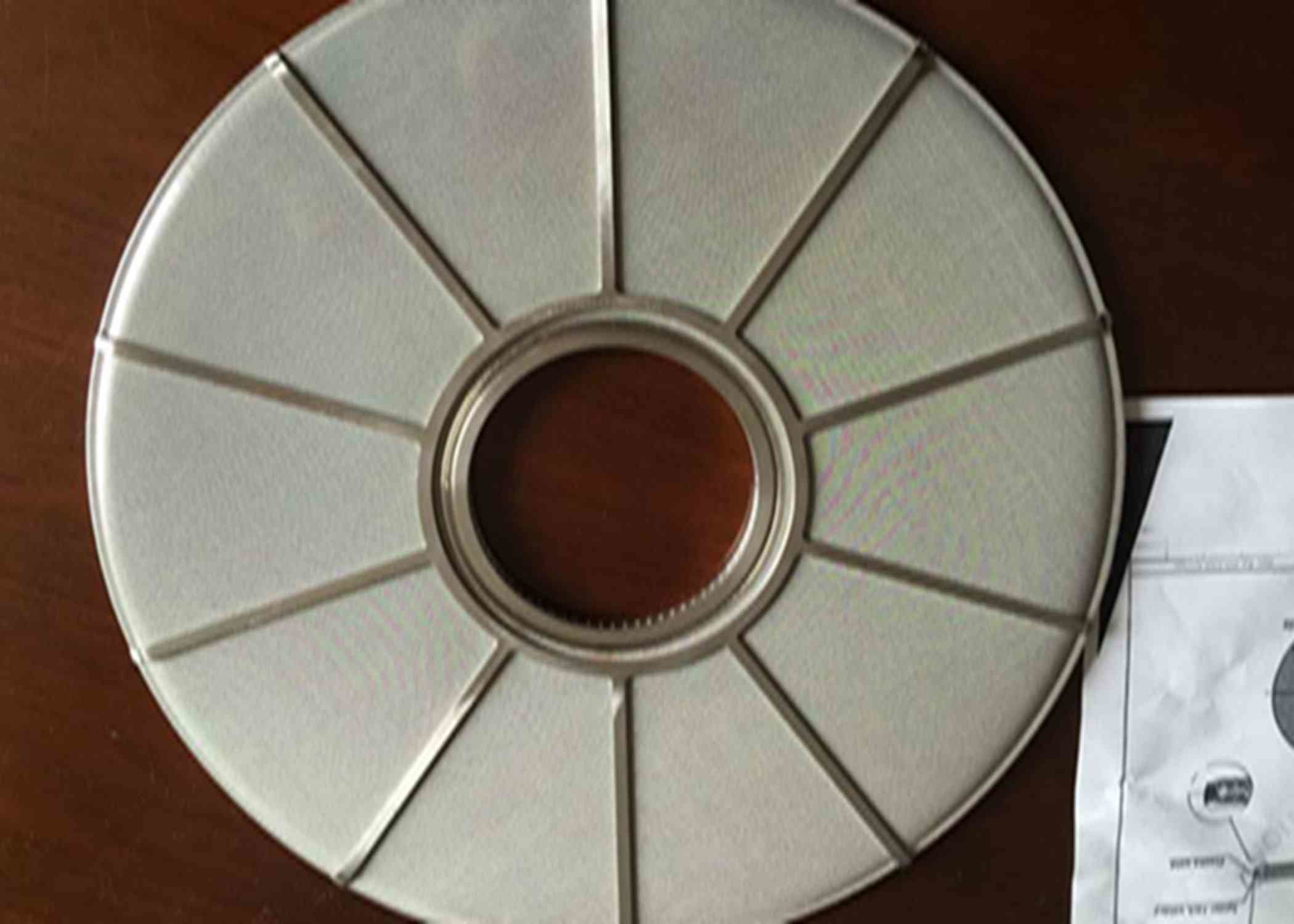

SUS 316L Filter Disc Multi-layers With Grade For Extrusion machine in PET Film



Detailed drawing for reference:

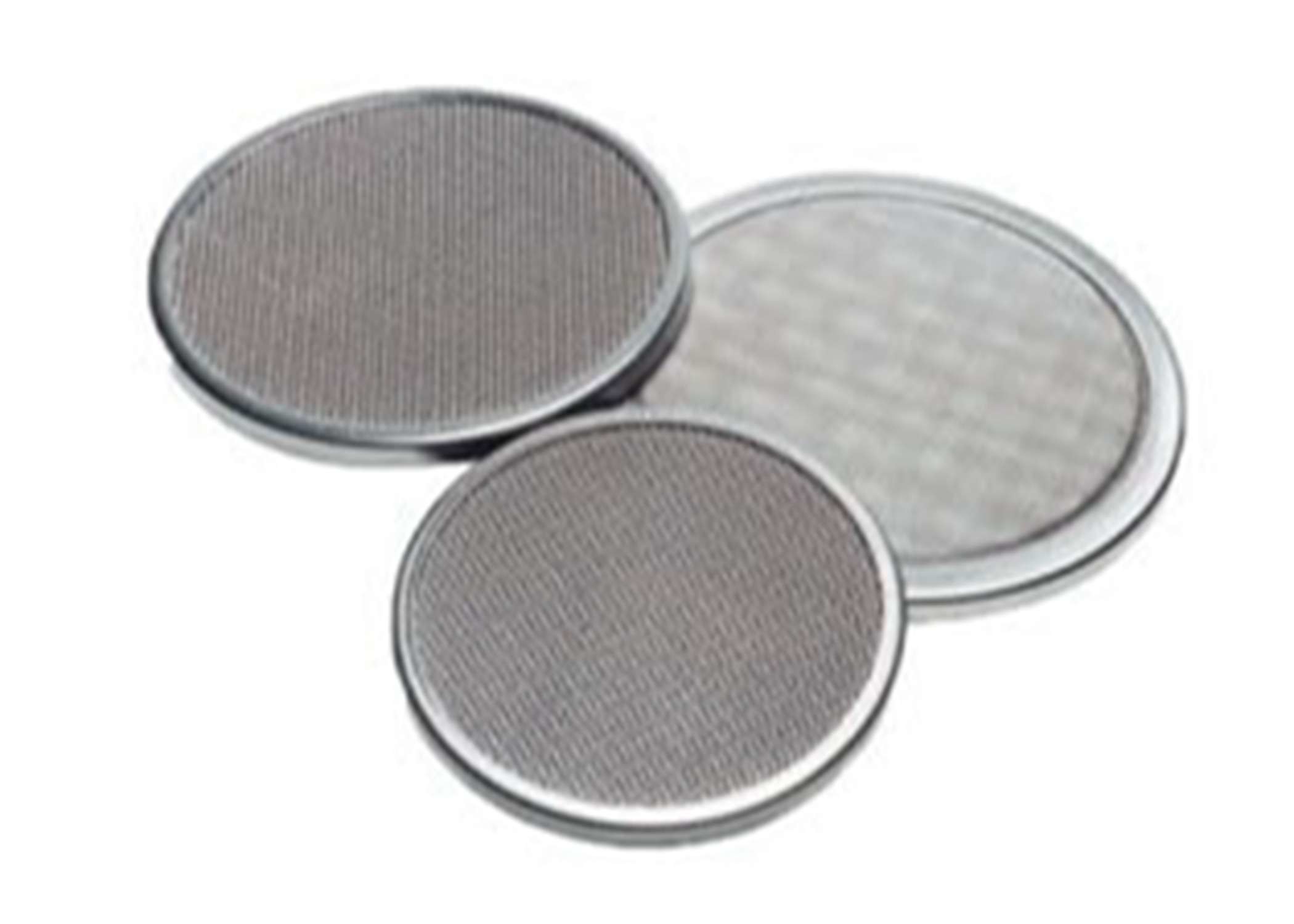

SUS 316L Filter Disc Multi-layers With Grade For Extrusion machine in PET Film

Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
