Stable Openings Expanded Metal Lath For Internal And External Plaster Work

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Features Cheaper Than Other Materials Product Name Galvanized Steel Expanded Metal Mesh
Material Mild Steel, Low Carbon Steel, Iron Surface Galvanized Or Pvc Coated
Pattern Raised Type, Flattened Pattern Hole Pattern Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes.
Thickness 0.5 To 8mm Width 0.6m To 2.2m
Length 30m, 50m, Etc Application Widely Used Type In Protective, Decorative And Other Applications.
High Light

stable openings expanded metal lath


external plaster work expanded metal lath


internal plaster work diamond lath

Leave a Message
Product Description

Expanded Metal Lath Stable Openings Used For Internal And External Plaster Work


Expanded metal Lath Mesh Introduction:


Expanded metal lath acts as a versatile base for cementing plaster walls, ceilings for internal and external applications, so it has another name: plaster mesh. It is manufactured from prime quality steel sheet which is slit and stretched to form large number of small diamond openings, providing more plaster keys than any other lathing material.


As is known to us all, cracks of buildings are usually caused by seasonal changes in humidity. To avoid cracks that may cause a lot of trouble, expanded metal lath should be taken into account when plastering walls, floors or ceilings. It can be used for absolutely all flat or curved surfaces of concrete, brick or wood, reinforcing the plastering materials to prevent cracks.



Material: stainless steel, galvanized steel.

Thickness: 0.5 mm - 1.6 mm.

Design sizes (mm): 7 × 15, 8 × 20, 9.2 × 28.6, 12 × 30, 16 × 40, 17 × 45, 18 × 50.

Classification: according to different purposes, expanded metal lath comes in four types - sheet lath, coil lath, corner lath, strip lath.

Size examples:

Sheet sizes (width × length): 70 × 250 (cm).
Coil lath:
(Small coil) Width: 10 cm, 15 cm, 20 cm, length: 50 cm - 100 cm.
(Large coil) Width: 1.0 m - 2.5 m, length: 10 m - 30 m.
Corner lath: width: 5 cm × 5 cm, 7.5 cm × 7.5 cm, length: 250 cm.
Strip lath: width: 10 cm, 15 cm, length: 250 cm.


Self-Furred Diamond Mesh Lath Weight per Square Yard
Type Finish Sheet Size Pcs per Bundle Sq. Yards per Bundle
1.75 lbs. Glavanized 27" x 96" 10 20
2.5 lbs. Glavanized 27" x 96" 10 20
3.4 lbs. Glavanized 27" x 96" 10 20

Other specifications according to your requirements.

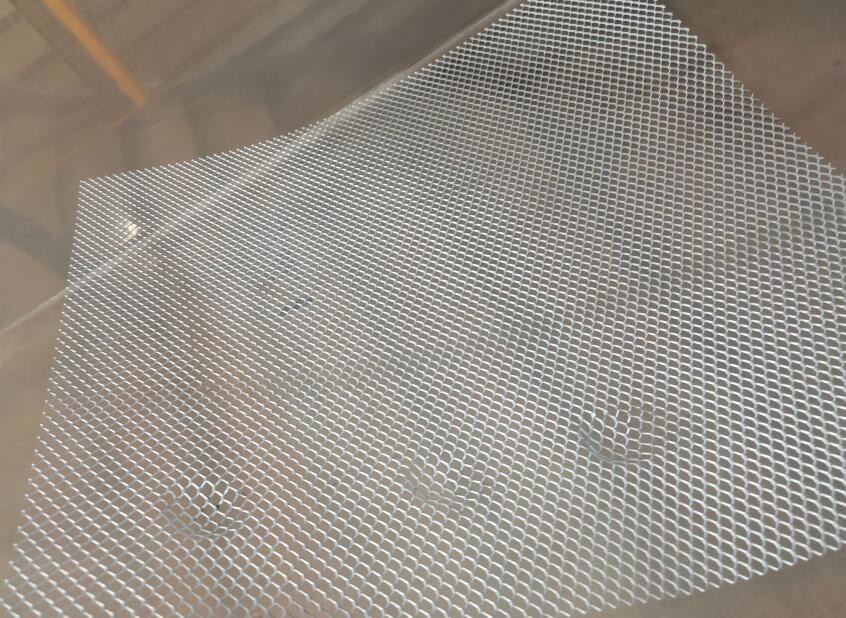

Galvanized Expanded Metal Mesh, SWD4mm*LWD: 8mm diamond shape, Thickness: 0.5mm





It can be used for wall, ceiling, floor construction.
Stable openings for not easily moved by external factors.
Working with plaster for anti-shock and anti-crack.
Extensive range of options to suit any application you may have.


Applications of steel expanded metal sheet:


Expanded metal lathing is widely applied to guard wall of machinery, partition, cable shelves, window of cars, baskets, enclosures, banisters, protection walls, electric appliance, furniture, cement straighten materials, and other aspects.



Stable Openings Expanded Metal Lath For Internal And External Plaster Work 1

Stable Openings Expanded Metal Lath For Internal And External Plaster Work 2

Stable Openings Expanded Metal Lath For Internal And External Plaster Work 3

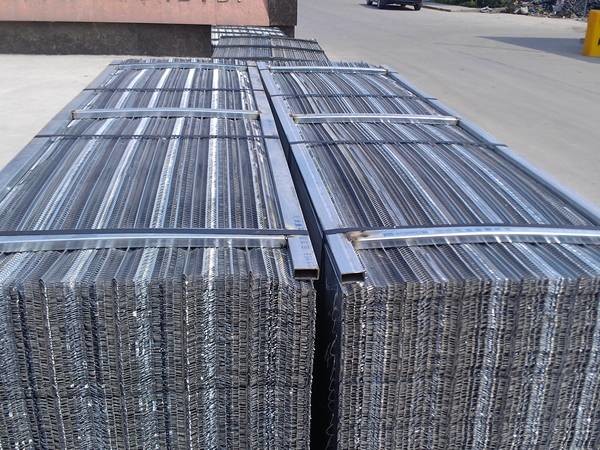

Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type


Stable Openings Expanded Metal Lath For Internal And External Plaster Work 4
