Light Weight Decorative Aluminum Expanded Metal Mesh Cladding

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features It Has Light Weight For Easy Transportation. Product Name Aluminum Expanded Metal Mesh
Material Pure Aluminum Plate, Aluminum Alloy Plate(1050, 5052, 5056) Surface Bright Silver
Pattern Raised Type Hole Diamond
Thickness 0.5 To 8mm Width 600mm To 2000mm
Length 600mm To 4000mm Application Mainly Used For Aesthetic Purposes Such As Ceiling, Stadium Partitions And Shelves
High Light

light weight aluminum expanded metal mesh

,

cladding decorative aluminum expanded metal mesh

,

lightweight expanded aluminum metal mesh cladding

Leave a Message
Product Description

Aluminum Expanded Metal Light Weight For Easy Transportation Mainly Used As Decorative



Aluminum expanded metal Mesh Introduction:



Aluminum expanded metal is made from solid aluminum sheet that has been simultaneously slit and stretched, forming non-raveling mesh with uniform diamond shaped openings. It is lighter but more rigid than an equal weight of solid aluminum sheet. It won't unravel and could hold its shape for many years under normal circumstances. What makes aluminum expanded metal popular is that it's economical and versatile.



Aluminum is silver-colored, ductile and low density that finds use in a wide variety of commercial applications. It can be strengthened by adding appropriate alloying elements such as Cu, Mg, Mn, etc. 3003 aluminum is the most widely used for it has good corrosion resistance and a highly polished finish, which makes it an attractive choice for decoration applications. Common uses of 303 aluminum expanded metal involve fire screen, ventilation, security mesh, ceiling tiles, filter screen, etc. Other types of aluminum alloys include 5005, 5052, etc.



Specifications:



Specification of Expanded Metal Mesh
Sheet Thickness Opening in Width Opening in Length Stem Roll Width Roll Length Weight
mm mm mm mm kg/m2
0.5 2.5 4.5 0.5 0.5 1 1.8
0.5 10 25 0.5 0.6 2 0.73
0.6 10 25 1 0.6 2 1
0.8 10 25 1 0.6 2 1.25
1 10 25 1.1 0.6 2 1.77
1 15 40 1.5 2 4 1.85
1.2 10 25 1.1 2 4 2.21
1.2 15 40 1.5 2 4 2.3
1.5 15 40 1.5 1.8 4 2.77
1.5 23 60 2.6 2 3.6 2.77
2 18 50 2.1 2 4 3.69
2 22 60 2.6 2 4 3.69
3 40 80 3.8 2 4 5
4 50 100 4 2 2 11.15
4.5 50 100 5 2 2.7 11.15
5 50 100 5 1.4 2.6 12.39
6 50 100 6 2 2.5 17.35
8 50 100 8 2 2.1 28.26



Other specifications as your requests.




Materials:



Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)


Surface Treatment: hot-dipped, electrol galvanized, pvc-coated.



Features of aluminum expanded metal sheet:



Lightweight. It is the most important feature of aluminum expanded metal sheet. The lightweight expanded metal sheet is widely used in the decorative applications.
Rigid and solid. Though the aluminum expanded metal is lightweight, but it is still solid no matter in the structure or in the service life.
Corrosion and rust resistance. The aluminum expanded metal sheet will form a layer of oxidation film, which can prevent expanded metal sheet from corrosion and rust.
Economical. The aluminum expanded metal sheet has better corrosion and rust resistance but the cost is lower than the stainless steel expanded metal sheet, so it is the economical choice.
Various colors for choice. The aluminum expanded metal sheet can be coated in various colors, including red, white, golden and any other colors you want. This make it be used in more applications.



Applications of expanded metal sheet:



The openings formed in fabricating process allow air, sound, light and heat to pass through. The decorative patterns are mainly used for aesthetic purposes such as ceiling, stadium partitions and shelves. Aluminum expanded metal is versatile, and easy found in the following applications:

Filter screens.
Building cladding.
Bird screens.
Partitions / enclosures.
Ventilation parts for air conditioners.
Louvers.
Metal cabinet shelves.
Amusement equipment.
Security mesh of doors and windows.

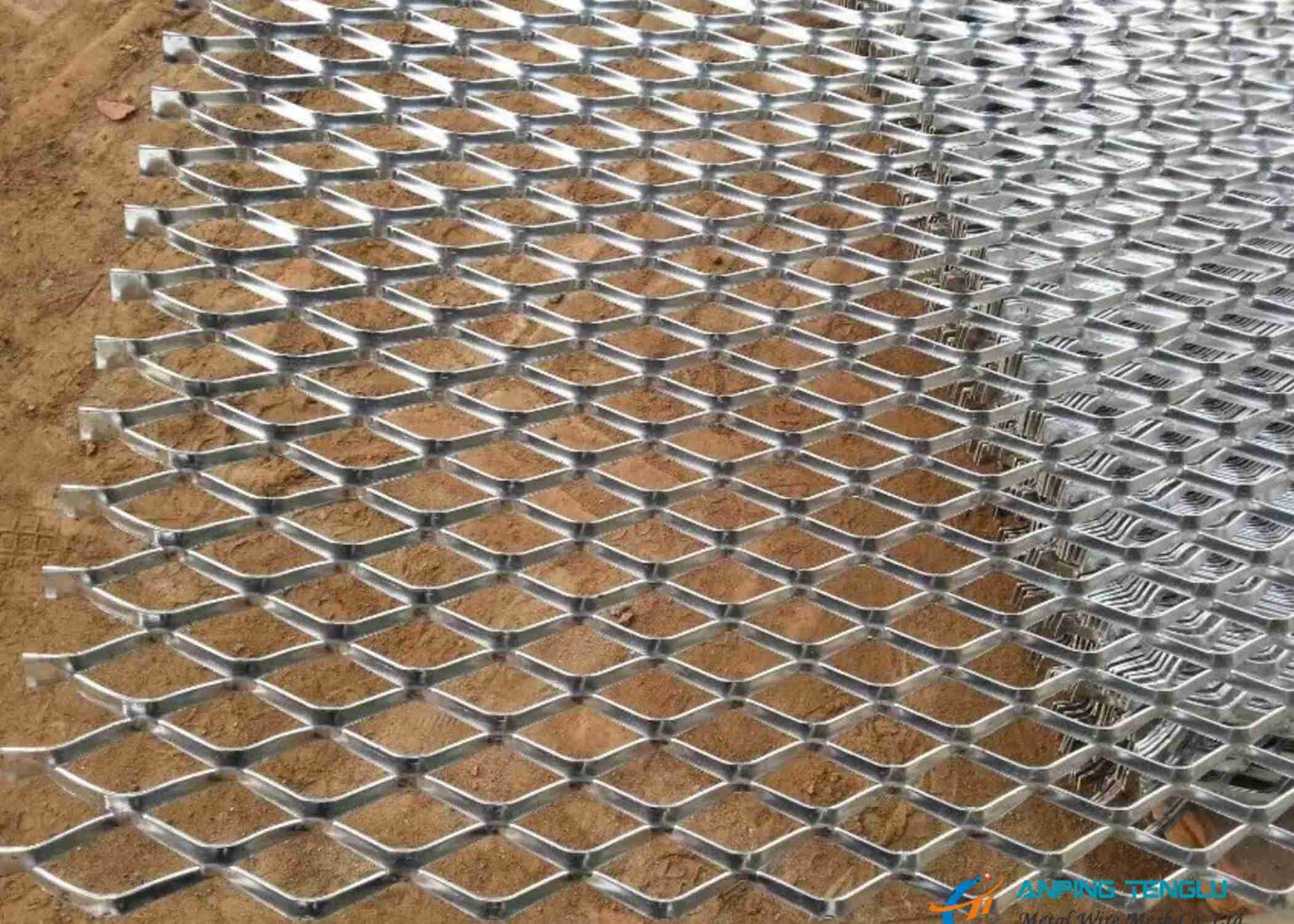

Light Weight Decorative Aluminum Expanded Metal Mesh Cladding 0

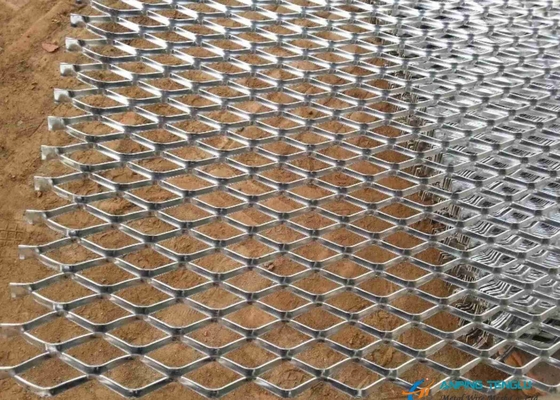

Light Weight Decorative Aluminum Expanded Metal Mesh Cladding 1









Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type

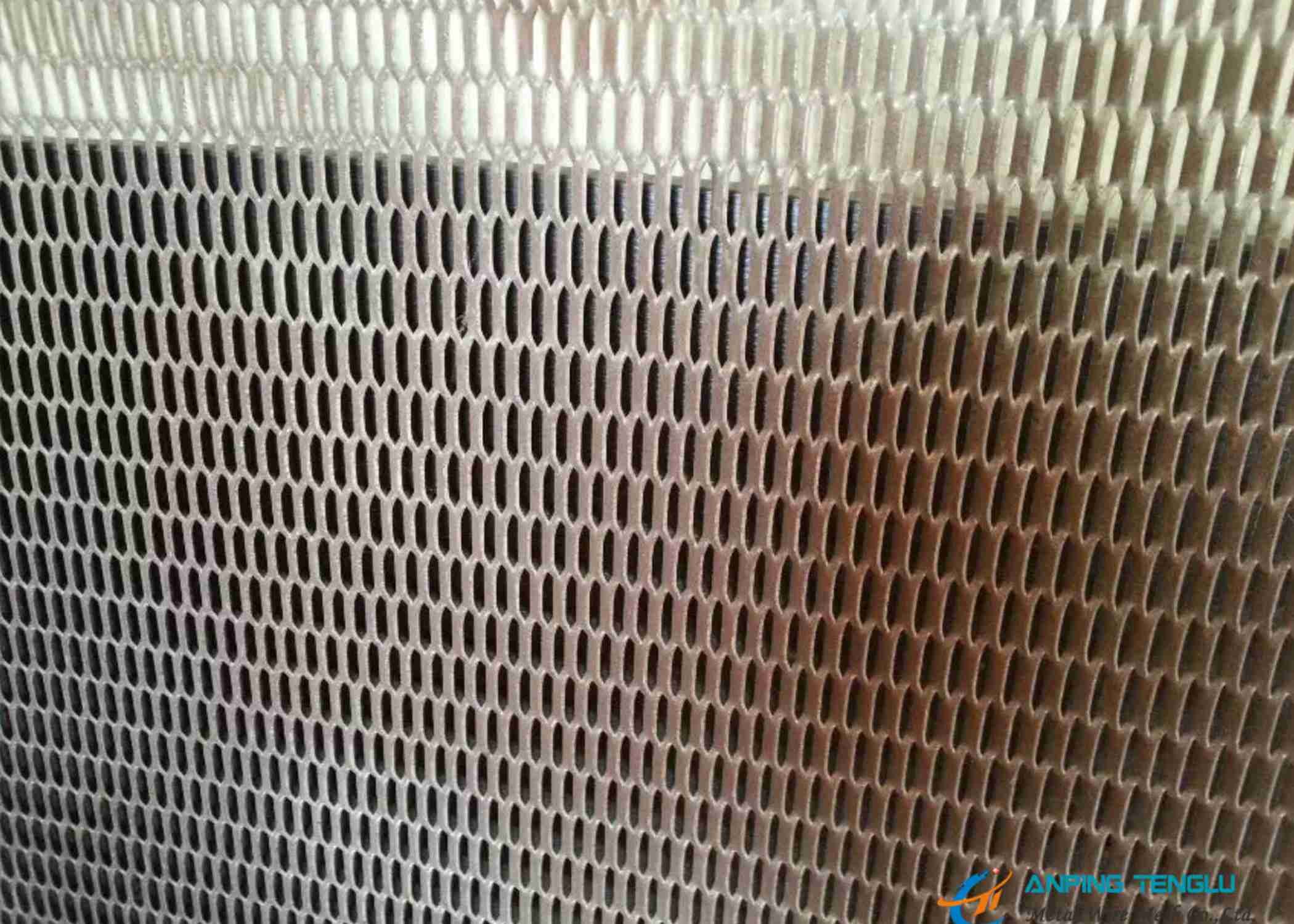

Light Weight Decorative Aluminum Expanded Metal Mesh Cladding 2
