Diamond Flattened Expanded Metal Wire Mesh Small Hole 8mm Thick

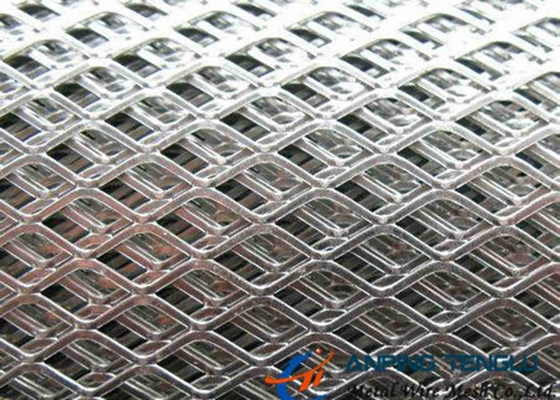

  • Diamond Flattened Expanded Metal Wire Mesh Small Hole 8mm Thick
  • Diamond Flattened Expanded Metal Wire Mesh Small Hole 8mm Thick
  • Diamond Flattened Expanded Metal Wire Mesh Small Hole 8mm Thick
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Cost Effective Way For Many Applications. Product Name Flattened Expanded Metal Mesh
Material Carbon Steel, Aluminum, Stainless Steel, Copper, Or Other Alloys. Surface Galvanized, Powder Coated, PVC Coated, Etc.
Pattern Flattened Type Hole Diamond
Thickness 0.5 To 8mm Shape Rolls Or Panels
Application Exhibition Stand, Dust Bin, Decorative Mesh, Garden Bench Or Table, Outer Layer Of Filter, Etc.
Highlight

flattened expanded metal wire mesh

,

8mm expanded metal wire mesh

,

8mm thick expanded metal mesh
Leave a Message
Product Description

Flattened Expanded Metal Mesh Cost Effective Way For Many Applications



 Flattened Expanded Metal Mesh Introduction:



Flattened expanded metal is made by passing standard expanded metal through a cold rolled reducing mill, leaving a flat and smooth surface that is similar to perforated metal. The rolling process makes the strands and bonds down, thus reducing the thickness of the metal sheet and stretching the pattern. Flattened expanded metal possesses many properties, making it a very versatile product suitable for applications across many industries, such as commercial, automobile and agricultural.





Specifications:

Material: carbon steel, aluminum, stainless steel, copper, or other alloys.
Surface treatment: galvanized, powder coated, PVC coated, etc.



Flattened Expanded Metal
Mesh Aperture Mesh Aperture Strand Width Strand Thickness Sheet Size LWD x SWD Material Type
LW (mm) SW (mm)
3.81 2.03 0.79 0.6 1250 x 1250 Mild Steel
6.85 3.56 1.3 0.9 1250 x 2500 Mild Steel
9.5 5 1.3 0.9 1250 x 2500 Mild Steel
14.22 4.8 1.85 0.9 1250 x 2500 Mild Steel
23.11 5.84 3.2 1.52 2440 x 1220 Mild Steel
24.38 7.11 2.39 1.14 2440 x 1220 Mild Steel
24.38 7.87 2.06 1.47 2440 x 1220 Mild Steel
24.38 7.62 2.08 1.14 1250 x 2500 Mild Steel
32.77 10.92 3.18 1.5 2440 x 1220 Mild Steel
33.53 12.45 2.31 1.14 1250 x 2550 Mild Steel
33.53 12.45 2.31 1.14 2440 x 1220 Mild Steel
42.93 14.22 4.6 2.69 2440 x 1220 Mild Steel & H D Galv
42.93 14.22 4.6 2.69 1250 x 2500 Mild Steel & H D Galv
39.12 18.29 4.72 2.74 1220 x 2500 Mild Steel
43.43 18.03 2.31 1.14 1250 x 2500 Mild Steel & Pre-Galv
43.18 17.27 3.23 1.45 2440 x 1220 Mild Steel
42.93 17 6 3.7 1220 x 2440 Mild Steel
77.47 27.18 6.53 2.9 2440 x 1220 Mild Steel
3.5 2.05 0.79 0.56 1250 x 1250 Pre-Galv
5 3.45 1.3 0.7 1250 x 2500 Pre-Galv
6 4 0.8 0.6 1250 x 1250 Pre-Galv
35.05 12.45 2.31 1.14 1250 x 2500 Pre-Galv
6.86 3.56 1.27 0.9 1250 x 2500 Aluminum
13.97 4.83 1.8 0.9 1250 x 2500 Aluminum
24.1 7.11 2.39 1.14 1250 x 2440 Aluminum
35.05 11.94 2.34 1.14 1250 x 2440 Aluminum
40.64 17.78 4 2.9 1250 x 2500 Aluminum
43.18 17.78 2.34 1.12 1250 x 2000 Aluminum
3.5 2.05 0.75 0.5 1250 x 1625 Stainless 430
11.7 8.5 1.5 1.5 1000 x 2000 Stainless 304
14.22 4.3 1.83 0.9 1000 x 2000 Stainless 304
14.22 4.3 1.83 0.9 1250 x 1830 Stainless 316
21 6 2.1 1.2 1250 x 2500 Stainless 304
21 9 3 1.5 1250 x 2500 Stainless 304



Shearing methods



Expanded metal shearing methods include four ways from two directions. They give you an instruction when ordering expanded metal.

End bond shearing: One end is cut on the bond parallel to the SWD, the other end usually has open diamonds.
End random shearing: The shearing direction is parallel to the SWD. The end random cut normally leaves open diamonds at the ends.
Side bond shearing: Side bond cut is made along the length of the metal sheet on the center line of the bond over the specific width.
Side random shearing: Side random shearing is cut that is parallel to the LWD dimension of the metal sheet, leaving opening diamonds.



Surface Treatment: hot-dipped, electrol galvanized, pvc-coated.





Flattened Expanded Metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal,the plate thickness will be thinner and opening will be larger.

Flattened Expanded Metal With Material Stainless Steel 304, 316, etc

Flattened Expanded Metal With Material Stainless Steel 304, 316, etc



Features:



Steel construction provides strength, welded ability and wear resistance.
Stainless steel for corrosion resistance.
Various materials and a great variety of sizes, styles for choice.
Cost effective way for many applications.
The outer layer can be coated any color for pleasing appearance.



Applications of flattened expanded metal sheet:



Shelves in shopping malls and supermarkets.
Furniture in parks and other city corners.
Wastebaskets, desk organizers, desk stays and other office supplies.
Decorative mesh in interior of buildings and hotels.
Support mesh in the expanded metal filter element.
Bicycle basket on all kinds of bicycles.
Elevator gate on the construction site.

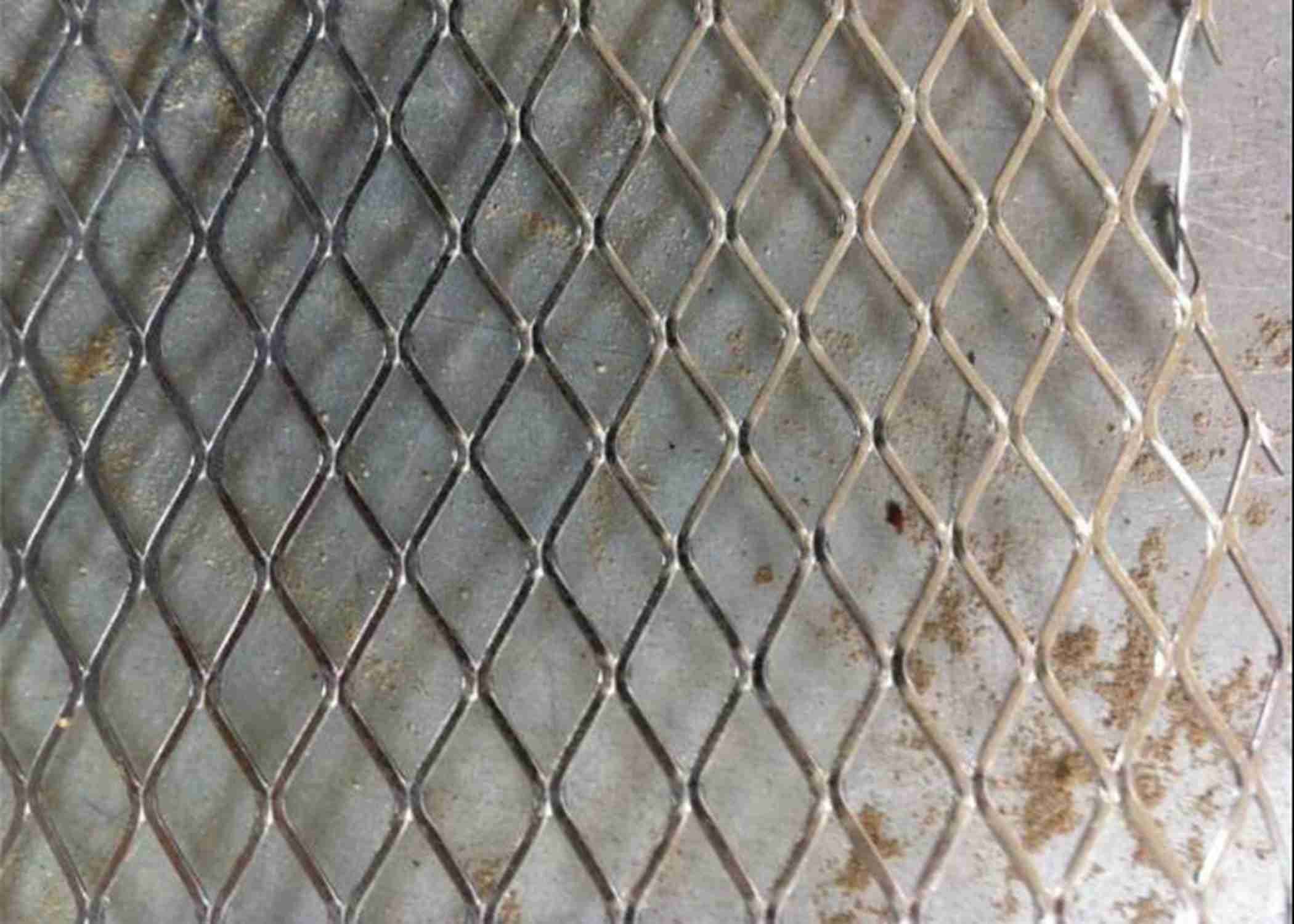

Diamond Flattened Expanded Metal Wire Mesh Small Hole 8mm Thick 2







Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type

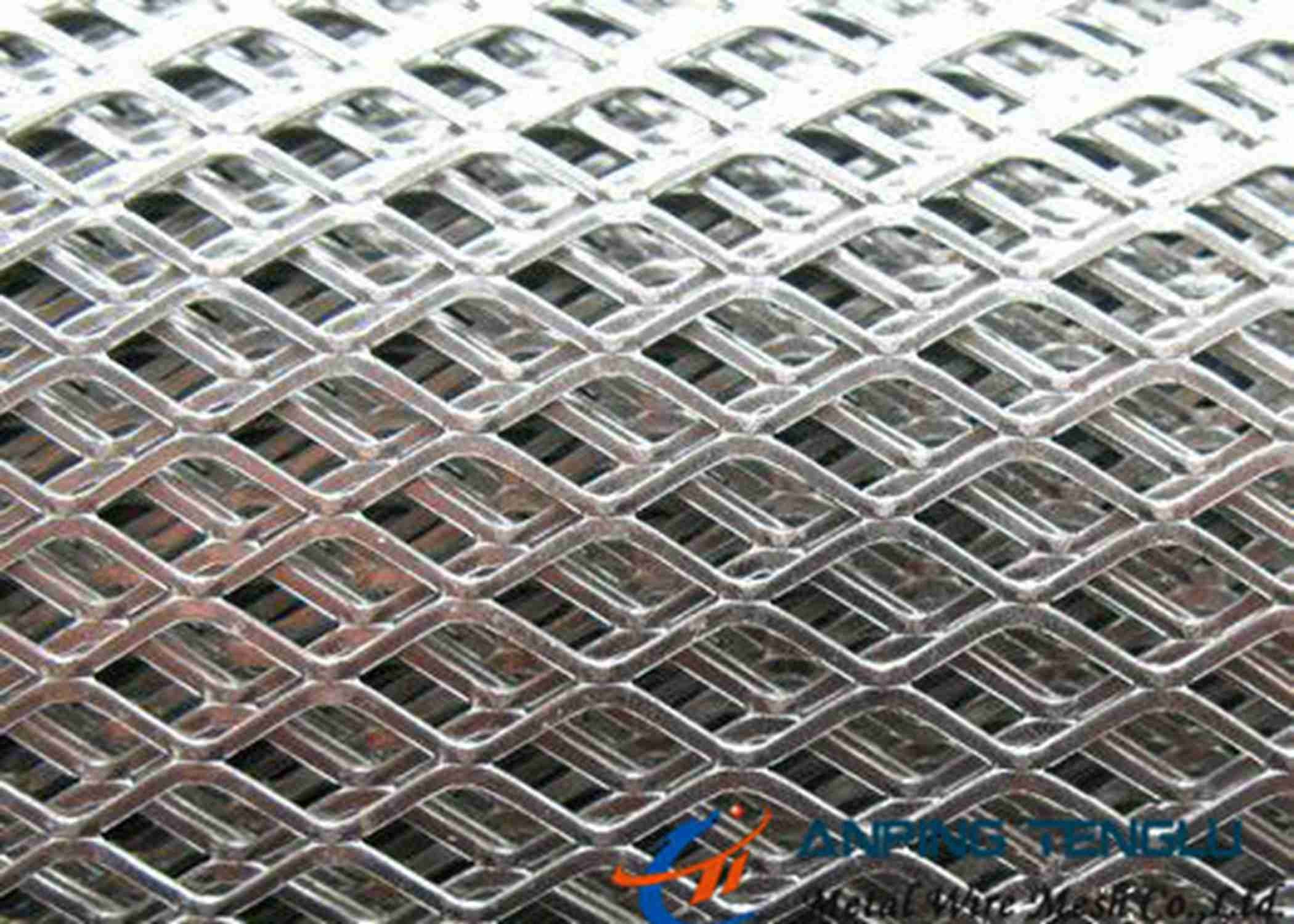

Diamond Flattened Expanded Metal Wire Mesh Small Hole 8mm Thick 3
