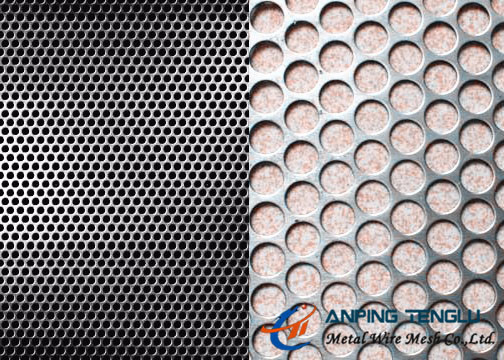

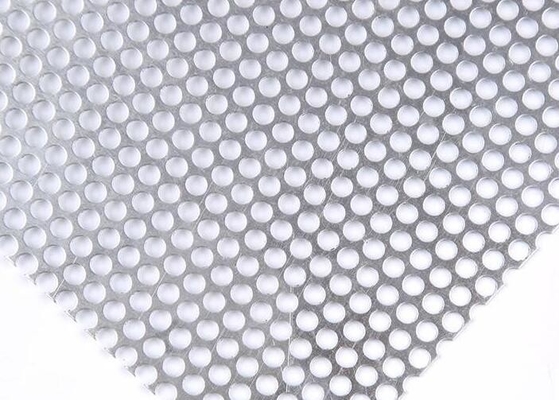

Decoration 8.0mm Thick Aluminum Perforated Mesh With High Strength
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Has Good Corrosion Resistance And Malleability. | Product Name | Aluminum Perforated Mesh |
|---|---|---|---|
| Material | Aluminum | Hole Shape | Round, Slot, Square, Hexagnoal, Etc |
| Punched | Perforated | Thickness | 0.5mm To 8.0mm |
| Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m |
| Length | 15m, 30m To 60m | Application | Decoration, Cladding, Ceiling, Guardrail, Acoustic Panel, Etc |
| Highlight | 8.0mm thick aluminum perforated mesh,high strength decoration aluminum perforated mesh,8.0mm thick perforated metal mesh |
||
Product Description
Aluminum Perforated Mesh For Decoration With High Strength Perforated Metal Mesh
Aluminum Perforated Perforated Mesh Introduction:
Aluminum panel has good reflex for visible light and heat. And aluminum perforated screen has good corrosion resistance and malleability. It is the ideal low-temperature-resistant material. Anodizing can improve the corrosion resistance and form a beautiful appearance.
Material:
1100 – It is commercially pure aluminum with a content of 99.0%. Its strength is relatively low, but has excellent ductility, formability, weldability and corrosion resistance. Anodizing, can further improve the corrosion resistance while obtain an aesthetic surface.
3003 – It is an alloy of aluminum and manganese. 3003 is the most widely used anti-rust aluminum. It has good corrosion resistance (close to 1100) to atmospheric, fresh water, sea water, food, organic acid, gasoline, neutral inorganic salt solution, dilute acid etc.
5005 – Similar to 3003. It has medium strength and good corrosion resistance, and its anodized film is brighter than 3003.
5052 – Belongs to the Al-Mg alloy and has a wide range of applications. Especially in the construction industry, it is the most promising alloy. Good corrosion resistance, excellent weldability, good cold workability, and medium strength.
2024 – Belongs to the Al-Cu-Mg alloy. High-strength hard aluminum, which is twice hard than 5052. It can be strengthened by heat treatment but not very corrosion resistant, so it is often anodized and painted or coated with aluminum to improve its corrosion resistance.
6061 – Belongs to the Al-Mg-Si alloy. It has many features: Excellent processing properties, good corrosion resistance, high toughness, no deformation after processing, easy color film, excellent oxidation effect, etc.
7075 – It is a cold-treated forging alloy with high strength and hardness, far better than mild steel. 7075 is one of the most powerful alloys in the industry, with common corrosion resistance, good mechanical properties and excellent anodic reaction, therefore, it is a typical aluminum alloy for aerospace military industry.
|
Chemical Component of Aluminum (%)
|
||||||||||
| Grade | Al min. | Si | Fe | Cu | Mn | Mg | Cr | Zn | Ti | Others |
| 1100 | 99 | 0.95 Si + Fe | 0.05–0.02 | 0.05 | – | – | 0.1 | – | 0.15 | |
| 2024 | Rem. | 0.5 | 0.5 | 3.8–4.9 | 0.30–0.90 | 1.2–1.8 | 0.1 | 0.25 | 0.15 | 0.15 |
| 3003 | Rem. | 0.6 | 0.7 | 0.05–0.20 | 1.0–1.5 | – | – | 0.1 | – | 0.15 |
| 5005 | Rem. | 0.3 | 0.7 | 0.2 | 0.2 | 0.5–1.1 | 0.1 | 0.25 | – | 0.15 |
| 5052 | Rem. | 0.25 | 0.4 | 0.1 | 0.1 | 2.2–2.8 | 0.15–0.35 | 0.1 | – | 0.15 |
| 6061 | Rem. | 0.40–0.80 | 0.7 | 0.15–0.40 | 0.15 | 0.8–1.2 | 0.04–0.35 | 0.25 | 0.15 | 0.15 |
| 7075 | Rem. | 0.4 | 0.5 | 1.2–2.0 | 0.3 | 2.1–2.9 | 0.18–0.28 | 5.1–6.1 | 0.2 | 0.15 |
| Note: Rem.=Remainder | ||||||||||
|
Mechanical Property
|
|||||
| Grade | Temper | Tensile Strength (MPa) | Yield Stress (MPa) | Elongation at Break (%) | |
| 0.25–1.25 mm | 1.26–3.0 mm | ||||
| 1100 | – | 89.6 | 34.5 | 30 | 6 |
| H12 | 110.3 | 103.4 | 4 | 12 | |
| H14 | 124.1 | 117.2 | 3 | 10 | |
| H16 | 144.8 | 137.9 | 2 | 8 | |
| H18 | 165.5 | 151.7 | 2 | 6 | |
| 2024 | – | 186.2 | 75.8 | 18 | 20 |
| T3 | 482.6 | 344.7 | 16 | 18 | |
| T4 | 468.8 | 324.1 | 20 | 19 | |
| 3003 | – | 110.3 | 41.4 | 30 | 33 |
| H12 | 131 | 124.1 | 9 | 11 | |
| H14 | 151.7 | 144.8 | 3 | 7 | |
| H16 | 179.3 | 172.4 | 3 | 5 | |
| H18 | 199.9 | 186.2 | 3 | 5 | |
| 5005 | – | 124.1 | 41.4 | 22 | 25 |
| H12 | 137.9 | 41.4 | 22 | 25 | |
| H14 | 158.6 | 131 | 5 | 9 | |
| H16 | 179.3 | 172.4 | 3 | 5 | |
| H18 | 199.9 | 193.1 | 2 | 2 | |
| H32 | 137.9 | 117.2 | 8 | 9 | |
| H34 | 158.6 | 137.9 | 6 | 8 | |
| H36 | 179.3 | 165.5 | 5 | 6 | |
| H38 | 199.9 | 786.2 | 3 | 4 | |
| 5052 | – | 193.1 | 89.6 | 20 | 21 |
| H32 | 227.5 | 193.1 | 7 | 10 | |
| H34 | 262 | 213.7 | 6 | 8 | |
| H36 | 275.8 | 241.3 | 4 | 5 | |
| H38 | 289.6 | 255.1 | 3 | 4 | |
| 6061 | – | 124.1 | 55.2 | 25 | 26 |
| T4 | 241.3 | 144.8 | 22 | 24 | |
| T6 | 310.3 | 275.8 | 12 | 17 | |
| 7075 | – | 127.5 | 103.4 | 16 | 18 |
| T6 | 572.3 | 503.3 | 11 | 12 | |
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
It has good corrosion resistance and malleability. It is the ideal low-temperature-resistant material.
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Decoration, Cladding, Ceiling, Guardrail, Acoustic panel, etc
Packing:
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
