Hd Galvanized Perforated Metal Mesh Corrosion Resistance 30m Length
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Great Corrosion Resistance | Product Name | Galvanized Perforated Mesh |
|---|---|---|---|
| Material | Hot-dip Galvanization And Electro-galvanization | Hole Shape | Round, Slot, Square, Hexagnoal, Etc |
| Punched | Perforated | Thickness | 0.5mm To 8.0mm |
| Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m |
| Length | 15m, 30m To 60m | Application | Widely Used In Construction And Decoration. |
| Highlight | hd galvanized perforated metal mesh,corrosion resistance perforated metal mesh,30m length perforated stainless steel mesh |
||
Product Description

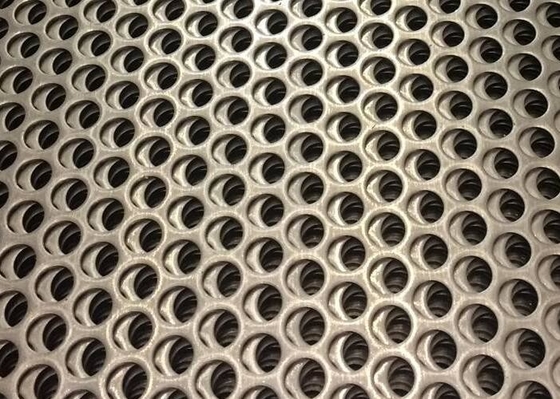

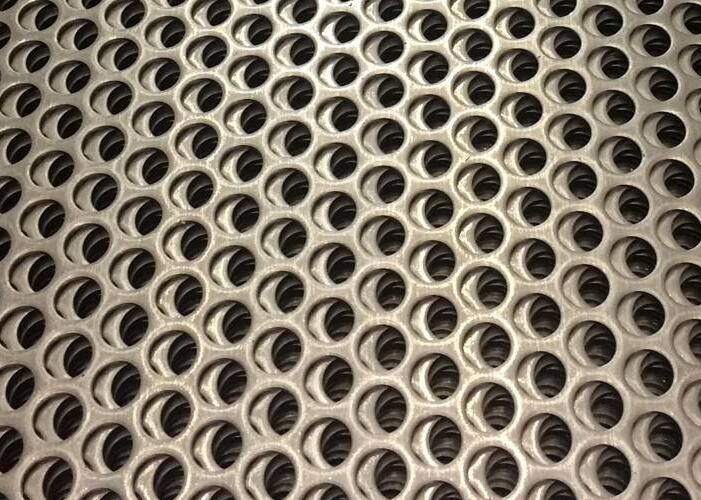

Galvanized Perforated Mesh with Great Corrosion Resistance Perforated Metal Mesh
Galvanized Perforated Mesh Introduction:
Galvanized perforated mesh is widely used in construction and decoration.
We can supply both hot-dip galvanization (HDG) and electro-galvanization (EG).
Hot-dip galvanized perforated screens are qualified with long lifespan. Large scale orders are available. It is widely used in outdoor steel structures.
Electro-galvanized perforated screens, also named as cold galvanizing, has compact and uniform zinc layer. It has good appearance, decoration and malleability.
The differences between Electro-Galvanization (EG) and Hot-Dip Galvanization (HDG):
Different coating thickness: The zinc layer of HDG is much thicker than EG.
Different zinc layer adhesion: The the zinc layer of HDG has stronger adhesion than EG.
Different surface roughness: The surface of HDG perforated mesh is smooth but not bright. The EG has the smooth surface and weak metallic luster.
Different corrosion resistant performance: HDG perforated mesh is much corrosion resistant than EG.
Different usage situation: HDG perforated screen is usually used in outdoors. The EG perforated screen is generally used indoors.
Material: Electro-Galvanization (EG) and Hot-Dip Galvanization (HDG)
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
Great Corrosion Resistance
Long lifespan.
Good appearance, decoration and malleability.
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Energy production.
Mining industry.
Steel production industry.
Waste processing.
Lorries, buses and train.
Cement production.
Automotive & Transport.
Packing:
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps

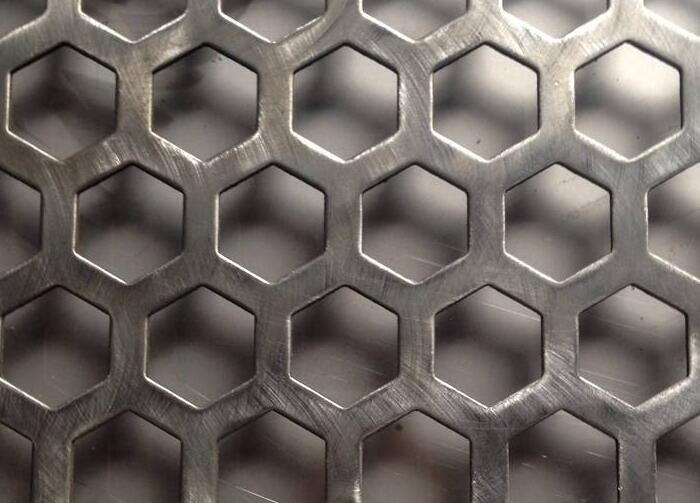

Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
