Nickel Alloy Hexagnoal Hole Perforated Mesh High Temperature Resistance

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | High-Temperature Resistance | Product Name | Nickel Alloy Perforated Mesh |
---|---|---|---|
Material | Nickel Alloy Plate | Hole Shape | Round, Slot, Square, Hexagnoal, Etc |
Punched | Perforated | Thickness | 0.5mm To 8.0mm |
Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m |
Length | 15m, 30m To 60m | Application | Chemical Industry, Aerospace, Etc |
Highlight | high temperature resistance perforated mesh,nickel alloy perforated mesh,hexagnoal hole perforated metal mesh |

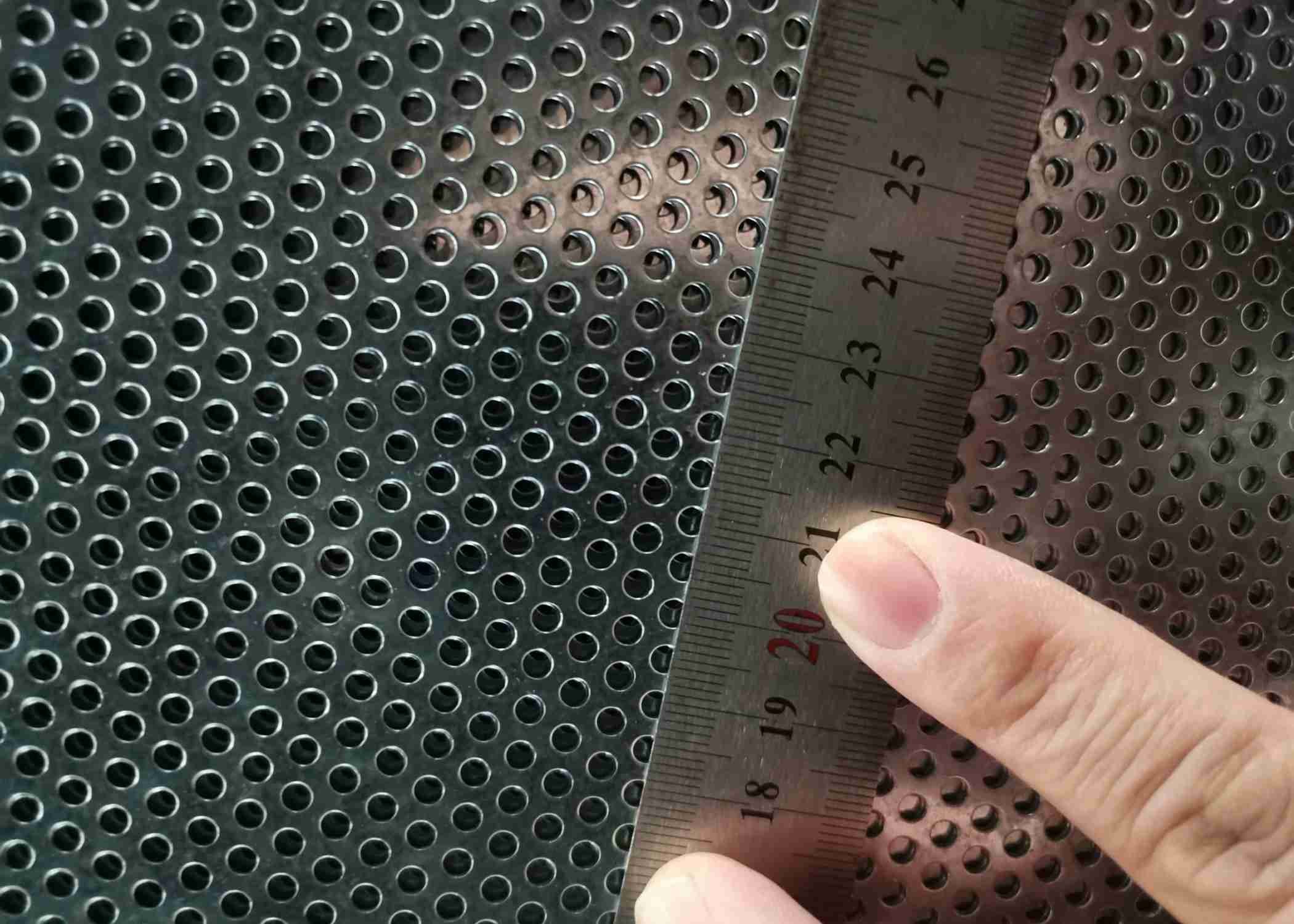

Nickel Alloy Perforated Mesh High Temperature Resistance Perforated Metal Mesh
Nickel Alloy Perforated Mesh Introduction:
Nickel alloy is high temperature and corrosion resistant. The alloy of nickel and copper is called Monel; The alloy of nickel and chromium is called Inconel.
Monel perforated screen has excellent corrosion resistance in hydrofluoric acid, fluorine gas media, hot concentrated alkali liquor, neutral solutions, water, seawater, the atmosphere and organic compounds, etc.
Common Types:
UNS N04400 (Monel 400) – A corrosion-resistant alloy with the largest amount, the most versatile and excellent comprehensive performance.
UNS N05500 (Monel K500) – In addition to excellent mechanical properties such as high strength, corrosion resistance and non-magnetic properties, it also has the same corrosion resistance of Monel 400.
Chemical Element of Monel (%)
|
||||||||||
Grade | Ni | Cu | Ti | Fe | C | Mn | Al | Si | S | |
UNS N04400 | min. | 63 | 28 | – | – | – | – | – | – | – |
max. | – | 34 | – | 2.5 | 0.3 | 2 | – | 0.5 | 0.024 | |
UNS N05500 | min. | 63 | 27 | 0.35 | – | – | – | 2.3 | – | – |
max. | – | 33 | 0.85 | 2 | 0.25 | 1.5 | 3.15 | 0.5 | 0.01 |
Mechanical Property of Monel
|
|||||
Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation at Break (0.2% offset) | Rockwell Hardness (HRB) | |
UNS N04400 | Anneal | 482–586 | 207–310 | 35–45 | 65–80 |
Cold Rolling | 690–827 | 621–758 | 2–15 | 93 min. | |
UNS N05500 | Cold Rolling + Anneal | 621–724 | 276–448 | 25–45 | 85 max.
|
Inconel perforated mesh has excellent high temperature oxidation resistance, and won’t get embrittled after repeated heating and cooling. It is well suited for extreme pressure and heat environments.
Common Types:
The most common type of Inconel alloy is UNS N06600 (Inconel 600), UNS N06601 (Inconel 601) and UNS N06625 (Inconel 625).
Chemical Component of Inconel (%) | |||||||||||||
Grade | Ni | Cr | Fe | C | Mn | Si | Cu | Al | Ti | B | P | S | |
UNS N06600 | min. | 72 | 14 | 6 | – | – | – | – | – | – | – | – | – |
max. | – | 17 | 10 | 0.15 | 1 | 0.5 | 0.05 | 0.3 | 0.3 | 0.006 | 0.015 | 0.015 | |
Grade | Ni | Cr | Fe | C | Mn | Si | Cu | Al | Ti | B | P | S | |
UNS N06601 | min. | 58 | 21 | 10 | – | – | – | – | – | – | – | – | – |
max. | 63 | 25 | 15 | 0.1 | 1 | 0.5 | 1 | 1.7 | – | – | 0.03 | 0.015 | |
Grade | Ni | Cr | Ti | Fe | C | Mn | Al | Si | S | Mo | P | Nb + Ta | |
UNS N06625 | min. | 58 | 20 | – | – | – | – | – | – | – | 8 | – | 3.15 |
max. | – | 23 | 0.4 | 5 | 0.1 | 0.5 | 0.4 | 0.5 | 0.015 | 10 | 0.015 | 4.15 |
Mechanical Property of Inconel
|
|||||
Grade | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation at Break (0.2% offset) | Rockwell Hardness (HRB) | |
UNS N06600 | Annealed | 550-690 | 205-345 | 35-55 | – |
UNS N06601 | Annealed | 570-750 | 225-400 | 35-55 | – |
UNS N06625 | Annealed | 827-1034 | 414-621 | 30-55 | 145–240 |
Material: Monel, Inconel.
Parts of Specifications:
Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
Nickel alloy is high temperature and corrosion resistant.
Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Architecture
Chemical industry.
Offshore industry.
Petrochemical industry.
Petrochemical industry.
Aerospace.

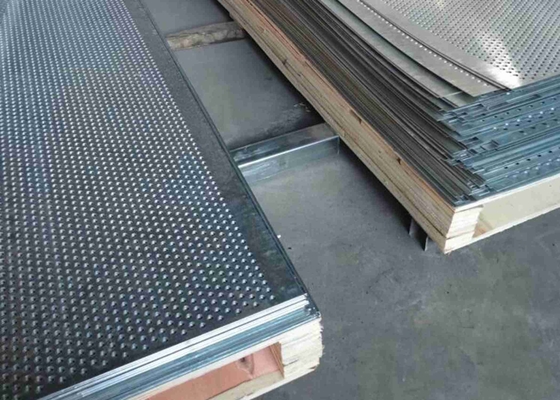

Packing:
