Window And Door 316 Stainless Steel Security Screen Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name SS316 Security Screen Mesh Material Stainless Steel 316
Standard ASTM, AISI, SUS, DIN, Etc Hole Shape Square Hole
Mesh Counts 10 Mesh, 11 Mesh, 12 Mesh, 14 Mesh, 18 Mesh. Color Black, Gray, Silver, Light Gray.
Width 0.75 M, 0.9 M, 1.2 M, 1.5 M. Length 2 M, 2.4 M, 3 M Or 31.5 M.
Finish Black Polyester Coated (engineered Corrosion And Moisture Resistant). Application Screen For Window And Doors
High Light

316 stainless steel security screen mesh

,

door stainless steel security screen mesh

,

316 stainless steel window screen

Leave a Message
Product Description

Stainless Steel 316 Mesh For Security Window And Door Screen Security Screen Mesh



Introduction:



316 marine grade stainless steel mesh is a plain woven security screen with square holes fabricated from high tensile AISI316 stainless steel wire, the wires with black premium-grade powder coated for better corrosion-resistant have the high tensile strength more than 900 MPa. And the wires are very strong and not sliding in the mesh screen.



Using 316 stainless steel mesh for anti-theft security window and door screen, allowing greater visibility and airflow, offers superior strength and security. That means you are placing a strong guarding on your house or office – you are safe.



316 marine stainless steel security screen meets Australian standards, and through the following test: dynamic impact test, neutral salt spray test, anti-oxidation test, knife shear test, fire test, swimming pool safety.



Specifications:


Material: 316 Marine Grade Stainless Steel Wire.
Wire diameter: 0.8 mm.
Mesh count: 10 mesh, 11 mesh, 12 mesh, 14 mesh, 18 mesh.
Security screen panel width: 0.75 m, 0.9 m, 1.2 m, 1.5 m.
Length: 2 m, 2.4 m, 3 m or 31.5 m.
Finish: black polyester coated (engineered corrosion and moisture resistant).
Color: black, gray, silver, light gray.


Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


316 security mesh Care and Maintenance:



316L stainless steel security screen surfaces cleaning may be carried out every 100 days in order to removal of all dust and dirt, if installed close to marine or industrial environments should be cleaned more frequently. The cleaning is very simple. You just need wash it with a soft brush using warm water and a mild detergent. Then rinse well with fresh water to remove any detergent residue. Please note, under any circumstances, do not use strong detergents or abrasive cleaning material (such as steel wool), as they may scratch or damage the coated surface.



Specifications:



Material: 0.8 mm diameter high tensile hot dipped galvanized steel wire.
Equal Aperture: 11 mesh × 11 mesh.
Surface treatment: Black powder coated or bright mesh.
Process: Plain weave mesh with flat and straight surface.
High strength: 1250 MPa – 1350 MPa.
Standard: meet Australia standard.
Panel size: 750/900/1200/1500 mm width and 2000/2400/3000 mm length.
Other Mesh: 14 mesh × 0.5 mm, 12 mesh × 0.6 mm, 12 mesh × 0.7 mm, 10 mesh × 0.8 mm, 10 mesh × 0.9 mm, 10 mesh × 1.2 mm.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:


Maximum strength and durability.
Good ventilation and visibility.
Black epoxy coated makes better corrosion resistant.
Equal aperture and transparent, enjoy clear unobstructed views.
Security Screen filters up to 60% of harmful UV rays.
Meets the Australian Standard AS5039-2008.

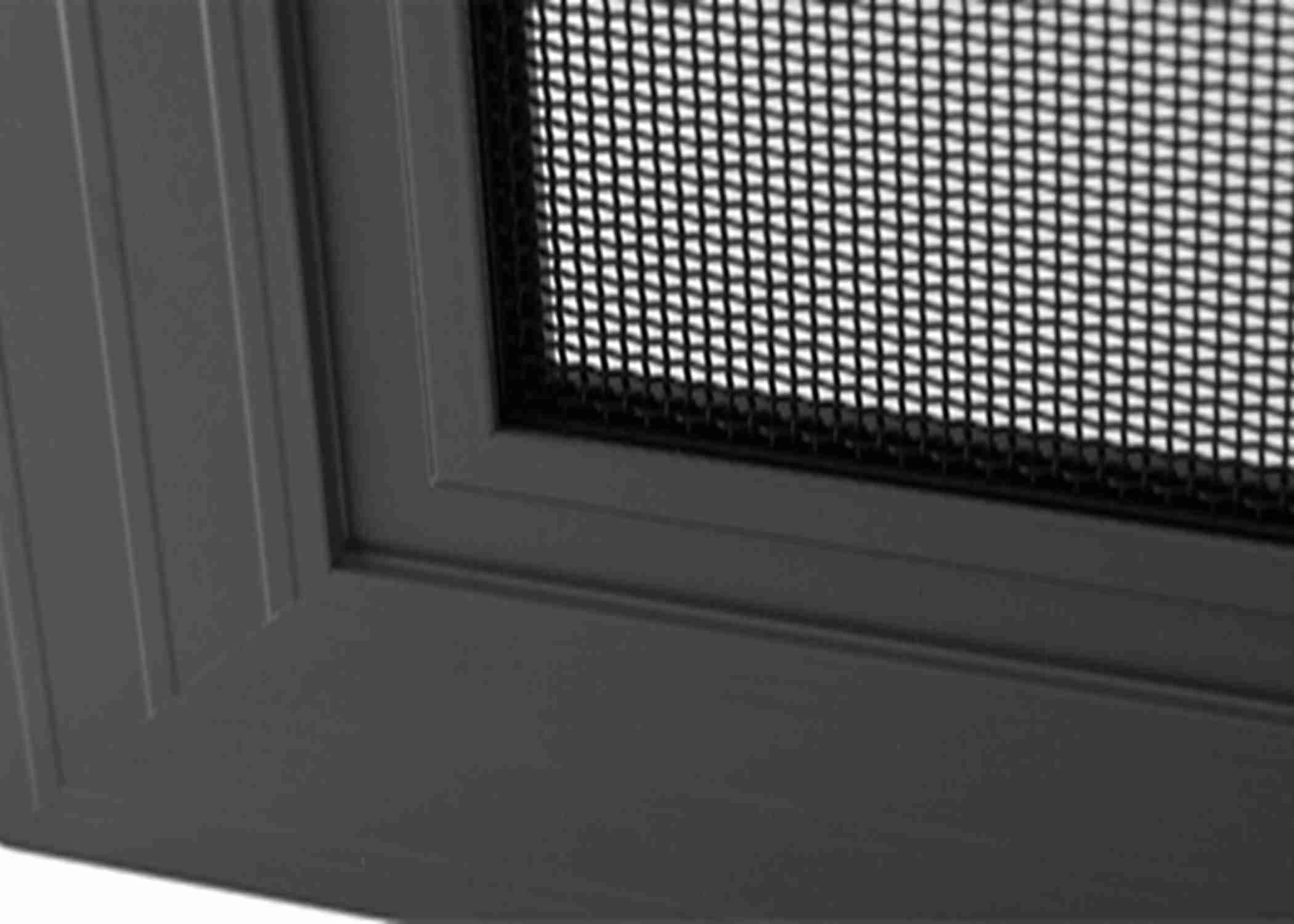

Window And Door 316 Stainless Steel Security Screen Mesh 1

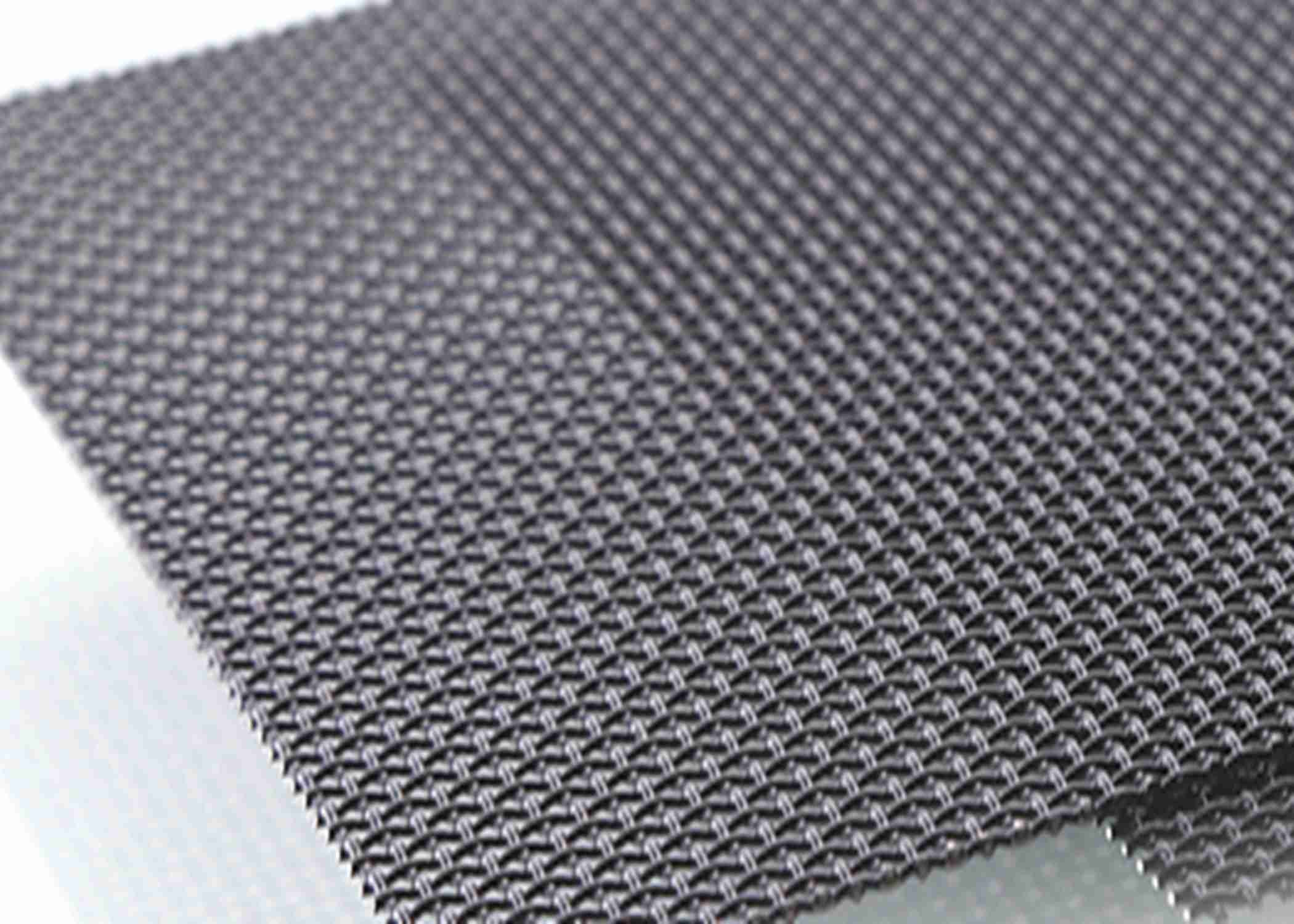

Window And Door 316 Stainless Steel Security Screen Mesh 2

Application:



Can be installed on hinged, sliding, or double doors, and security windows.
Used in industry protection, community, villa, swimming pool.
Used for decorative crafts.


Window And Door 316 Stainless Steel Security Screen Mesh 3
Window And Door 316 Stainless Steel Security Screen Mesh 4

Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

Packing:



Window And Door 316 Stainless Steel Security Screen Mesh 5



We are a professional wire mesh company, which mainly produce stainless steel woven mesh, square wire mesh, dutch wire mesh, stainless steel ultra-thin mesh, reverse dutch woven cloth, five-heddle dutch woven cloth, sintered wire mesh, crimped wire mesh, stainless steel printing screen, stainless steel security screen, knitted wire mesh, stainless steel wire, nickel wire mesh, brass wire mesh, black wire cloth, epoxy wire mesh, stainless steel welded mesh, shale shaker screen ,steel frame screen, wedge wire screen, water well screen, wave type screen,balanced belt, spiral conveyor belt, ladder belt, double spiral belt, sani grid belt, wire ring belt, flat wire belt,compound balanced belt, filter elements, filter disc and filter tube. We win customers at home and abroad with excellent and high-quality products and service.
