Product Details
Product Name SS304 Security Screen Mesh Material Stainless Steel 304
Standard ASTM, AISI, SUS, DIN, Etc Hole Shape Square Hole
Mesh Counts 10 Mesh, 11 Mesh, 12 Mesh, 14 Mesh, 18 Mesh, Etc Color Black, Gray, Silver, Light Gray.
Width 0.8m To 1.5 M. Length 2.4 M To 31.5 M.
Service Life Guarantee 10 Years. Application Screen For Window And Doors
High Light

ss304 stainless steel security screen mesh

,

insect resistance stainless steel window screen

,

thief resistance stainless steel window screen

Leave a Message
Product Description

SS304 Security Screen Keeps Thief and Insect Resistance Stainless Steel Security Screen Mesh



Introduction:



304 grade stainless steel mesh made from 0.9 mm thick wire with 11 mesh pattern is the best security mesh screen available on the market for secure doors, windows and outdoor areas from intruders and flies, mosquitoes and other pests.



The 0.9 mm thick 304 security screen ensures that it is harder to cut through or penetrate. If you kick at the mesh repeatedly, you can not break through it, but you will injure yourself. This heavy duty 304 mesh with black power coated has more anti-corrosion function.



Apart from high strength and anti-corrosion, the black 304 stainless steel mesh has other two import benefit. First, if you in the room, it gives you a clear and unobstructed view of the outdoor, but viewers can not peep your privacy from outside. Second, as a security screen mesh it allows the free flow and circulation of fresh air for your comfort.



Specifications:


Materials: GB 304 stainless steel.
Wire diameter: 0.90 mm.
Model (mesh count): 10 mesh, 11 mesh, 12 mesh, 14 mesh, 18 mesh.
Width: 0.8–1.5 m.
Length: 2.4 m / 31.5 m.
Color: black, gray, silver, light gray.
Service life: guarantee 10 years.


Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


Comparision between 304 secruity mesh and 316L security mesh:



Because 304 grade security mesh screen with 0.9 mm wire is thicker than 0.8 mm 316 mesh. So, 304 stainless steel security screen is stronger and wear resistance than 316, maintaining the corrosion resistant qualities, but 304 grade stainless steel is less brittle than 316.

304 Security Screening is ideal for secure window/door screen and safe swimming pool fence.



High strength 304 stainless security screen with elegant appearance is mainly used as security windows and door for guarding your house and office, having the anti-theft, anti-insect and ventilation performance.

The 304 security screen is also suitable for an attractive and durable swimming pool fencing alternative to glass that eliminates glare and is easier to clean. This stainless steel mesh pool fencing not only look great, but have enough quality and safety for your family and children.



Specifications:



Material: 0.8 mm diameter high tensile hot dipped galvanized steel wire.
Equal Aperture: 11 mesh × 11 mesh.
Surface treatment: Black powder coated or bright mesh.
Process: Plain weave mesh with flat and straight surface.
High strength: 1250 MPa – 1350 MPa.
Standard: meet Australia standard.
Panel size: 750/900/1200/1500 mm width and 2000/2400/3000 mm length.
Other Mesh: 14 mesh × 0.5 mm, 12 mesh × 0.6 mm, 12 mesh × 0.7 mm, 10 mesh × 0.8 mm, 10 mesh × 0.9 mm, 10 mesh × 1.2 mm.
Package: 25 PCS/50 PCS packing in a wooden case, waterproof paper covered each PC, then pallet packaged.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75


Features:


Excellent resistance to corrosion and impact.
Quality meets the demands of GB/T 1220–2007 Stainless Steel Rod standard grade.
Good privacy protection and aesthetic effect.
Easy to install with flat and straight surface.
Good air circulation & high quality daylighting.

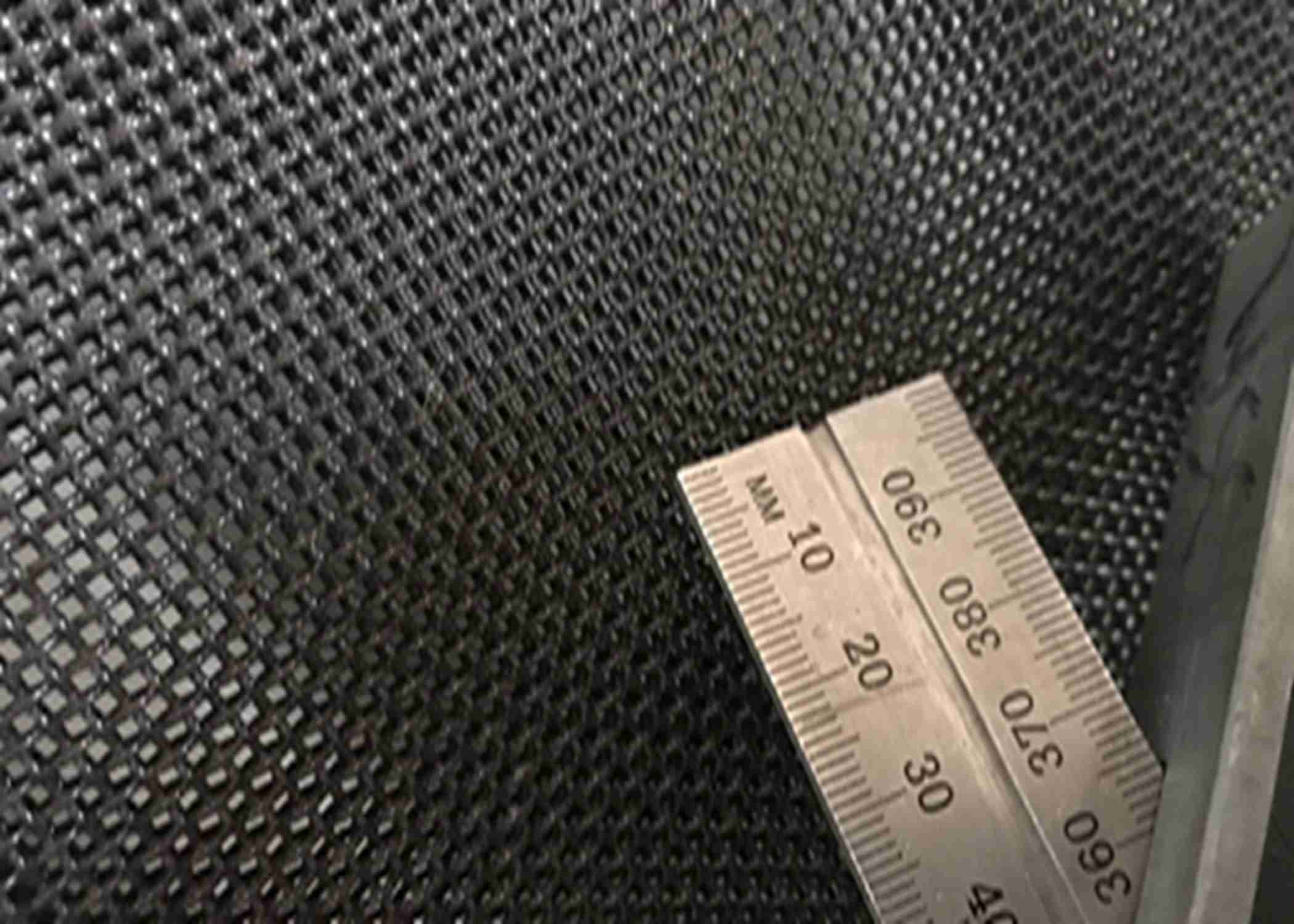

Ss304 Stainless Steel Window Screen Keeps Thief And Insect Resistance 1

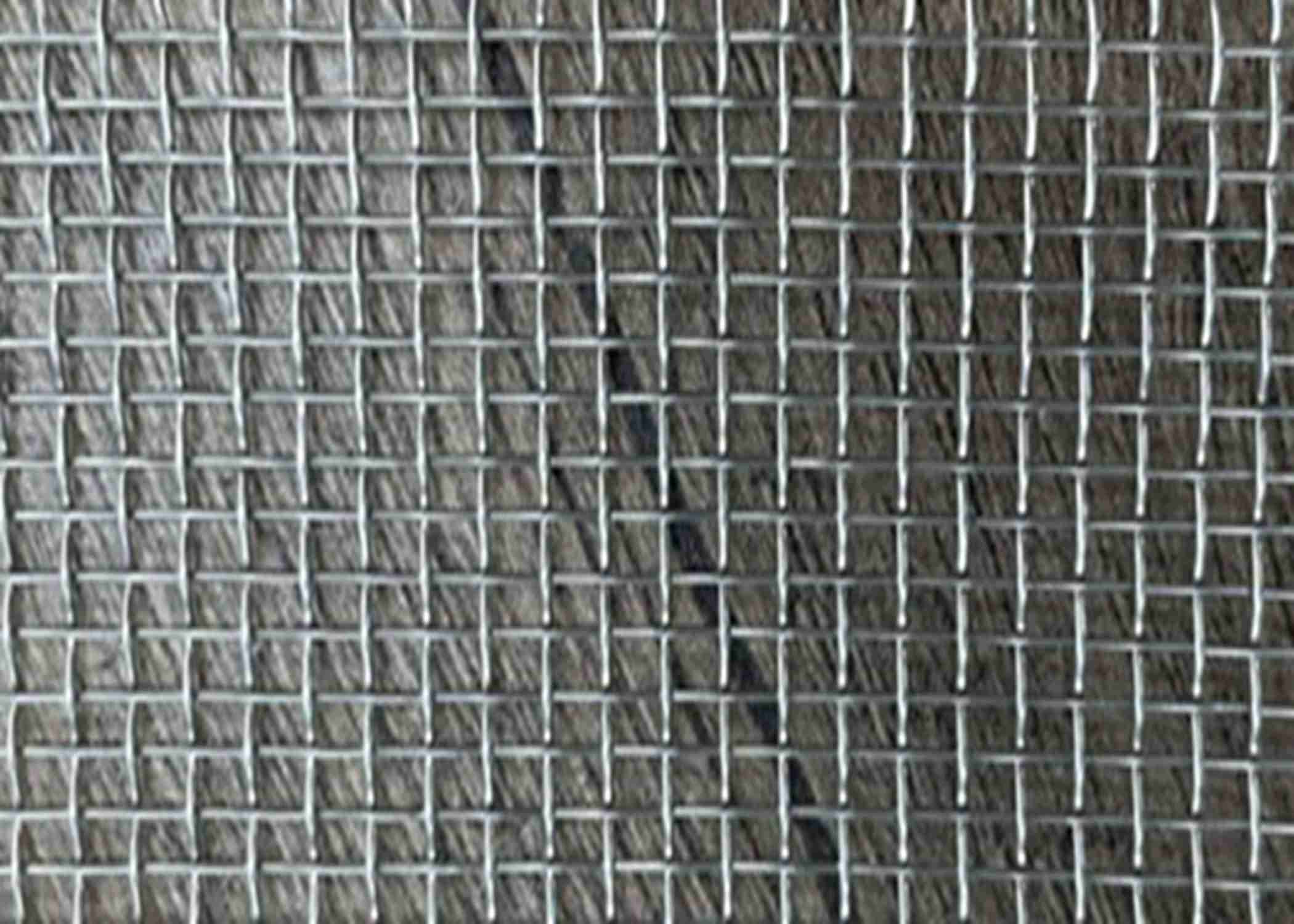

Ss304 Stainless Steel Window Screen Keeps Thief And Insect Resistance 2

Application:


Security (safe) window screens ,Security(safe) door screens.
1.Hinged Doors
2.Sliding Doors
3.Double Doors
4.Security Screens
5.Fire Escape Exit Screens
6.Cyclone Screens.

Ss304 Stainless Steel Window Screen Keeps Thief And Insect Resistance 3

Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh
