SS304, SS316 Series Five Heddle Weave Wire Mesh Excellent Flow Rate Dutch Wire Mesh

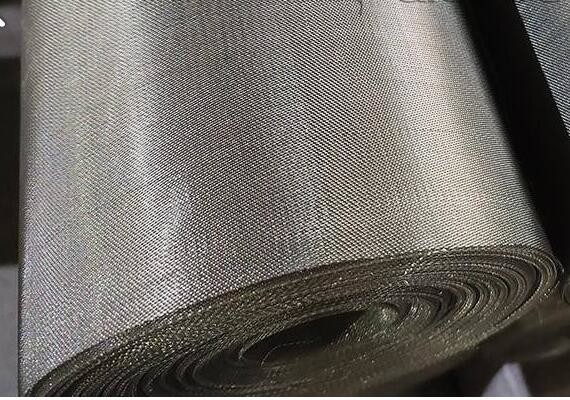

Five Heddle Woven Stainless Steel Wire Cloth
Five Heddle Weave Wire Mesh offers a rectangular opening, is fabricated by passing every warp wire alternately up and down each single and four Shute wires and vice versa. The pattern is staggered on successive warp wires, providing a facade of parallel diagonal lines. This weave permits the use of comparatively heavier wires in the specific mesh count than recommended in other weaves. It is extensively used in supporting the heavier loads. Five-heddle weave mesh offers excellent flow rate, it's suitable for high mechanical pressures.
Material:
1) 300 series stainless steels of 304,304L,316,316L,321
2) specialized stainless steels and Nickel based Alloys of 310/314, 904L, alloy400, alloy600, alloy601, alloy625, alloy800, alloy825, alloy C22, alloy C276, alloy DS, alloy400, Feral
3) Nickel & Non-Ferrous of Nickel, High grade Nickel, Bronze, Brass, Copper
Specifications
Standard Width: 1.0m or 48"
Standard Length: 30m or 100ft
Meshes per inch |
Wire Diameter (mm) |
Micro Retention |
Thickness |
Approx.Weight |
|||
Warp count |
Weft count |
Warp wire |
Weft wire |
abs. μm |
nom. Μm |
mm |
Kg/m2 |
---|---|---|---|---|---|---|---|
30 |
18 |
0.5 |
0.5 |
0.60-0.65 |
0.37 |
1.48 |
3 |
28 |
17 |
0.47 |
0.47 |
0.75-0.80 |
0.46 |
1.41 |
2.53 |
24 |
20 |
0.6 |
0.6 |
0.65-0.75 |
0.49 |
1.7 |
3.96 |
15 |
13 |
0.9 |
0.9 |
1.15-1.20 |
0.85 |
2.6 |
5.67 |
80 |
60 |
0.2 |
0.2 |
0.20-0.22 |
0.127 |
0.55 |
1.4 |
77 |
40 |
0.24 |
0.24 |
0.38-0.40 |
0.095 |
0.68 |
1.65 |
65 |
36 |
0.3 |
0.3 |
0.26-0.29 |
0.1 |
0.84 |
2.27 |
55 |
36 |
0.3 |
0.3 |
0.25-0.28 |
0.175 |
0.84 |
2.05 |
132 |
85 |
0.14 |
0.2 |
0.09-0.11 |
0.052 |
0.44 |
1.47 |
107 |
132 |
0.16 |
0.14 |
0.055-0.065 |
0.055 |
0.44 |
1.3 |
107 |
125 |
0.16 |
0.14 |
0.065-0.08 |
0.07 |
0.45 |
1.27 |
107 |
59 |
0.16 |
0.16 |
0.16-0.18 |
0.077 |
0.45 |
1.09 |
Other size according to your requirements.
Weave Type:
Each warp wire alternately goes under and above each one and four weft wires, and each weft wire goes under and above each one and four warp wires alternately.
Features:

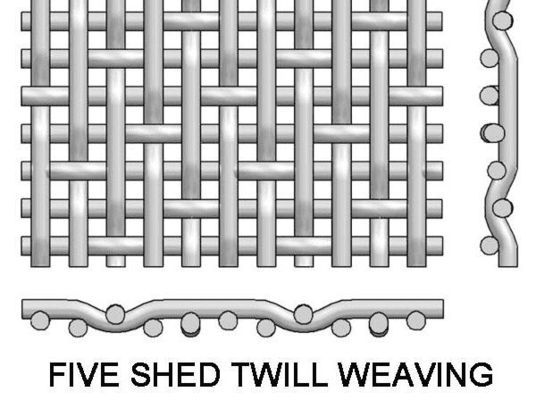

Five-heddle weave also called five shed twill weave mesh pattern, rectangular aperture, each warp wire passes over four wires and under one to provide a very smooth surface on one side which encourages the efficient removal of filter cake. Compare with common types, this types of metal wire mesh is strong with high flow rates and easy to clean.
Applications:
Five heddle weave stainless steel wire cloth is widely used in undercurrent filtration, drainage filtration, dehydration in paper-making and chemical fillers. Commercial woven wire mesh is used in the petroleum filtration in the chemical houses. It is suitable for drum filter equipment and disc filters where the filter cake removal and cleaning is done in the continuous cycles. It is used in the mining industry, waster water processing and processed water filtration. The smooth surface on one side is commonly used in the petroleum and chemical filtration industries.
Packing:
Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
