Hollander Weave Type 10x1m Stainless Steel Dutch Wire Mesh Highly Durable Fine Filtration
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Hollander Weave Type Wire Mesh | Material | SS304 SS316 |
|---|---|---|---|
| Surface | Bright Silver | Mesh Counts | 325 X 2300 |
| Wire Dia. | 0.035" X 0.026" | Weaving Type | Plain Dutch, Twill Dutch, Reverse Twill Dutch |
| Roll Width | 1.0m, 1.2m, 1.5m, 1.6m; 36", 48" | Roll Length | 10m, 20m, 30m, 100', Etc |
| Type | Microninc Filter Cloth | Application | Aerospace Industry, Industrial Filtration, Etc. |
| Highlight | 10x1m stainless steel dutch wire mesh,hollander stainless steel dutch wire mesh,fine filtration hollander weave mesh |
||
Product Description
Hollander Weave Type Wire Mesh Highly Durable Fine Filtration Dutch Wire Mesh

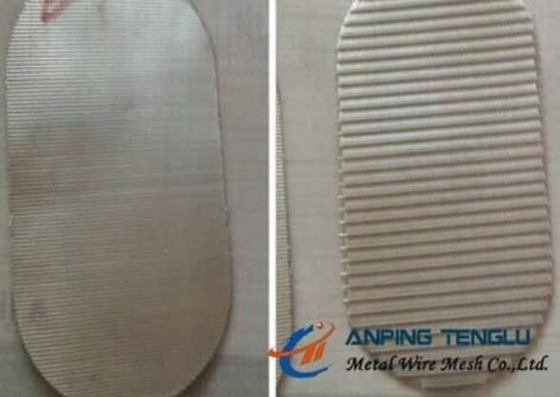

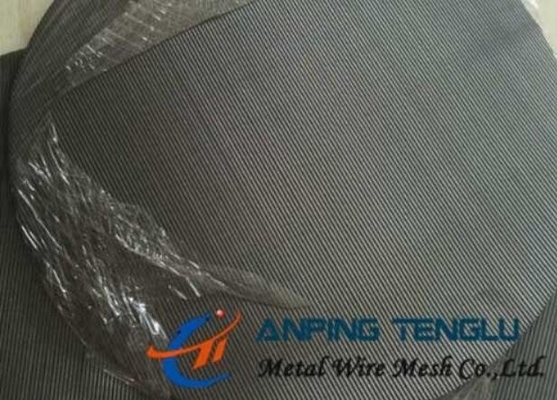

Stainless Steel Hollander Weave Wire Mesh
Hollander Weave(Dutch Weave) is made with relatively thin weft wires packed closely together, and thicker more widely spaced warp wires. It resembles a ‘basket’ weave and does not have square apertures. Dimensionally very stable and having high bursting strength, it is suitable for pressure filtration where a large open area is not required. Hollander cloth can be woven in plain, twill, or reverse twill format, in Stainless Steel and Mild Steel.
Features:
This kind of woven wire mesh is strong woven product, is fine filtration and highly durable, offers good wear-resistance, heat-resistance, acid-resistance and corrosion resistance. With following characteristics: High accuracy, Nominal or no pressure loss while filtration, Supreme filtration surface, More stable than square and rectangular wire mesh.
Material: Stainless Steel 304, 304L, 316, 316L, etc.
Specifications:
|
Plain Dutch Weave |
|||
|
Mesh/Inch (Warp x Weft) |
Wire Diameter (mm) (Warp x Weft) |
Filtration Fineness (um) (Warp x Weft) |
Weight (kg/sq.m) |
|
8x62 |
0.63x0.45 |
300 |
5.42 |
|
10x79 |
0.50x0.35 |
250 |
3.16 |
|
12x64 |
0.50x0.40 |
280 |
3.2 |
|
14x88 |
0.40x0.30 |
220 |
2.5 |
|
15x100 |
0.40x0.27 |
210 |
2.35 |
|
20x120 |
0.30x0.23 |
160 |
1.9 |
|
24x110 |
0.35x0.25 |
150 |
2.35 |
|
24x140 |
0.27x0.19 |
110 |
1.7 |
|
30x150 |
0.25x0.17 |
80 |
1.55 |
|
30x180 |
0.25x0.15 |
70 |
1.4 |
|
40x200 |
0.19x0.13 |
60 |
1.2 |
|
50x250 |
0.15x0.11 |
50 |
0.95 |
|
60x300 |
0.13x0.09 |
45 |
0.75 |
|
70x350 |
0.12x0.08 |
35 |
0.7 |
|
80x400 |
0.12x0.07 |
34 |
0.7 |
|
70x500 |
0.12x0.06 |
32 |
0.65 |
|
100x600 |
0.10x0.05 |
30 |
0.6 |
|
Dutch Twilled Weave |
|||
|
Mesh/Inch (Warp x Weft) |
Wire Diameter (mm) (Warp x Weft) |
Filtration Fineness (um) (Warp x Weft) |
Weight (kg/sq.m) |
|
20x200 |
0.335x0.28 |
118 |
4.58 |
|
20x260 |
0.25x0.20 |
119 |
3.14 |
|
24x300 |
0.28x0.18 |
110 |
3.01 |
|
30x250 |
0.28x0.20 |
77 |
3.41 |
|
30x340 |
0.28x0.16 |
89 |
2.84 |
|
40x560 |
0.18x0.10 |
70 |
1.73 |
|
80x700 |
0.12x0.08 |
30 |
1.26 |
|
80x780 |
0.12x0.07 |
28 |
1.22 |
|
90x780 |
0.10x0.07 |
26 |
1.24 |
|
100x780 |
0.10x0.07 |
25 |
1.13 |
|
120x1100 |
0.07x0.05 |
18 |
0.86 |
|
165x800 |
0.07x0.05 |
25 |
0.58 |
|
165x1400 |
0.07x0.04 |
14 |
0.75 |
|
200x600 |
0.06x0.04 |
28 |
0.5 |
|
200x1400 |
0.06x0.04 |
12 |
0.72 |
|
200x1600 |
0.06x0.035 |
11 |
0.7 |
|
200x1800 |
0.06x0.03 |
10 |
0.7 |
|
250x2000 |
0.045x0.028 |
8 |
0.65 |
|
325x2300 |
0.035x0.026 |
5 |
0.57 |
|
325x2500 |
0.035x0.023 |
4 |
0.52 |
|
400x2800 |
0.03x0.018 |
3 |
0.46 |
|
400x3000 |
0.03x0.16 |
2. |
0.43 |
|
400x3500 |
0.03x0.15 |
1 |
0.38 |
|
Reverse Dutch Weave |
||||
|
Mesh/Inch (Warp x Weft) |
Wire Diameter(mm) (Warp x Weft) |
Wire Diameter(inch) (Warp x Weft) |
Open Area % |
Absolute Filter rating(um) |
|
63 x 18 |
0.40 x 0.60 |
0.0157 x 0.0236 |
60 |
220 |
|
107x20 |
0.24 x 0.60 |
0.0094 x 0.0236 |
58 |
210 |
|
72 x 15 |
0.45 x 0.55 |
0.0177 x 0.0216 |
60 |
200 |
|
152x24 |
0.30 x 0.40 |
0.0118 x 0.0157 |
56 |
160 |
|
170x40 |
0.20 x 0.45 |
0.0079 x 0.0177 |
58 |
130 |
|
132x32 |
0.20 x 0.40 |
0.0079 x 0.0157 |
55 |
105 |
|
171x46 |
0.15 x 0.30 |
0.0059 x 0.0118 |
54 |
85 |
|
290x75 |
0.09 x 0.20 |
0.0035 x 0.0079 |
53 |
55 |
|
615x102 |
0.04 x 0.16 |
0.0157 x 0.0063 |
41 |
42 |
|
615x130 |
0.04 x 0.13 |
0.0157 x 0.0051 |
49 |
22 |
|
720x150 |
0.036 x 0.10 |
0.0014 x 0.0039 |
54 |
17 |
Weaving methods: Plain Dutch Weave, Twill Dutch Weave, Reverse Dutch Weave
Warp: The wires running lengthwise in the mesh.
Weft (or Shute): The wires running transversely across the mesh.
Application:
Hollander woven stainless steel wire cloth offers finer filtration and finds popular application in petroleum, chemical, food, pharmacy and other fields. Through constant technological innovation and improvement, we can produce stainless steel wire mesh of various specification in duch/reverse dutch weaving patterns. Applications of Reverse Woven Wire Cloth: Filter candles, vacuum filters and spring filters.
Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
