316 Stainless Steel Dutch Wire Mesh 720 × 150 Mesh 48" × 100ft Roll Size Pz Microdur Cloth

  • 316 Stainless Steel Dutch Wire Mesh 720 × 150 Mesh 48" × 100ft Roll Size Pz Microdur Cloth
  • 316 Stainless Steel Dutch Wire Mesh 720 × 150 Mesh 48" × 100ft Roll Size Pz Microdur Cloth
  • 316 Stainless Steel Dutch Wire Mesh 720 × 150 Mesh 48" × 100ft Roll Size Pz Microdur Cloth
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Plain Dutch Wire Mesh
Material SS304 SS316 Surface Bright Silver
Mesh Counts 720 X 150 Wire Dia. 0.0014" X 0.0039"
Weaving Type Reverse Plain Dutch Weave Roll Width 1.0m, 1.2m, 1.5m, 1.6m; 36", 48", Etc
Roll Length 10m, 20m, 30m, 100', Etc Application Aerospace Industry, Industrial Filtration, Etc.
Highlight

316 stainless steel dutch wire mesh

,

48" × 100ft stainless steel dutch wire mesh

,

pz microdur cloth dutch weave mesh
Leave a Message
Product Description

720 × 150Mesh, 48" × 100ft Roll Size, Stainless Steel PZ Microdur Cloth Dutch Wire Mesh



Stainless steel reverse dutch wire mesh



A Reverse Plain Dutch Weave, the warp wires are smaller and spaced closer together than the weft wires. This weave allows the use of high tensile wires, which offer the most durable and stable fine filter cloth.



Due to sealed surface, filtration happens at the joint of warp and weft. These are manufactured in pattern of plain weave. The warp wires are weaved together with a larger pitch in comparison to the weft wires. It increases the strength of mesh considerably than square meshes.



Features:



Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. It also has fine filtration and highly durable construction.



Material: AISI/SUS304, 304L, 316 or 316L, etc.



Roll Size: 48" Width, 100ft Length





Robusta Wire Mesh Specifications



Mesh/Inch

(Warp x Weft)

Wire Diameter

(Warp x Weft)

Absolute Filter Rating(um)

(mm)

(inch)

63 x 18

0.40 x 0.60

0.0157 x 0.0236

220

72 x 15

0.45 x 0.55

0.0177 x 0.0216

200

107x 20

0.24 x 0.60

0.0094 x 0.0236

210

130 x 35

0.20 x 0.40

0.0079 x 0.0157

80

132 x 16

0.24 x 0.60

0.0094 x 0.0236

200

132 x 32

0.20 x 0.40

0.0079 x 0.0157

105

140 x 40

0.19 x 0.38

0.0075 x 0.015

100

152 x 24

0.30 x 0.40

0.0118 x 0.0157

160

170 x 40

0.20 x 0.45

0.0079 x 0.0177

130

171 x 46

0.15 x 0.30

0.0059 x 0.0118

85

175 x 40

0.15 x 0.38

0.0079 x 0.0157

70

175 x 50

0.15 x 0.30

0.0059 x 0.0118

60

180 x 120

0.088 x 0.10

0.0035 x 0.004

75

200 x 120

0.08 x 0.10

0.0031 x 0.004

70

280 x 70

0.09 x 0.21

0.0035 x 0.0083

40

290 x 75

0.09 x 0.20

0.0035 x 0.0079

55

400 x 125

0.066 x 0.10

0.0026 x 0.0039

50

600 x 100

0.04 x 0.14

0.00157 x 0.0055

25

600 x 125

0.042 x 0.125

0.00165 x 0.0049

20

615 x 102

0.04 x 0.16

0.00157 x 0.0063

42

615 x 130

0.04 x 0.13

0.00157 x 0.0051

22

625 x 133

0.04 x 0.13

0.00157 x 0.0051

17

720 x 150

0.036 x 0.10

0.0014 x 0.0039

17

850 x 155

0.03 x 0.10

0.0012 x 0.004

10

Othere specifications according to your requests.





Weaving Methods: reverse plain dutch weave

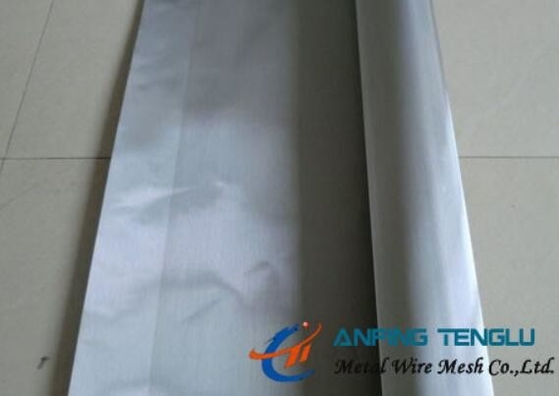

720 * 150Mesh, 48" * 100ft Roll Size, Stainless Steel PZ Microdur Cloth



Application:


Reverse Dutch Wire Mesh is widely used in aerospace, petroleum, chemical industry, chemical fiber, machinery, plastic products, scientic research, conveying and other industries.

720 * 150Mesh, 48" * 100ft Roll Size, Stainless Steel PZ Microdur Cloth







Packing:



316 Stainless Steel Dutch Wire Mesh 720 × 150 Mesh 48" × 100ft Roll Size Pz Microdur Cloth 2





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
