304 304L 316 316L Square Welded Mesh AISI Standard Polished Surface

  • 304 304L 316 316L Square Welded Mesh AISI Standard Polished Surface
  • 304 304L 316 316L Square Welded Mesh AISI Standard Polished Surface
  • 304 304L 316 316L Square Welded Mesh AISI Standard Polished Surface
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Strong Structure, Beautiful Outlook, Corrosion Resistance, Acid Resistance, Alkali Resistance, Etc Product Name Welded Wire Mesh
Material SS304, SS304L, SS316, SS316L Standard ASTM, AISI, SUS, DIN
Type Welded Hole Shape Square Hole
Surface Treament Polished, Mill Finish Max Width 2.0m
Length 30m Application Infill Panel & Railing Systems, Etc
High Light

polished surface aisi square welded mesh

,

ss304 square welded mesh

,

316 stainless steel welded wire mesh
Leave a Message
Product Description

304 304L 316 316L AISI Standard Welded Wire Mesh Polished Surface SS Welded Wire Mesh



Stainless Steel Welded Wire Mesh



Welded Steel Wire Mesh is a grid formed by welding steel wires together at their intersections. Welded Steel Wire Mesh offers greater strength and versatility over woven mesh. Welded Mesh will not fray or unravel, is stable and rigid, has a smooth surface and has a excellent aesthetic appearance. Available in a wide range of wire diameters and opening sizes.



Stainless steel welded wire mesh is an extremely popular and versatile item that many different customers use for many different applications. We specialize in supplying high quality stainless steel welded wire mesh, available in both stainless steel 304 and stainless steel 316. Stainless steel welded wire mesh is corrosion resistant, uniform in appearance and available from stock or through custom manufacturing.



Surface Treatment: Polished



Characteristics:



Stainless Steel Welded Mesh offer excellent characteristics such as corrosion resistance, oxidation resistance, acid resistance, alkali resistance, aging resistance, sunshine resistance and weather resistance. Besides this kind of product has flat even surface and strong structure, therefore this product has a long service life. Good material life of up to several decades.



Features:



Compared with other wire meshes, stainless steel welded mesh has many good properties, such as strong structure, beautiful outlook, corrosion resistance, acid resistance, alkali resistance and long service life, it is not easy to loosen even be cut into parts or exerted force on the parts. Products through sophisticated automation technology processing machinery is made of flat surface, solid structure, strong integrity, even if the cut or in part under pressure not happen slack phenomenon.


Applications:



Infill panel & railing systems;
Industrial fan & machine guards;
Security enclosures;
Animal retention (cages);
Small critter control;
Decorative signage;
Room dividers;
Wall cladding;
Ceiling panels;
Air vents & soffit screens;
Basket fabrication;
Food applications;
Racking & storage;
Aviary & bird screen;
Industrial separation, etc.



Specifications:



Stainless Steel Welded Wire Mesh in Rolls
Mesh Size Wire Diameter
mm inch BWG gauge mm
6.4 1/4 24–22 0.56–0.71
9.5 3/8 23–19 0.64–1.07
12.7 1/2 22–16 0.71–1.65
19.1 3/4 21–16 0.81–1.65
25.4 × 12.7 1 × 1/2 21–16 0.81–1.65
25.4 1 21–14 0.81–2.11
38.1 1-1/2 19–14 1.07–2.11
25.4 × 50.8 1 × 2 17–14 1.47–2.11
50.8 2 16–12 1.65–2.77



Stainless Steel Welded Mesh Panels
Mesh Size Wire Diameter Panel Width & Length
12.7 mm 1/2" × 1/2" 1.0–2.0 mm



3 feet × 6 feet
4 feet × 8 feet
5 feet × 10 feet
1 m × 2 m
1.5 m × 3 m
2 m × 4 m
25.4 mm 1" × 1" 1.5–3.5 mm
38.1 mm 1-1/2" × 1-1/2" 2.0–5.0 mm
50.8 mm 2" × 2" 2.0–6.0 mm
76.2 mm 3" × 3" 3.0–7.0 mm
101.6 mm 4" × 4" 3.0–8.0 mm
127 mm 5" × 5" 4.0–9.0 mm
152.4 mm 6" × 6" 4.0–10.0 mm
Other panel sizes can also be made according to request.






AISI304, AISI304L, AISI316, AISI316L Welded Wire Mesh, Polished Surface

Packing:



Each roll with polyfilm with water proof paper, outside wooden pallets.

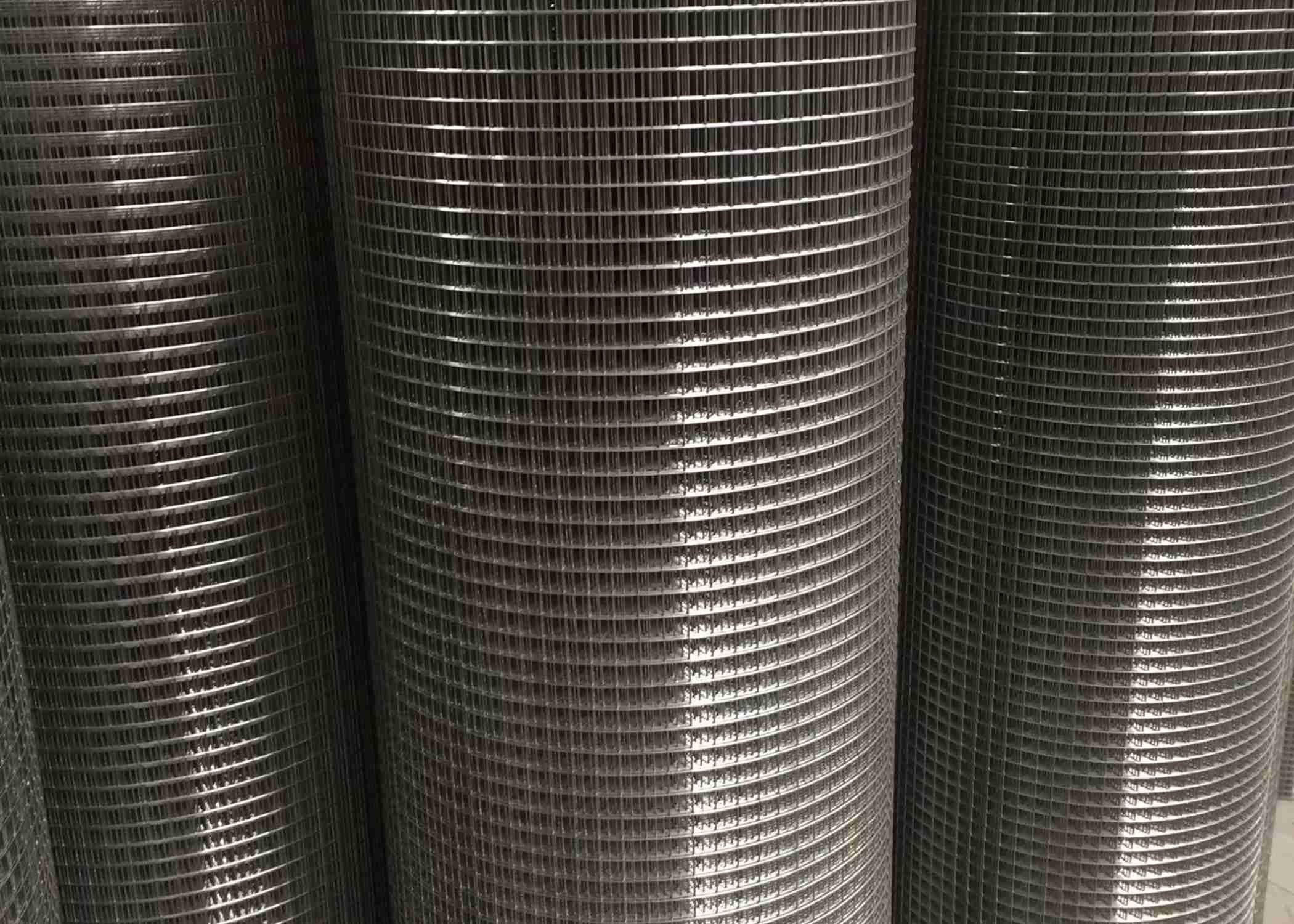

304 304L 316 316L Square Welded Mesh AISI Standard Polished Surface 1

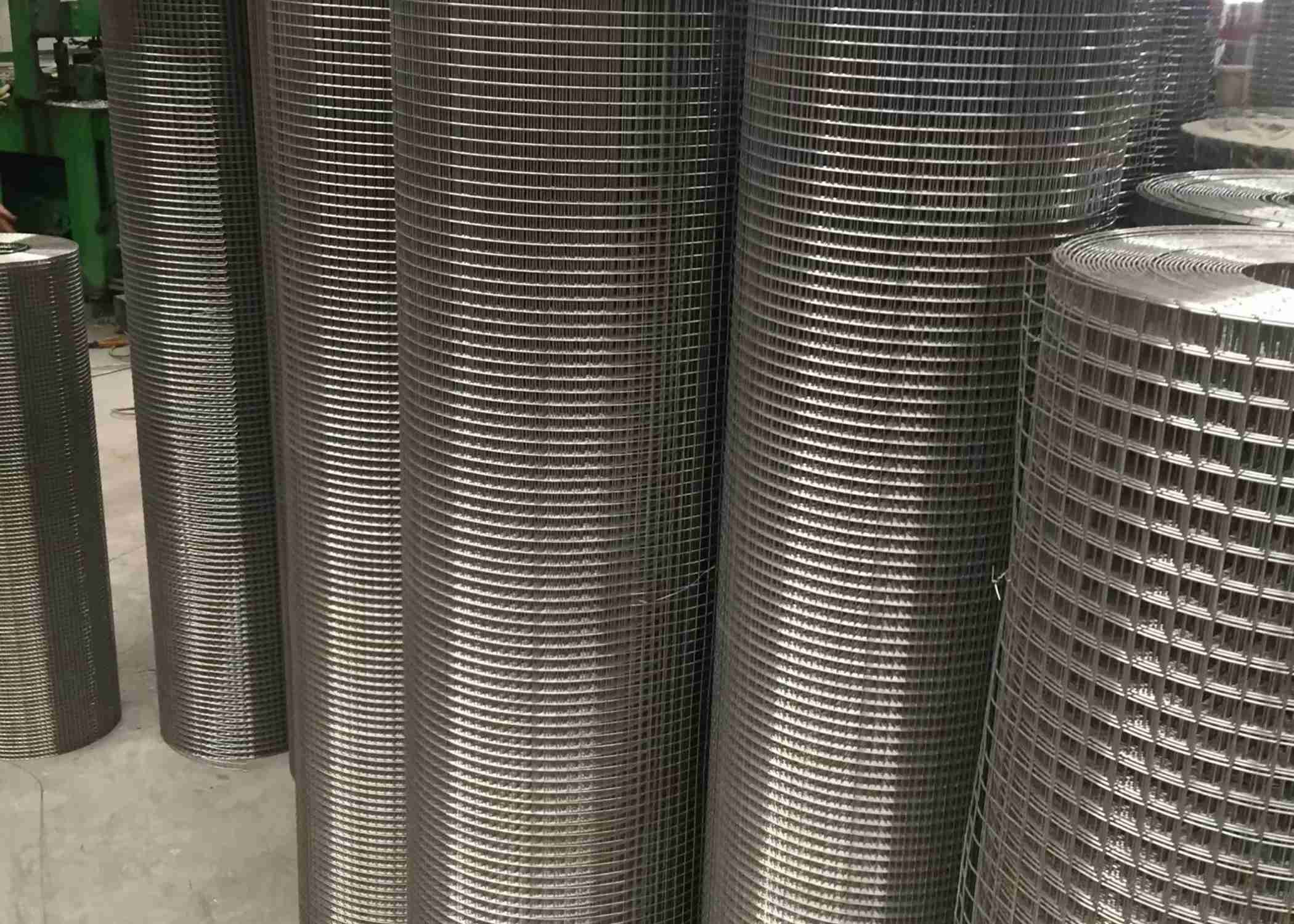

304 304L 316 316L Square Welded Mesh AISI Standard Polished Surface 2
