Bwg 31 To Bwg34 Wire Stainless Steel Security Screen Mesh Epoxy Coated 12x12
Place of Origin | Anping of China |
---|---|
Brand Name | QIANPU |
Certification | ISO |
Minimum Order Quantity | 150 square meters |
Price | Negotiable |
Packaging Details | Inside 1 roll seperately in waterproof paper then packed it inside of wooden carton |
Delivery Time | 2 weeks |
Payment Terms | T/T, Western Union, L/C |
Supply Ability | 30 0000 square meters per month |

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Stainless Steel Security Screen Mesh | Color | Black, Gray, White, Blue, Yellow, Etc. |
---|---|---|---|
Material | Epoxy Coated Low Carbon Steel Wire, Aluminum Steel Wire And Stainless Steel Wire. | Standard | AISI, ASTM, Etc |
Mesh | 12 Mesh × 12 Mesh, 14 Mesh × 14 Mesh, 14 Mesh × 18 Mesh, 16 Mesh × 18 Mesh, 20 Mesh × 20 Mesh, Etc. | Wire | BWG 31- BWG34 |
Width | 36", 40", 42", 48", 60" And So On. | Length | 25', 50', 100', Etc. |
Feature | Excellent Ventilation. | Application | Windows Or Doors Screens |
Highlight | bwg31 stainless steel security screen mesh,bwg 34 stainless steel security mesh,12x12 stainless steel security screen mesh |

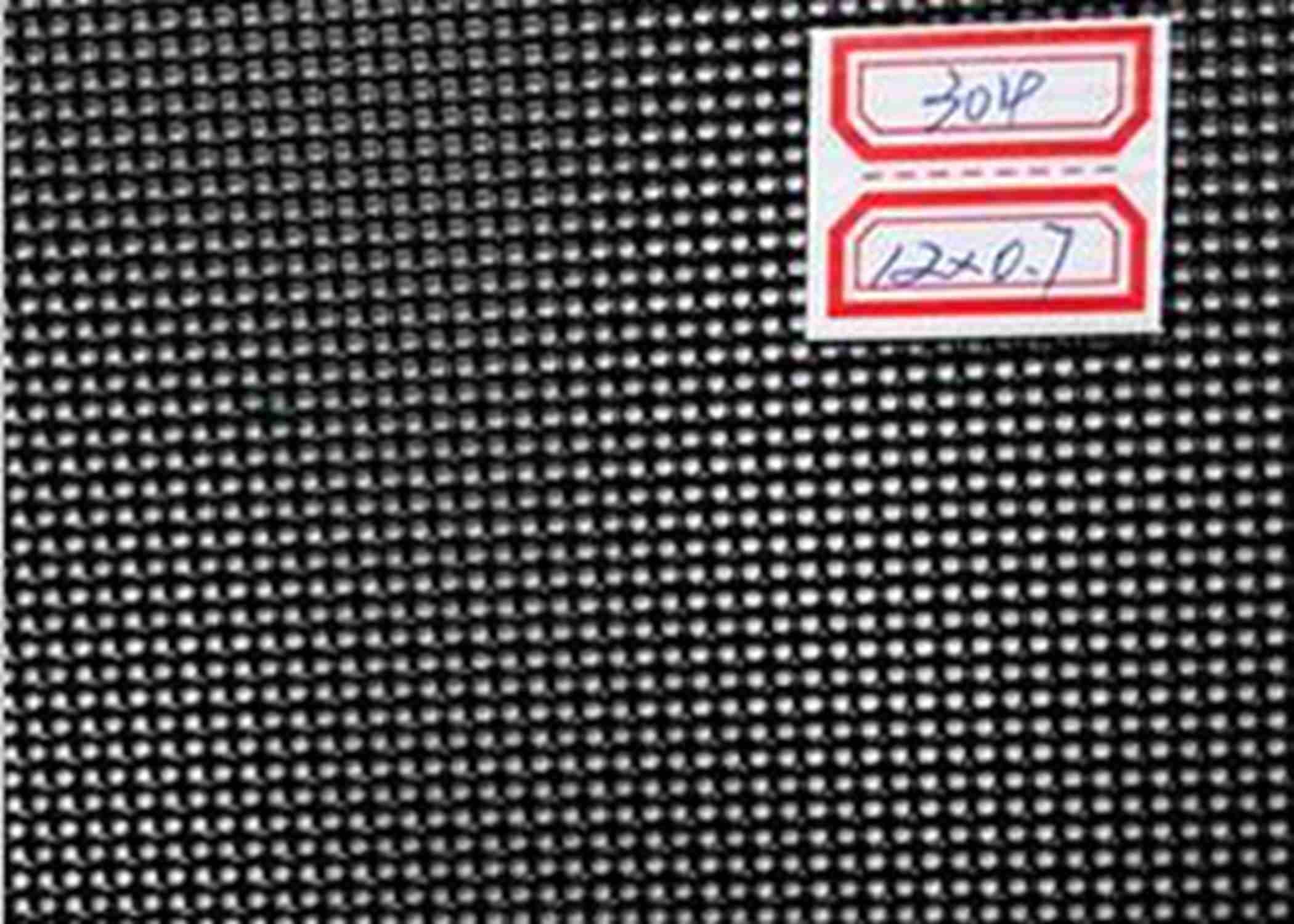

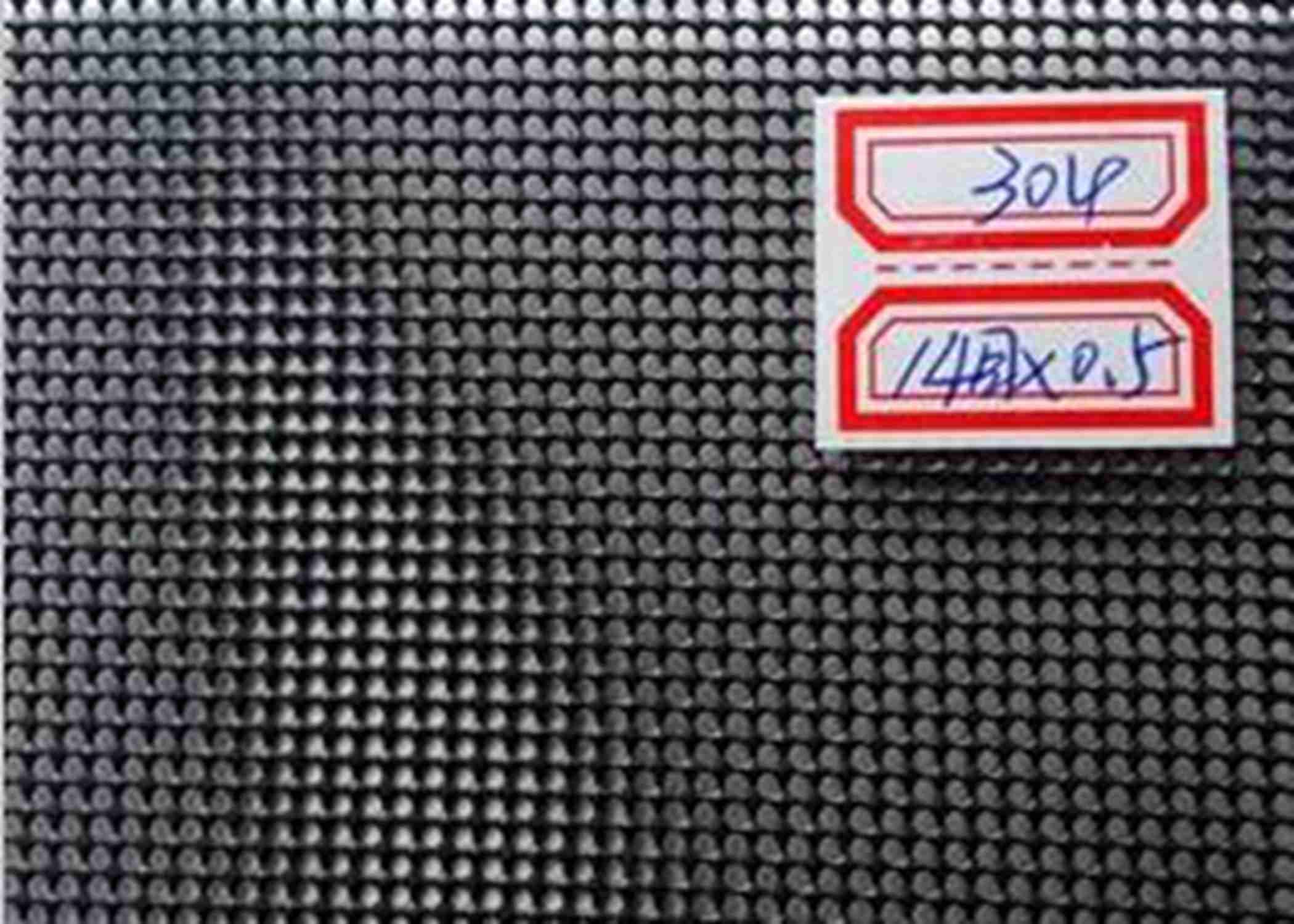

BWG 31 to BWG34 Wire Epoxy Coated Screen Anti Corrosion and Easy Cleaning
Epoxy coated screen introduction:
Epoxy coated screen is made of epoxy coated low carbon steel wire, aluminum steel wire and stainless steel wire. The epoxy coated layer makes the epoxy coated screen tough, anti-corrosion, easy cleaning. It is widely used for windows or door screens in buildings, hotels to keep insects out and good visibility.
Our Testing Standards
1. Diagonal Deviation, strict controls of +/- 5mm
2. Fine Grinding - The Surface Treatment Of 0.03mm
3. Double Plain Weave High Hardness To Bulletproof
4. Precipitation Of Metal Cons ,Non Magnetic
5. Steel Wire After Micron Grade Precision Machining
Material:
Epoxy coated low carbon steel wire, aluminum steel wire and stainless steel wire.
Coating Color:
Black, grey,white, etc
Specification:
Wire Diameter: BWG 31- BWG34.
Hole size: 12 mesh × 12 mesh, 14 mesh × 14 mesh, 14 mesh × 18 mesh, 16 mesh × 18 mesh, 20 mesh × 20 mesh, etc.
Width: 36", 40", 42", 48", 60" and so on.
Length: 25', 50', 100', etc.
Color: Black, gray, white, blue, yellow, etc.
Mesh | Gauge | Size |
---|---|---|
12 × 12,12 × 14 | BWG31-BWG34 | Width: 36", 40", 42", 48", 60",etc. Length: 25', 50', 100', etc. |
14 × 14,14 × 18 | ||
16 × 16,16 × 18 | ||
18 × 18,18 × 20 | ||
20 × 20,20 × 22 | ||
22 × 22,22 × 24 |
Mesh | Gauge | Size |
---|---|---|
12 × 12,12 × 14 | BWG31-BWG34 | Width: 36", 40", 42", 48", 60",etc. Length: 25', 50', 100', etc. |
14 × 14,14 × 18 | ||
16 × 16,16 × 18 | ||
18 × 18,18 × 20 | ||
20 × 20 |
Mesh | Gauge | Size |
---|---|---|
12 × 12,12 × 14 | BWG31-BWG34 | Width: 36", 40", 42", 48", 60",etc. Length: 25', 50', 100', etc. |
14 × 14,14 × 18 | ||
16 × 16,16 × 18 | ||
18 × 18,18 × 20 | ||
20 × 20 20 × 22 |
Features and benefits:
Light weight.
High tensile.
High elongation.
Anti-corrosion and rust.
Excellent ventilation.
Easy to wash and clean.
Application:
Epoxy coated screen is widely used as windows or doors screens to resist the bug, mosquitoes, flies and other insects in hotels, buildings and residences. The epoxy coated aluminum insect screen is one of the high grade screens usually exported to America and Europe.
Epoxy coated screen can also used as material of air filter, oil filter and gas filters.
