Electric Galvanized 100 X 50 Welded Mesh Bright Color And Smooth Surface
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Firm Structure | Clear Opening | Electric Galvanized Welded Wire Mesh |
|---|---|---|---|
| Material | Steel Wire, Iron Wire | Surface Treatment | Electric Galvanized |
| Color | Bright Silver | Type | Welded |
| Hole Shape | Square Hole Or Slot Hole | Roll Size | 36"×100ft, 48"×100ft, Etc |
| Panel Size | 3ft× 6ft, 4ft × 8ft, 5ft × 10ft | Application | Agriculture, Construction, Transportation, Mining And Other Industries. |
| Highlight | electric galvanized 100 x 50 welded mesh,smooth surface 100 x 50 welded mesh,bright 2x4 stainless steel welded mesh |
||
Product Description

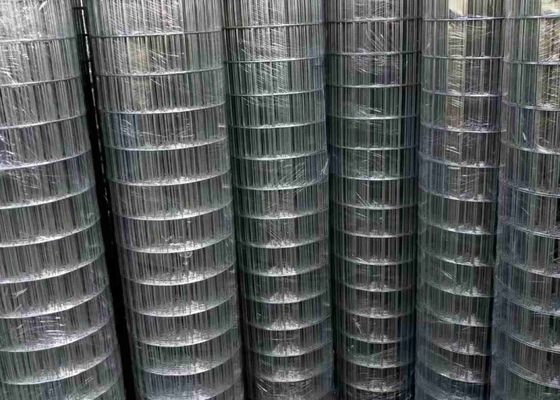

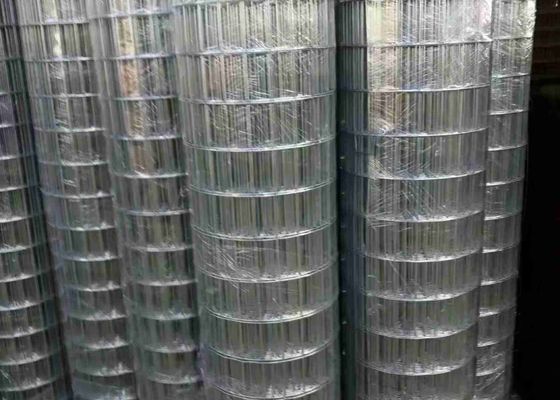

Electric Galvanized Bright Color and Smooth Surface Welded Wire Mesh
Electro Galvanized Welded Wire Mesh Introduction:
Electro Galvanized Welded Wire Mesh is made of high quality low carbon steel wire through automatic digital controlled welding equipments. It is welded with plain steel wire, then electro galvanized after welding. The finished products are level and flat with sturdy structure, it has beautiful appearance. Welded wire mesh panel Processing:
a> Hot dipped galvanizing before welding
b> Hot dipped galvanizing after welding
c> Welding with iron wire
d> Electric galvanizing after welding
e> PVC coated welded wire mesh panel
Specifications:
|
Opening Size |
Wire Diameter |
||
|
Inch |
mm |
SWG |
mm |
|
1/4" × 1/4" |
6.4 mm × 6.4 mm |
22# - 24# |
0.6 mm - 0.7 mm |
|
3/8" × 3/8" |
10.6 mm × 10.6 mm |
19# - 22# |
0.7 mm - 1.0 mm |
|
1/2" × 1/2" |
12.7 mm × 12.7 mm |
16# - 23# |
0.6 mm - 1.6 mm |
|
5/8" × 5/8" |
16 mm × 16 mm |
18# - 21# |
0.8 mm - 1.2 mm |
|
3/4" × 3/4" |
19.1 mm × 19.1 mm |
16# - 21# |
0.8 mm - 1.6 mm |
|
1" × 1/2" |
25.4 mm × 12.7 mm |
16# - 20# |
0.9 mm - 1.6 mm |
|
1" × 1" |
25.4 mm × 25.4 mm |
14# - 21# |
0.8 mm - 1.2 mm |
|
1 1/2" × 1 1/2" |
38 mm × 38 mm |
14# - 19# |
1.0 mm - 2.0 mm |
|
1" × 2" |
25.4 mm × 50.8 mm |
14# - 16# |
1.6 mm - 2.0 mm |
|
2" × 2" |
50.8 mm × 50.8 mm |
12# - 16# |
1.6 mm - 2.6 mm |
|
2" × 3" |
50 mm × 75 mm |
13# - 16# |
1.6 mm - 2.3 mm |
|
3" × 3" |
75 mm × 75 mm |
12# - 16# |
1.6 mm - 2.6 mm |
|
2" × 4" |
50 mm × 100 mm |
13# - 14# |
2.0 mm - 2.3 mm |
|
4" × 4" |
100 mm × 100 mm |
13# - 14# |
2.0 mm - 2.3 mm |
|
8" × 8" |
200 mm × 200 mm |
13# - 14# |
2.0 mm - 2.3 mm |
Other sizes as your special request.
Material:
low carbon steel wireQ195
galvanized iron wire
pvc coated iron wire
stainless steel wire
Features:
High intensity anti-high temperature.
Better strength and strong integration
Flat & even surface and strong structure
Anti-rust property
Not easy to loosen even be cut into parts or exerted force on the parts
A long service life and the service life can reach to several decades
Applicatioins:
Welded wire mesh is widely used in agriculture, construction, transportation, mining and other industries. Such as machine protective netting, animal and livestock fences, flower and tree fences, window guards, passage fences, poultry cages, egg baskets and home office food baskets, paper baskets and decorations. Mainly used for general building exterior walls, pouring concrete, high-rise residential buildings, etc. It plays an important structural role in the thermal insulation system. During construction, the hot-dip galvanized welded grid mesh is placed on the inner side of the outer wall outer mold to be poured , The external insulation board and the wall are alive at one time, and the insulation board is integrated with the wall after the mold is removed.
Packing:
in waterproof paper and film, then in pallets. Custom packing available at request.
