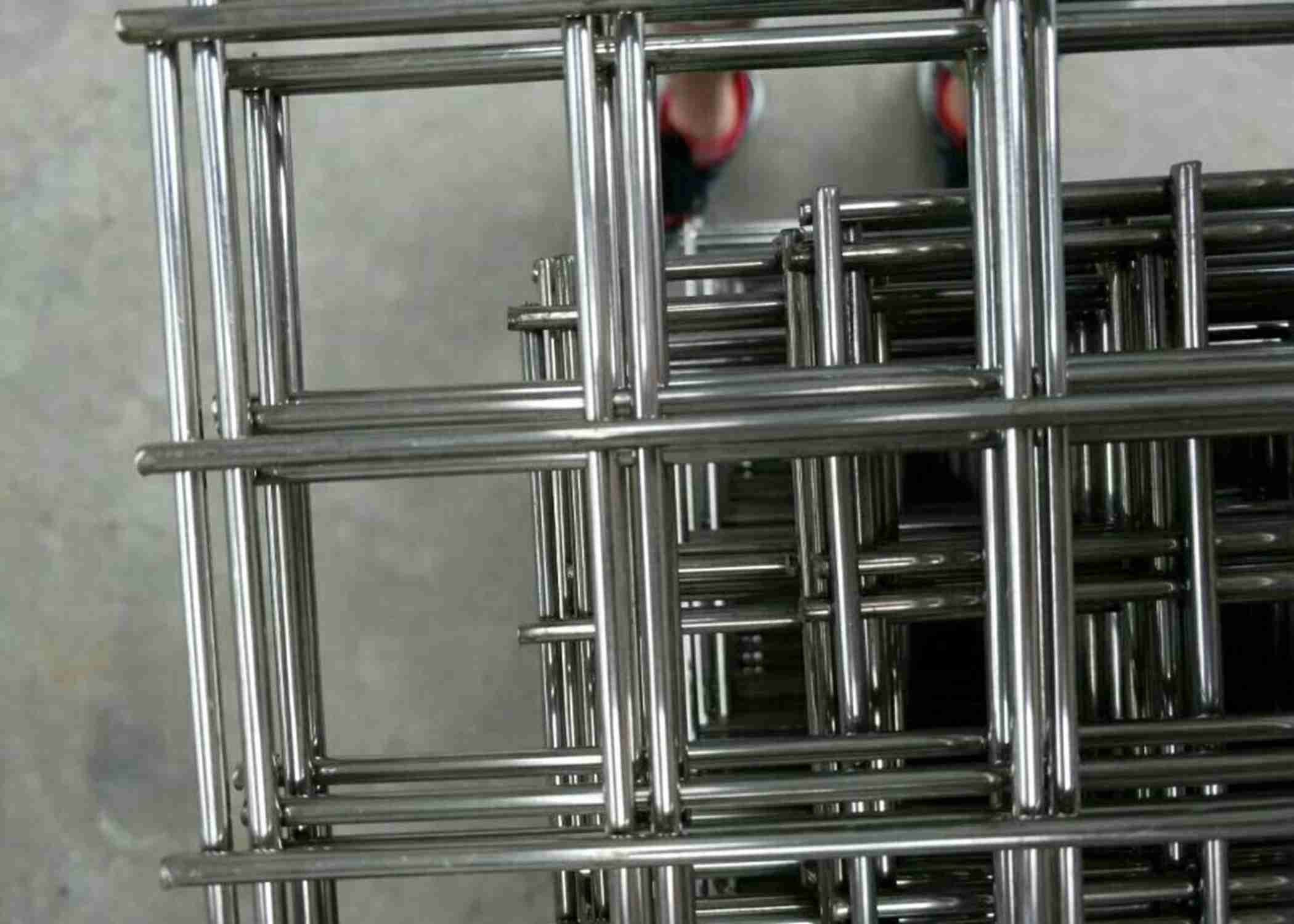

0.6m AISI SS316 Welded Wire Mesh Fencing Rolls Rectangle

  • 0.6m AISI SS316 Welded Wire Mesh Fencing Rolls Rectangle
  • 0.6m AISI SS316 Welded Wire Mesh Fencing Rolls Rectangle
  • 0.6m AISI SS316 Welded Wire Mesh Fencing Rolls Rectangle
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50 Panels
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Corrosion Resistance Product Name Corrosion Resistance SS316 Welded Mesh
Material SS316 SS316L Standard AISI, DIN, Australian Standard
Type Welded Hole Shape Square Or Rectangle
Surface Treament Polished Opening Size 1/4" To 8"
Width 0.6m, 1m, 1.2m, 1.8m, 2m, 2.5m Application Used In Coastal City, Or Marine And High Corrosion Envirorment, Aerospace Industry.
Highlight

SS316 Welded Wire Mesh Fencing Rolls

,

AISI welded wire mesh fencing rolls

,

TENGLU 0.6m welded wire fence roll
Leave a Message
Product Description

SS316 Welded Mesh Corrosion Resistance Used In Coastal City Or Areas



Stainless Steel Welded Wire Mesh



Stainless Steel Welded Wire Mesh enjoys excellent corrosion resistance, beautiful look, longer work time, when compared with galvanized welded iron wire mesh or PVC coated welded iron wire mesh. Welded wire mesh with stainless steel grades are our featured products. 1/4" opening is the smallest hole size we can offer, the max hole size we can offer is 8" or 200mm. We offer stainless steel 316 & 316L to customers, used in coastal city, or marine and high corrosion envirorment. Can be used in aerospace industry.





Material:



AISI316(DIN1.4401), AISI316L(DIN1.4404).

SS316: Similar properties to 304ss but is stabilized by the addition of Molybdenum for increased resistance to chemical corrosion. SS316L: Similar properties as 316ss but lower carbon content to permit better welding.





Specifications:





Opening Size Wire Diameter
Inch mm SWG mm
1/4" × 1/4" 6.4 mm × 6.4 mm 22# - 24# 0.6 mm - 0.7 mm
3/8" × 3/8" 10.6 mm × 10.6 mm 19# - 22# 0.7 mm - 1.0 mm
1/2" × 1/2" 12.7 mm × 12.7 mm 16# - 23# 0.6 mm - 1.6 mm
5/8" × 5/8" 16 mm × 16 mm 18# - 21# 0.8 mm - 1.2 mm
3/4" × 3/4" 19.1 mm × 19.1 mm 16# - 21# 0.8 mm - 1.6 mm
1" × 1/2" 25.4 mm × 12.7 mm 16# - 20# 0.9 mm - 1.6 mm
1" × 1" 25.4 mm × 25.4 mm 14# - 21# 0.8 mm - 1.2 mm
1 1/2" × 1 1/2" 38 mm × 38 mm 14# - 19# 1.0 mm - 2.0 mm
1" × 2" 25.4 mm × 50.8 mm 14# - 16# 1.6 mm - 2.0 mm
2" × 2" 50.8 mm × 50.8 mm 12# - 16# 1.6 mm - 2.6 mm
2" × 3" 50 mm × 75 mm 13# - 16# 1.6 mm - 2.3 mm
3" × 3" 75 mm × 75 mm 12# - 16# 1.6 mm - 2.6 mm
2" × 4" 50 mm × 100 mm 13# - 14# 2.0 mm - 2.3 mm
4" × 4" 100 mm × 100 mm 13# - 14# 2.0 mm - 2.3 mm
8" × 8" 200 mm × 200 mm 13# - 14# 2.0 mm - 2.3 mm

Other sizes as your special request.



Hole Opening: Min1/4" to Max 8"



AISI316, AISI316L Weled Wire Mesh, Used in Coastal City or Sea Water



AISI316, AISI316L Weled Wire Mesh, Used in Coastal City or Sea Water



Features:



It can withstand the corrosion caused by atmospheric / environmental or major chemical reactions.
It can resist high temperatures without going under any deformity which makes it highly recommended for fire ety doors in any building.
It has remarkable creep strength and Rupture strength.
It repels the Bacteria which makes it ideally suitable material for the venue such as Hospitals, educational Institutes, Hotels and even at home and office where higher degree of hygiene is required.
Due to its natural finish, product does not require regular cleaning or maintenance making it most suitable for public places.



Applicatioins:



As SS316(L) grade with better corrosion resistance, the welded wire mesh is mainly used in coastal city or marine environment. Widely used in agriculture, construction, breeding, transport, mining, horticulture industries. Used as security or isolation fencing, decoration, machinery protection, and other publics.



AISI316, AISI316L Weled Wire Mesh, Used in Coastal City or Sea Water

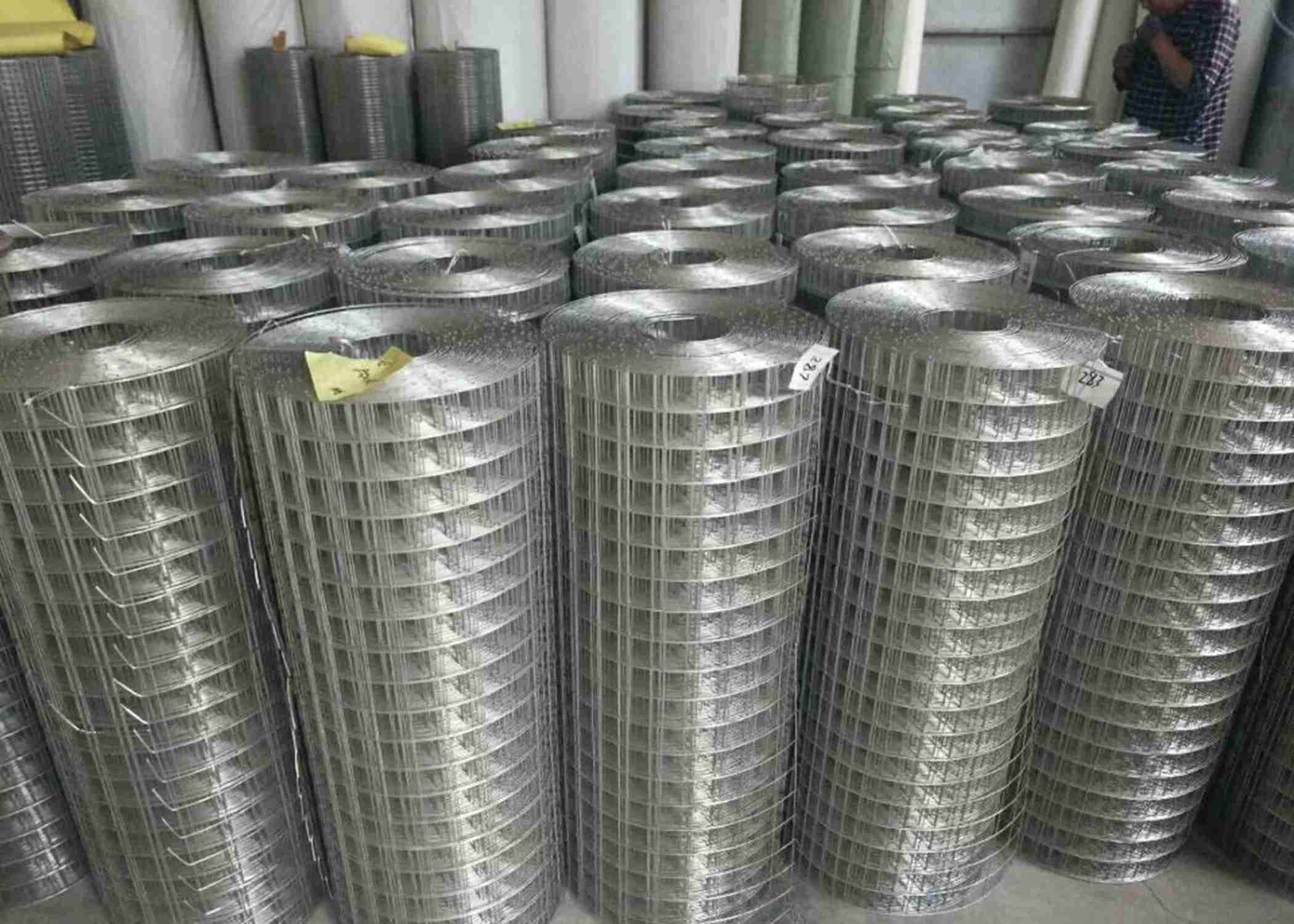

Packing:



Each roll with polyfilm with water proof paper, outside wooden pallets.



0.6m AISI SS316 Welded Wire Mesh Fencing Rolls Rectangle 3

0.6m AISI SS316 Welded Wire Mesh Fencing Rolls Rectangle 4
