Reinforcing Welded Mesh 100mm 200mm Opening SS Welded Wire Mesh 1.22mx2.44m

  • Reinforcing Welded Mesh 100mm 200mm Opening SS Welded Wire Mesh 1.22mx2.44m
  • Reinforcing Welded Mesh 100mm 200mm Opening SS Welded Wire Mesh 1.22mx2.44m
  • Reinforcing Welded Mesh 100mm 200mm Opening SS Welded Wire Mesh 1.22mx2.44m
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50 Panels
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 20 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Even Surface, Firm Structure, Precise Opening, Good Property Of Corrosion-resisting And Oxidation-Resisting, Etc. Product Name Reinforcing Welded Mesh Panels
Material Low Carbon Steel Wire, Stainless Steel Wire, Rebar Wire. Standard ASTM
Type Welded Hole Shape Square Or Rectangle
Surface Treament Polished Opening Size 100mm, 150mm, 200mm, Etc
Panel Size 1.22m X 2.44m, 2.4m X 6m, Etc Application It Is Widely Used On Building, Food, Agriculture, Etc
Highlight

200mm SS Welded Wire Mesh

,

200mm 100mm SS Welded Wire Mesh

,

2.44m welded wire mesh fence panels
Leave a Message
Product Description

Reinforcing Welded Mesh Panels Mainly With 100mm And 200mm Opening



Reinforcing Welded Mesh Panels



This reinforcement welded wire mesh panels are made of ribbed steel bars bonded via spot welding for slab and wall constructions. The ribbed steel rod used can improve bonding to the concrete and minimize any concrete cracking that may occur as a result of concrete shrinkage. This feature enables the ribbed steel weld mesh widely used as building materials for block slab structure reinforcing, and hollowed slabs reinforcement, building wall reinforcement and support wall reinforcement. In practical uses, it is commonly used with bar chairs as supports.



Materials and Types: Ribbed steel bar mesh can be divided into three types according to materials: Hot dipped galvanized, electro galvanized or stainless steel. It can be divided into two types according to steel bar sizes used: heavy type (diameter of bar or rod 12mm minimum) and light type (diameter of rebar rods from 3mm up to 10mm). Ribbed steel welded mesh can be divided into square hole and rectangular hole according to the opening types.



The popular panel size of this reinforcing mesh is 6m length ×2.4m width. It comes in a variety of bar thickness and the internal square or rectangular sizes. Common square mesh are either 200×200mm or 100×100mm.





Specifications:



Common Reinforcing Mesh Specifications
Products Fabric Mesh Size Nominal Pitch of Wire Wire Sizes Cross Sectional area/m width Nominal mass/m2 Package
Ref No. Main mm Cross mm Main mm Cross mm Main mm Cross mm Kg Supplied in
Square Mesh Fabric 888 200 200 12 12 566 566 8.88 sheets only
746 200 200 11 11 475 475 7.46 6 m × 2.4 m
617 200 200 10 10 393 393 6.17 　
500 200 200 9 9 318 318 5 　
395 200 200 8 8 251 251 3.95 　
311 200 200 7.1 7.1 198 198 3.11 　
245 200 200 6.3 6.3 156 156 2.45 　
193 200 200 5.6 5.6 123 123 1.93 sheets or rolls
100 200 200 4 4 63 63 1
Design Mesh Fabric 1085 100 200 12 8 1131 251 10.85 sheets only
943 100 200 11 8 951 251 9.43 6 m × 2.4 m
772 100 200 10 7.1 786 198 7.72 　
655 100 200 9 7.1 636 198 6.55 　
517 100 200 8 6.3 503 156 5.17 　
433 100 200 7.1 6.3 396 156 4.33 　
341 100 200 6.3 5.6 312 123 3.41 　
289 100 200 5.6 5.6 246 123 2.89 　
Longitudinal Mesh Fabric 278 100 300 6.3 4 312 42 2.78 sheets only
226 100 300 5.6 4 246 42 2.26 6 m × 2.4 m
133 100 300 4 4 126 42 1.33 sheets or rolls
Special Mesh 200 100 100 4 4 126 126 2 60 m × 2.4 m
156 100 100 3.55 3.55 99 99 1.56 　



Australia/New Zealand Standard AS/NZS 4671:2001(SIZE:6000X2400mm)
Ref No. Longitudinal Wires(mm) Edge Wires(mm) Cross Wires(mm) Mass(Kg)
SL81 (F81) 7.6 @ 100 7.60 @ 100 7.60 @ 100 105
SL102 (F102) 9.5 @ 200 6.75 @ 100 9.50 @ 200 80
SL92 (F92) 8.6 @ 200 6 @ 100 8.60 @ 200 66
SL82 (F82) 7.6 @ 200 5.37 @ 100 7.60 @ 200 52
SL72 (F72) 6.75 @ 200 4.77 @ 100 6.75 @ 200 41
SL62 (F62) 6 @ 200 4.77 @ 100 6 @ 200 33
SL52 (F52) 4.77 @ 200 4.77 @ 100 4.77 @ 200 21



Material:



Low carbon steel wire, stainless steel wire, rebar wire.



Features:



1) Reinforcing Mesh mats are the most commonly used form of prefabricated reinforcement and is particularly suitable for flat slab construction and concrete surface beds. Other designed applications include:
2) Retaining and shear walls;
3) Beams and columns;
4) Concrete paving overlays;
5) Precast concrete elements, etc.



Applicatioins:



Generally used in surface beds (concrete floor slabs on fill) and concrete roads, mesh can also be used in suspended floor slabs, concrete walls, culverts / drains and composite brick / concrete retaining walls. Details as follows:
1. Surface beds (concrete floor slabs on fill) and concrete roads
2. Suspended floor slabs, concrete walls, culverts / drains and composite brick / concrete

retaining walls as concrete reinforced mesh
1. In construction of housing floor, roof wall, terrace, concrete pavement.
2. Deck paving, airport runway, tunnel lining, concrete pipes, piles of industry and civilian.

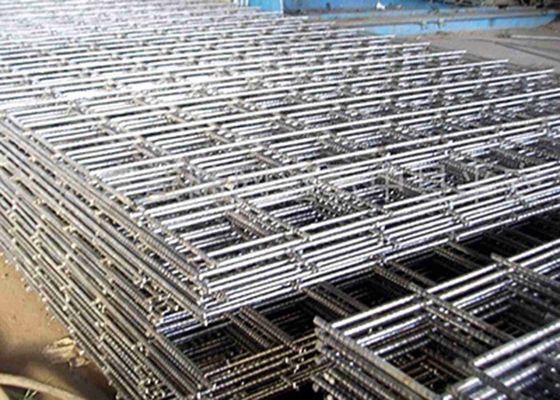

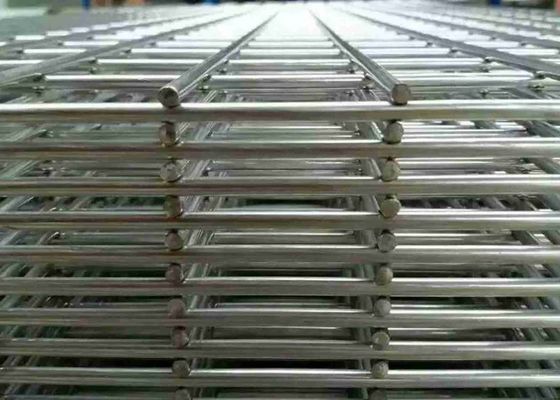

Reinforcing Welded Mesh Panels, Mainly With 100mm / 200mm Mesh Size




Packing:



Each roll with polyfilm with water proof paper, outside wooden pallets.



Reinforcing Welded Mesh 100mm 200mm Opening SS Welded Wire Mesh 1.22mx2.44m 1
