Convex Surface Stainless Steel Mesh Conveyor Belt 5mm To 20mm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Temperature Resistance, Which Can Be Used In Extremely High And Low Temperatures. | Product Name | Perforated Plate Conveyor Belt |
|---|---|---|---|
| Material | Stainless Steel Plate | Standard | AISI, DIN, SUS, Etc |
| Surface | Bright Silver | Cross Rod Diameter | 5mm - 20mm. |
| Plate Thickness | 1mm - 4mm | Pitch | 25.4mm - 125mm |
| Width | 0.4m To 4m, Special Specs Are Available. | Application | Temperaturconveying High Density And Slight Products.es. |
| Highlight | Convex stainless steel mesh conveyor belt,5m stainless steel mesh conveyor belt,20mm steel conveyor belt |
||
Product Description

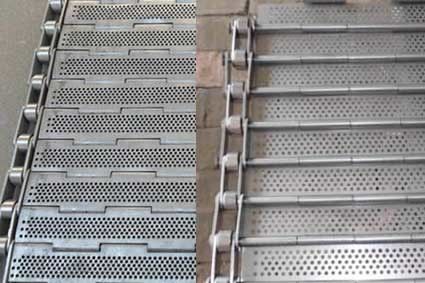

Stainless Steel Perforated And Convex Surface Perforated Plate Conveyor Belt
Perforated plate conveyor belt Introduction:
Perforated plate conveyor belt, also called hinged steel belting, plate link conveyor belts. It is made of stainless steel plate, which is perforated into several round holes plate. The stainless steel plate has outstanding chemical stability, which is corrosion, rust and temperature resistance. Stainless steel perforated plate conveyor belt is stable and long service life, which is suitable for conveying high density and slight products.

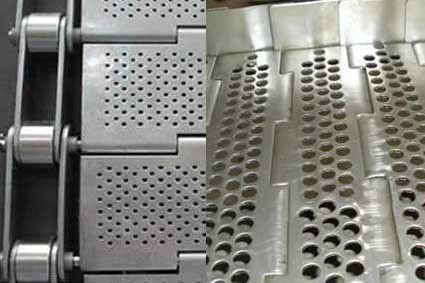

The perforated plate conveyor belt is combined with perforated plate and chain link edges. The perforated plate bending to form hinges. The hinges are connected by the cross rods. And then the cross rods are fixed onto the chain link edges to form a solid and durable structure.
Material:
Carbon steel metal plate conveyor belt.
Stainless steel plate chain conveyor belt.
Galvanized steel plate chain conveyor belt.
Features of metal plate conveyor belt:
Stable operation. The flat and smooth surface supplies large conveying surface and stable conveying.
Convenient installation. The installation of metal plate conveyor belt has simple structure, which can be installed and replaced conveniently and fast.
Suitable for medium and heavy load transportation. The metal plate conveyor belts have large conveying surface and they can self support in heavy duty applications.
Corrosion and rust resistance. Various anti-corrosive materials and surface treatments ensures the metal plate conveyor belts corrosion and rust resistance. It can be used in harsh environments and arduous conditions.
Durable and long service life. The material of metal plate conveyor belt is tough, which can be used in good condition for long service life.
Applications of metal plate conveyor belt:
Transporting.
Drainage.
Sorting.
Elevating.
De-elevating.
Waste treatment.
Blanching.
Drying.
Specifications of perforated plate conveyor belt
| Pitch (mm) |
Rod diameter (mm) |
Plate thickness (mm) |
|---|---|---|
| 25.40 | 5.00 | 1.00 |
| 25.40 | 6.00 | 1.00 |
| 25.40 | 6.00 | 1.50 |
| 31.75 | 6.00 | 1.00 |
| 31.75 | 6.00 | 1.50 |
| 31.75 | 8.00 | 2.00 |
| 38.10 | 6.00 | 1.00 |
| 38.10 | 6.00 | 1.50 |
| 38.10 | 8.00 | 1.00 |
| 38.10 | 8.00 | 1.50 |
| 38.10 | 8.00 | 2.00 |
| 50.80 | 8.00 | 1.00 |
| 50.80 | 8.00 | 1.50 |
| 50.80 | 10.00 | 2.00 |
| 50.80 | 10.00 | 3.00 |
| 63.50 | 10.00 | 1.50 |
| 63.50 | 10.00 | 2.00 |
| 63.50 | 10.00 | 3.00 |
| 80.00 | 8.00 | 1.50 |
| 80.00 | 8.00 | 2.00 |
| 80.00 | 10.00 | 2.00 |
| 80.00 | 10.00 | 2.50 |
| 100.00 | 10.00 | 1.50 |
| 100.00 | 10.00 | 2.00 |
| 100.00 | 10.00 | 2.00 |
| 100.00 | 14.00 | 2.00 |
| 100.00 | 14.00 | 3.00 |
| 101.60 | 10.00 | 4.00 |
| 101.60 | 14.00 | 4.00 |
| 125.00 | 20.00 | 3.00 |
Packing:
Warpped with water-proof plastic material, then in wooden box.
