0.9mm To 2.8mm Flat Flex Wire Conveyor Belt With Various Edge

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 50m length
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case.
Delivery Time 2weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Large Open Area, Economical, Lightweight, Etc Product Name Flat Flex Conveyor Belt
Material Stainless Steel Standard AISI, DIN, SUS, Etc
Surface Bright Silver Belt Edge Single Loop Edge, Double Loop Edge, C-shaped Loop Edge
Wire Diameter 0.9mm To 2.8mm, Special Specs Are Available. Pitch 4mm To 20mm, Special Specs Are Available.
Width 0.4m To 4m, Special Specs Are Available. Application Food Industry, Etc
High Light

0.105'' Flat Flex Wire Conveyor Belt

,

0.105'' 2.8mm Wire Conveyor Belt

,

0.105'' 0.9mm flat flex conveyor belt

Leave a Message
Product Description

Simplest Type Wire Mesh With Various Edge Belt Flat Flex Conveyor Belt





Flat Flex Conveyor Belt



Flat flex conveyor belt is the simplest type among all type of steel mesh conveyor belt. The materials of flat flex conveyor belt are stainless steel, high carbon steel, galvanized steel and other steel wires.



Flat flex conveyor belt is constructed by several loop wires and then be formed different edge. The simple structure make it economical and lightweight. It can help to save cost and reduce downtime.



The standard flat flex conveyor belt is flat and without any convex or concave surface. The standard flat flex conveyor belt is suitable for almost all the applications. Except for the standard flat flex conveyor belt, there are two other types of flat flex conveyor belt. They can be used in different applications for fixing and sorting. You can refer to them and decide if it suit for you.



Common Materials: AISI/SUS 304, 304L, 316, 316L.



Specifications



Specification of Rod Network Ladder Belt

Wire Diameter

(mm)

Pitch

(mm)

Open Area

(%)

Edge Type

0.9

4.24

77

single/double

0.9

5.64

82

single/double

1.0

5.5

79

single/double

1.0

5.6

79.5

single/double

1.27

4.3

67

single

1.27

5.5

73

single/double

1.27

6.0

76

single/double

1.27

6.35

77

single/double

1.27

7.26

80

single/ double

1.40

6.40

76

single

1.60

7.26

75

single/ double

1.83

12.00

81

single

1.83

12.70

82

single

2.08

9.60

75

single

2.35

12.70

78

single

2.35

20.32

85

single

2.80

12.70

72

single

Other specifications at your requests.

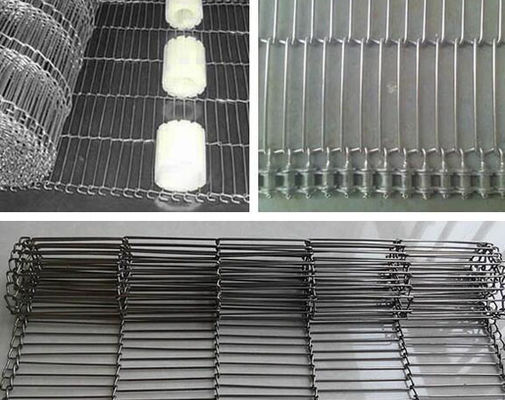

0.9mm To 2.8mm Flat Flex Wire Conveyor Belt With Various Edge 0



0.9mm To 2.8mm Flat Flex Wire Conveyor Belt With Various Edge 1



Three types of flat flex conveyor belt edge:



Single loop edge.

Double loop edge.

C-shaped loop edge.



0.9mm To 2.8mm Flat Flex Wire Conveyor Belt With Various Edge 2



Belt Drawing Details:



AISI304, AISI316 Rod Work Ladder Belt, Single Loop Edge & Double Loop Edge

0.9mm To 2.8mm Flat Flex Wire Conveyor Belt With Various Edge 4



Features:



Large open area.
Economical.
Lightweight.
High temperature resistance.
Good air circulation.
Easy to clean and save maintenance cost.
Durable and long lifespan.
Different edges for choice.
Barriers can be added onto the belts.
Chain link and other driven types.
Curved rod network belt to suit different machines.



Applications:



The ladder belt has many different applications. Several common applications are mentioned below:

Cooling systems in for example bread & pastry industry.
Belt in filtering installations.
Washing systems.
Drying systems.

Canned food processing.

Conveyor belt in installations for baking, frying, grilling, etc.

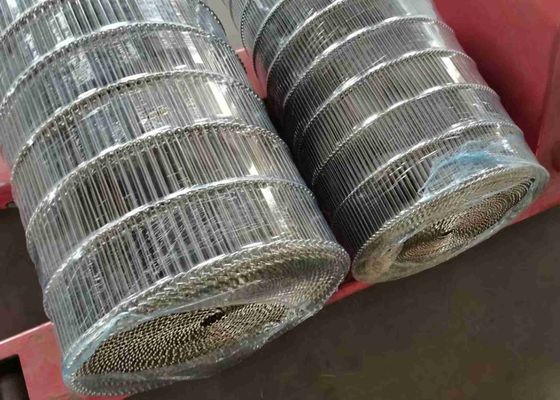

Packing:



Warpped with water-proof plastic material, then in wooden box.



0.9mm To 2.8mm Flat Flex Wire Conveyor Belt With Various Edge 5
