Stainless Steel 5 Layers Sintered Wire Mesh Filters , 2 To 60 Micron Wire Mesh Filter Disc
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Excellent Strength, No Inner Support Is Required For Making Filter Elements | Product Name | Sintered Mesh Filter Disc |
|---|---|---|---|
| Material | SS302, SS304, SS304L, SS316, SS316L, Etc. | Technique | Perforated; Woven |
| Number Of Layers | 5 Layers | Layers | 2 To 6 Layers. |
| Filter Precision | 2- 60micron | Dutch Weave Mesh Counts | Woven Wire Mesh, Perforated Wire Mesh |
| Standard | ASTM AISI | Application | Excellent Strength, No Inner Support Is Required For Making Filter Elements |
| Highlight | Sintered Wire Mesh Filters,TENGLU 300 model 5 Layers Wire Mesh Filters,TENGLU 300 model 60 Micron wire mesh filter disc |
||
Product Description

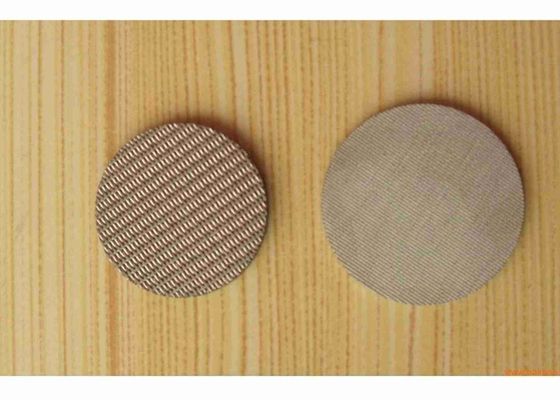

Stainless Steel 5 Layers Sintered Mesh Disc Wire Mesh Filters
Sintered mesh filter introduction:
Stainless Steel Sintered Wire Mesh, it is a filtering cloth made by pressing multi-layer woven wire cloth, then sintered together in vacuum furnace. This kind of filtering cloth is much better than common metal woven wire mesh with good strength, hardness and good positioning of opening. Its comprehensive property is superior to sintered metal powder and porcelain.
Sintered mesh filter disc is single or multiple layers of diffusion-bonded woven wire mesh laminates. Through precision sintering and calendaring, filter disc is equipped with several important properties for better filtration. The prominent features will be mechanical strength, stable mesh aperture and low-pressure drop. Sintered filter disc is designed to provide economical filtration media to critical areas such as hydraulic, valve, pump, servo and other applications.
Our R&D team has been always developing new filtration media model to the market to better solve customers' filtration troubles. Apart from common flat filter discs, pleated filter discs are getting popular. Pleated sintered mesh filter discs provides much more filtration area than typical flat filter discs. Hence, for high viscosity liquid filtration, pleated filter disc is the exact choice. Besides, customized filter discs are welcome.
Specifications
| Type | Nominal Micron | Structure | Air Permeability | Bubble |
| A | (µ) | Pressure | ||
| (5 layers) | (L/min×cm2×pa) | (Pa) | ||
| A5-1 | 1 | 100+400×2800+100+12×64+64×12 | 1.8 | 5300-6000 |
| A5-2 | 2 | 100+325×2300+100+12×64+64×12 | 2.4 | 4300-5000 |
| A5-5 | 5 | 100+200×1400+100+12×64+64×12 | 2.6 | 3000-3700 |
| A5-10 | 10 | 100+165×1400+100+12×64+64×12 | 3.1 | 2700-3300 |
| A5-15 | 15 | 100+165×1200+100+12×64+64×12 | 3.5 | 2000-2600 |
| A5-20 | 20 | 100+200×600+100+12×64+64×12 | 4.5 | 1800-2300 |
| A5-25 | 25 | 100+165×600+100+12×64+64×12 | 6.2 | 1400-1900 |
| A5-30 | 30 | 100+120×600+100+12×64+64×12 | 6.9 | 1200-1700 |
| A5-40 | 40 | 100+60×270+100+12×64+64×12 | 4.2 | 1000-1500 |
| A5-50 | 50 | 100+50×270+100+12×64+64×12 | 8.5 | 900-1200 |
| A5-70 | 70 | 200 Mesh | 9 | 700-1100 |
| A5-100 | 100 | 184Mesh | 10.8 | 650-1000 |
| A5-150 | 150 | 150Mesh | 26 | 550-800 |
| A5-200 | 200 | 100Mesh | 28 | 450-600 |
| A5-300 | 300 | 78Mesh | 32 | 350-400 |
Other specifications according to your requirements.
Major Characteristics:
Excellent strength, no inner support is required for making filter elements; no material; easily repeated cleaning; long lifespan; good anti-corrosion.
Gas turbine engines.
Pump.
Hydraulic filtration.
Fuel & air injection.
Fire control equipment.
Hydraulic filtration.
Fuel & air injection.
Fire control equipment.
Uses:
Gas turbine engines.
Pump.
Hydraulic filtration.
Fuel & air injection.
Fire control equipment.
Pump.
Hydraulic filtration.
Fuel & air injection.
Fire control equipment.
Major Technical Data:
Filtering Fineness: 2-60micron.
Work Temperature: -20°C to 600°C.
Max. Pressure Drop: 3.2Mpa.
Max. Size: Width: 500mm; Length: 1000mm.
Layer: 2 to 6 layers.

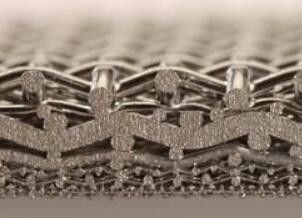

Construction Diagram
