Single Layer 4 Mesh To 200 Mesh Wire Mesh Filters

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Precise Wire Mesh Filtration Product Name Extruder Screen
Material Stainless Steel 304, 316, 304L, 316L, Galvanised Mild Steel, Etc Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Oval, Also Can Be Customized Layers Single Or Multilayers.
Mesh Counts Up To 635 Dutch Weave Mesh Counts Up To 325 X 2300
Length Commonly Is 30m, Other Specs Can Be Customized. Application Melt Filtration Process, Plastic & Rubber Reclamation, Etc
High Light

0.1m 200 Mesh Wire Mesh Filters

,

0.1m 4 Mesh Wire Mesh Filters

,

0.1m Single Layer metal filter mesh

Leave a Message
Product Description

4 to 200mesh Precise Rating Extruder Screen For Melt Filtration Wire Mesh Filters



Stianless steel extruder screen



Stianless steel extruder screen can be divided into stainless steel woven wire mesh, stainless steel dutch weave wire mesh, stainless steel perforated metals.



Our company has been focusing on manufacturing a wide assortment of extruder screens covering plastic, rubber processing, and plastic extrusion and reclamation applications to ensure a clean and viable extrusion. To match with the requirement of the customers', diverse extrusion screen filters are supplied including common disk shape, oval, rectangle, kidney to any unique shapes with or without borders.



Plastic & melt extruder screen packs are made of woven wire mesh and the common material is stainless steel 304L & 316L. The mesh filter is available in plain, dutch or twill weave styles to receive the filtration requirement. The apertures can be produced from 10 to 1000 microns.



Specifications:



Type: Filter Disc

Hole Shape: Square or round

Thickness: 80-1000um
Length: 0.1m-1m
Width: 0.1m-1m
wire dia: 0.02mm-5mm
Weave style: woven, dutch weave and perforated metals
Mesh: 10-1500 mesh
surface: clean, tidy
Color: stainless steel
Material: stainless steel wire or stainless steel sheet

Mesh Count Wire Diameter (mm) Aperture (mm)
6 × 6 0.900 3.31
10 × 10 0.56 1.98
20 × 20 0.4 0.9
30 × 30 0.28 0.57
40 × 40 0.224 0.411
50 × 50 0.20 0.31
60 × 60 0.16 0.263
80 × 80 0.14 0.178
100 × 100 0.112 0.142
120 × 120 0.09 0.122
150 × 150 0.063 0.109





Stainless steel wire:


SU302,304,316,304L,316L,310S,321 ,hastelloy wire, inconel wire, monel wire, incoloy wire, nickel wire etc.
Stainless Steel Extruder Screen for Filters With 4 to 200mesh/inch




Stainless Steel extruder screen Product Features:


Heat, acid, corrosion resistance, wear resistance. Surface smooth, clean, non-toxic, health, environmental protection
1, the filter effect is very stable: in the production process selected high quality raw materials to the use of the process is not easy deformation;
2, strength: high-quality materials with high pressure resistance, can withstand greater intensity of work;
3, the cleaning is simple: a single layer of filter material having a clean simple features, especially for backwash;
4, high temperature performance: up to withstand high temperatures of around 480 ℃;
5, with corrosion resistance: stainless steel material itself has ultra-high corrosion and wear resistance;
6, ease of processing: high-quality materials, whether cutting, bending, stretching, welding and other procedures can be completed well.



Filtrations:



Plastic & rubber reclamation.
Extrusion of plastic profiles.
Blown film extrusion.
Plastic & rubber processing machinery.
Melt filtration process.

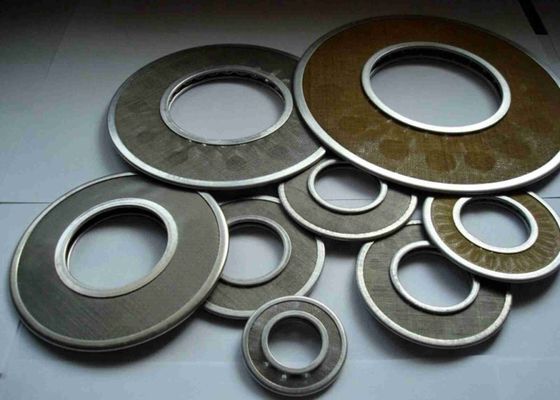

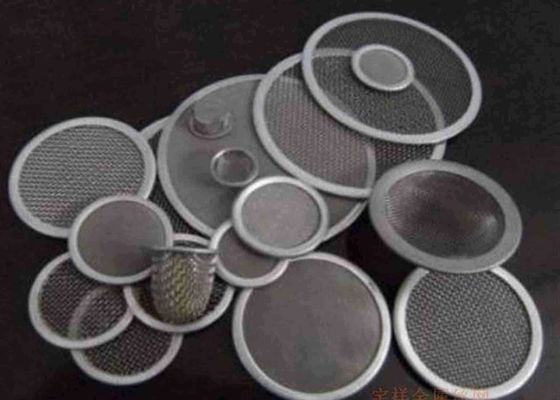

Single Layer 4 Mesh To 200 Mesh Wire Mesh Filters 1Single Layer 4 Mesh To 200 Mesh Wire Mesh Filters 2

Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh





Our Wire Mesh Filter Product List:

Wire Mesh Filter
Panel Filter
Pleated Filter Element
Cylinder Filter Element
Brewing Filter
Air Filter Elements
Stainless Steel Filter Cartridge
Hydraulic Filter Elements
Gas & Diesel Universal Filter Elements
Diesel Oil Filter
Suction Strainers
Wire Mesh Filter Discs
Filter Wire Cloth
Filter Belts
Filter Wire Mesh (Knitted)
Filter Metal Sheet (Perforated)
Pack Filter Screen
Wire Cloth Strainers
Basket Filter
Wire Cloth Filter Parts
Candle Filters
Mist Eliminator
Dust Collector Filter Cartridge

Woven Wire Mesh Filter

Extruder screen

Sintered Mesh Filter Disc

Sintered Mesh Filter Disc

etc
