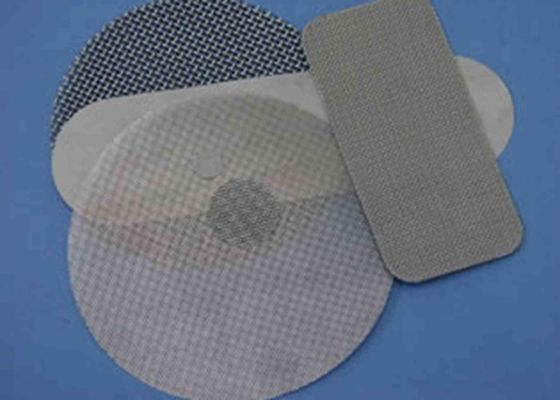

Woven Round 150 To 600 Micron Fine Mesh Screen Filter

  • Woven Round 150 To 600 Micron Fine Mesh Screen Filter
  • Woven Round 150 To 600 Micron Fine Mesh Screen Filter
  • Woven Round 150 To 600 Micron Fine Mesh Screen Filter
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5000Pcs
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden.
Delivery Time 10days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Even Meshes And Smooth Surface Product Name Wire Mesh Filter Disc
Material Stainless Steel Wire Or Punched Plate Weaving Plain Weave, Twill Weave, Dutch Weave
Shape Round, Rectangular, Square, Oval, Also Can Be Customized Wire 0.15 To 0.6mm
Mesh Counts Up To 635 Dutch Weave Mesh Counts Up To 325 X 2300
Width 0.914 To 1.2m Length Commonly Is 30m, Other Specs Can Be Customized.
Application Widely Used As The Filtration Material In Various Fields
Highlight

600 Micron Fine Mesh Screen Filter

,

150 Micron Fine Mesh Screen Filter

,

Woven stainless mesh filter
Leave a Message
Product Description

Stainless Steel Woven Type Round Shape for Fine Filtration Wire Mesh Filters



Stainless Steel Wire Mesh Filter Introduction



Wire mesh filter is one of the most versatile media in the field of surface filtrations. The micron-leveled apertures are uniformly and precisely distributed, giving mesh filter greater accuracy, and can be used to filter the smallest particles in the world including a multitude of industries and applications like plastic & rubber reclamation.



Our metal woven cloth filter is woven by different weave types and materials to suit the market requirements. The common weave types include plain dutch & twill dutch. The former is designed for high flow and the latter for fine filtration. Apart from these two types, custom types are available such as reverse dutch weave & twill weave.



Stainless steel filter mesh is the most popular item for its good properties in resisting high temperatures, corrosions and deformation. Other materials are possible including galvanised steel, copper and other alloy steels.



Square wire Mesh Specifications:



Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot
Inch MM Inch MM
90X90 0.005 0.127 0.0061 0.16 30.1 15.8
100X100 0.0045 0.114 0.0055 0.14 30.3 14.2
100X100 0.004 0.102 0.006 0.15 36 11
100X100 0.0035 0.089 0.0065 0.17 42.3 8.3
110X110 0.004 0.1016 0.0051 0.1295 30.7 12.4
120X120 0.0037 0.094 0.0064 0.1168 30.7 11.6
150X150 0.0026 0.066 0.0041 0.1041 37.4 7.1
160X160 0.0025 0.0635 0.0038 0.0965 36.4 5.94
180X180 0.0023 0.0584 0.0033 0.0838 34.7 6.7
200X200 0.0021 0.0533 0.0029 0.0737 33.6 6.2
250X250 0.0016 0.0406 0.0024 0.061 36 4.4
270X270 0.0016 0.0406 0.0021 0.0533 32.2 4.7
300X300 0.0051 0.0381 0.0018 0.0457 29.7 3.04
325X325 0.0014 0.0356 0.0017 0.0432 30 4.4
400X400 0.001 0.0254 0.0015 0.37 36 3.3
500X500 0.001 0.0254 0.001 0.0254 25 3.8
635X635 0.0008 0.0203 0.0008 0.0203 25 2.63




Dutch Weave Mesh Specifications:



Specifications of Micronic Filter Discs
Weave Type Mesh Count Warp Wire Weft Wire Nominal Rating Weight
(Inch) (Inch) (Micron) per sq.ft
Plain 8x20 0.014 0.0126 280 0.765
Plain 12x64 0.024 0.0165 200 0.35
Plain 24x110 0.015 0.011 80 0.245
Plain 30x150 0.009 0.007 63 0.168
Plain 30x150 2 x .009 .007" 60 0.168
Plain 40x200 0.007 0.0055 55 0.129
Plain 50x250 0.0055 0.0045 40 0.104
Twill 80x700 0.004 0.003 25 0.113
Twill 165x800 0.0028 0.002 15 0.0724
Twill 165x1400 0.0028 0.0016 10 0.0725
Twill 200x1400 0.0028 0.0016 5 0.073
Twill 325x2300 0.0014 0.001 2 0.045



Other specifications as your requests.



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Precise aperture for filtration.
Extremely high temperature.
Excellent corrosion resistance.
Washable, reusable & durable.
Any bespoke shape available.



Material: Stainless Steel 304, 304L, 316, 316L, etc.



Weaving Methods: Plain Dutch Weave, Twill Dutch Weave

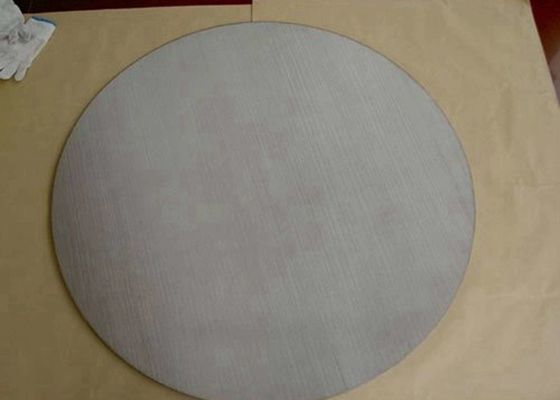

Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh



Dutch weave wire mesh also known as “Hollander weave mesh” is ideal for high-pressure filtration as this is stronger and more durable than plain weave wire meshes. The Dutch uses larger diameters and each weave pattern is made up of a limited number of warp wires, which are interwoven with weft wires creating a cloth that can withstand strong pressure. This type of mesh is usually used for liquid filtration for petrochemical, aerospace, pharmaceutical and even on wastewater treatment facilities.



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh



Application:



Food & Beverage.
Printing.
Paper Making.
Petroleum & Chemical Industry.
Plastic & Rubber Reclamation.
Oil & Gas Filtration.
Hydraulic Filtration.



Packing:



Micronic Filter Discs, Stainless Steel 304/ 316, Dutch Weave Wire Mesh
