0.2mm To 100mm Perforated Metal Mesh Stainless Steel 3 Gauge To 36 Gauge

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls or Panels
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features High Corrosion Resistance Product Name Perforated Metal Mesh Tubes
Material Stainless Steel, Iron Wire, Copper, Brass, Aluminum, Aluminum Alloys, Etc. Hole Shape Round, Square, Slot, Etc.
Punched Perforated Filter Precision 2-2000 µm
Layers Single Layer Or Multiple Layers Thickness 3 Gauge - 36 Gauge.
Hole Opening 0.2mm To 100mm Application Good Choice For Decoration
High Light

100mm Perforated Metal Mesh

,

0.2mm Perforated Metal Mesh

,

36 Gauge perforated mesh screen

Leave a Message
Product Description

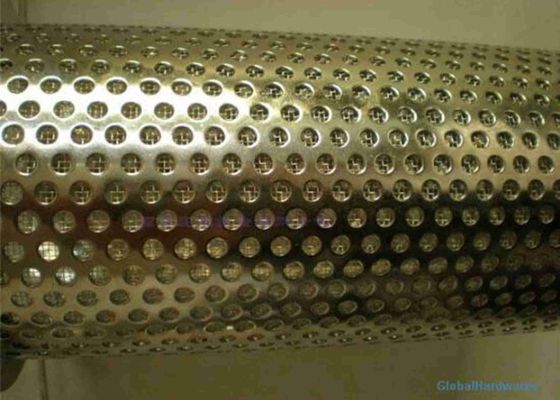

Perforated Tubes for Filtration Smooth Surface Firm Structure Perforated Metal Mesh



Round Hole Perforated Tube/ Perforated Tube Filter Introduction:



Perforated steel tube is more cost-efficient compared with the other two types like stainless steel tube and aluminum tube. Though carbon steel is subjective to corrosion and rust, external protective coating will remedy its shortcomings. The frequent method to resolve corrosion problems is hot-dip galvanization, electro galvanization or other powder coated. These finish options greatly improve their service time and recyclability. Steel perforated pipe are fabricated with diverse end forms, perforation patterns and margins. You can choose any kind to suit your special purpose.



Perforated filter made of perforated sheet, can be classified into perforated cylinder filter, perforated basket filter, perforated cone filter and perforated tube filter. Generally it is made of stainless steel, carbon steel, aluminum or copper sheet and the hole shape is round or square. With accurate filtration rate, perforated filter can filter a large variety of fluids and retain almost any size solids. With high mechanical strength, perforated filter is mainly used in petroleum, chemical industry, pharmacy, food making filtration and sewage water filtration, etc.





Round Hole Perforated Tube Specifications



Pipe Size Holes Per Feet Size of Hole
3/4" 78 3/16"
1" 54 5/16"
1-1/4" 66 5/16"
1-1/2" 78 5/16"
2-1/16" 78 5/16"
2-3/8" 90 3/8"
2-7/8" 102 3/8"
3-1/2" 126 3/8"
4" 138 3/8"
4-1/2" 150 3/8"
5" 162 3/8"
5-1/2" 174 3/8"



Other Specifications according to your requirements.

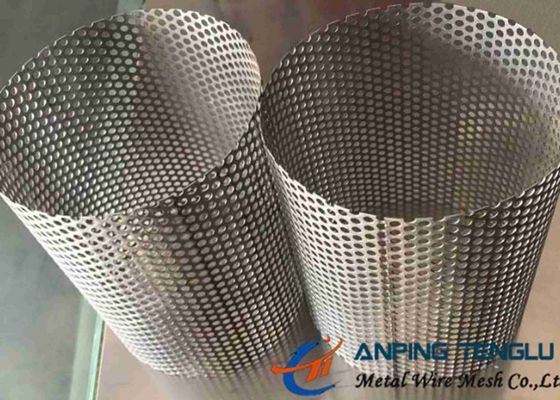

Stainless Steel Perforated Tubes, Round Hole With Different Patterns



Material:



Stainless Steel plate. Aluminum plate, galvanized steel plate, alloy plate, iron plate, carbon steel plate, copper plate are available.



Surface Treatment:



electrolytic polishing, galvanization, sandblasting, pickling and passivation.



Frame structure: margin or no margin



Pattern Angle of Round Hole Perforated Metal:



Stainless Steel Perforated Tubes, Round Hole With Different Patterns



1) 45° Round Hole Perforated;

2) 60° Round Hole Perforated staggered arrangement is also called ‘plum arrangement’, which provide natural high strength and wide open area, being the most popular angle in perforated hole arrangement;

3) 90° Round Hole Perforated, straight arrangement for perforated metal.



Features:



High porosity and excellent permeability.
Corrosion resistance and high temperature resistance.
Accurate filtration precision.
Easy processing and installing.
Easy forming, painting, polishing, welding and cleaning.
Firm structure and different hole patterns.



Applications:



Perforated metal filter is widely used in petroleum, chemistry, metallurgy, machine, medicine, automobile industries for distillation, absorption, evaporation and filtration processes, so as to eliminate the impurity and foam mixed in the gas and liquid.

Filtration of air: air filters, vacuum filters, filtration of corrosive gases, cage ventilation, etc.
Filtration of liquid: ceramics polluted water cleaning, beverage, disposal of sewage water, filtration of corrosive liquids, beer brewing filter, etc.
Filtration of solid: glass, coal, food processing industry, cosmetics, fluidised beds, etc.
Filtration of oil: oil refining, hydraulic oil, oilfield pipelines, etc.
Filtration of other fields: textile industry, insulation industry, automotive industry, chemical industry, metallurgy, pharmacy, electronic field, etc.



Packing:



Stainless Steel Perforated Tubes, Round Hole With Different Patterns
