Stainless Steel 304 316 Perforated Metal Mesh Round Square Slot Hole
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Incomparable Mechanical Properties | Product Name | Stainless Steel Perforated Metal Mesh |
|---|---|---|---|
| Material | SS304 SS316, ETC | Hole Shape | Round, Slot, Square, Hexagnoal, Etc |
| Punched | Perforated | Thickness | 0.5mm To 8.0mm |
| Hole Pattern | 90°, 45°, 60° | Width | 1m, 1.22m, 1.5m To 4m |
| Length | 15m, 30m To 60m | Application | Is Suitable Used For Sunshade Panels For High Building And Leisure Place. |
| Highlight | ss316 Perforated Metal Mesh,ss304 Perforated Metal Mesh,Stainless Steel perforated steel mesh |
||
Product Description

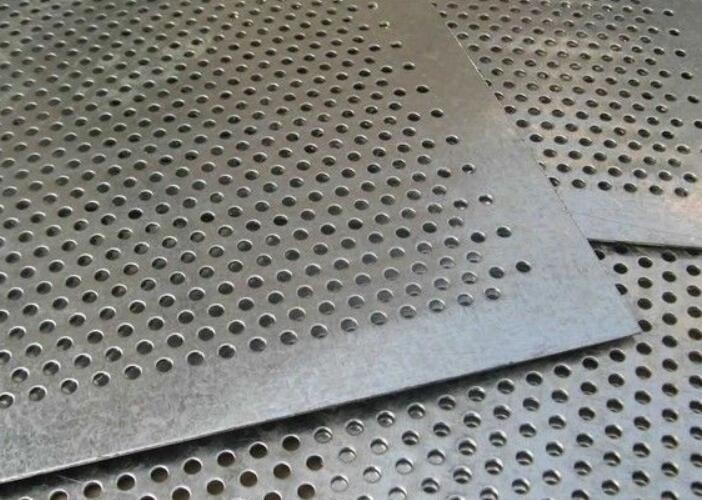

Stainless Steel 304 316 Grade Round Square Slot Hole Perforated Metal Mesh
Stainless Steel Perforated Metal Mesh Introduction:
Perforated stainless steel sheet is mainly made of 304 or 316 stainless steel sheet which is punched with a variety of hole patterns, including round, square, slot, diamond or your nominated hole shapes. The perforated stainless steel sheets we manufactured come with high quality and can be used in various circumstances.
For the average person, stainless steel may seem just like traditional carbon steel, but the actual state of the affair is the material is more complicated which makes it anti-corrosive for usages in moist and humid environments. So there is no need of painting and coating for rust and corrosion resistance any more. Perforated stainless steel sheet is suitable used for sunshade panels for high building and leisure place.
Material:
304, 316, 430, 410, 301, 302, 303, 321, 347, 416, 420, 430, 440, etc. Other standards materials are also available as your requirements.
Parts of Specifications:
| Hole Diameter | Staggered Centers | Sheet Thickness | Open Area | ||
| 0.045" | 1.14mm | 0.66" | 0.033-0.039" | 0.84-0.99mm | 37% |
| 1/16" | 1.59mm | 3/32" | 0.027-0.033" | 0.68-0.84mm | 41% |
| 1/16" | 1.59mm | 1/8" | 0.027-0.066" | 0.68-1.68mm | 23% |
| 5/64" | 1.98mm | 1/8" | 0.027-0.053" | 0.68-1.35mm | 35% |
| 0.081" | 2.06mm | 1/8" | 0.053-0.066" | 1.35-1.68mm | 38% |
| 3/32" | 2.38mm | 5/32" | 0.053*0.066" | 1.35-1.68mm | 33% |
| 1/8" | 3.17mm | 3/16" | 0.027-0.127" | 0.68-3.23mm | 40% |
| 5/32" | 3.97mm | 3/16" | 0.027-0.056" | 0.68-1.68mm | 63% |
| 3/16" | 4.76mm | 1/4" | 0.027-0.127" | 0.68-3.23mm | 50% |
| 1/4" | 6.35mm | 3/8" | 0.033-0.011",0.25" | 0.84-2.82mm,6.35mm | 40% |
| 3/8" | 9.52mm | 1/2" | 0.053-0.082",3/16" | 1.35-2.08mm,4.76mm | 51% |
| 3/8" | 9.52mm | 9/16" | 0.059",0.119" | 1.5mm,3.02mm | 40% |
| 1/2" | 12.7mm | 11/16" | 0.033-0.127",3/16" | 0.84-3.23mm,4.76mm | 48% |
| 1/4" Hex | 6.35mm | 0.285" | 0.027-0.033" | 0.68-0.84mm | 76% |
| 3/8" Sq | 9.52mm | Cane" | 0.053-0.066" | 1.35-1.68mm | 51% |
Other Specifications according to your requirements.
Features:
Stainless steel perforated metal is punched into various patterns. It is winding resistant, ageing resistant and corrosion resistant. The surface of the sheet metal is smooth, it is strong and durable.

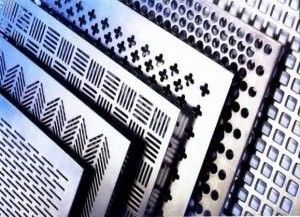

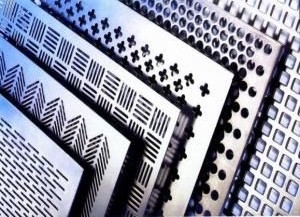

Hole Patterns including:
Round; Rectangular hole; Square; Triangle; Diamond; Slotted Hole; Hexagonal; Cross; Slotted; and other patterns according to your drawings or application requirement.
Applications:
Stainless steel perforated metal is used as acoustics panels, security screens, air-condition units, radiator covers, wall cladding, display units and so on.
Perforated Stainless Steel with Round Hole, Used as Facade Cladding/ Decorative Hole Perforated Metal for Radiator and Various Covers.
Punched Metal for Making of Chair and Furnitures with Good Strength and Ventilation / Slotted Perforated Plate for Acoustic Screen Uses
Packing:
Our Perforated Metal Mesh List:
Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
