8mm To 50mm Hole Hexagonal Perforated Metal 0.5mm to 3.0mm

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls or Panels
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Suitable For Many Industries Product Name Hexoganl Perforated Metal Mesh
Material Stainless Steel, Aluminum, Carbon Steel, Nickel, Etc Hole Size 4.5 To 12.7mm
Punched Perforated Thickness 0.5mm To 3.0mm
Hole Pattern 0 Width 1m, 1.22m, 1.5m To 4m
Length 15m, 30m To 60m Application Widely Used In Ventilation, Screen Filter And Architectural Decoration Fields.
High Light

50mm hexagonal perforated metal

,

50mm hexagonal perforated metal

,

Hexagonal perforated wire mesh

Leave a Message
Product Description

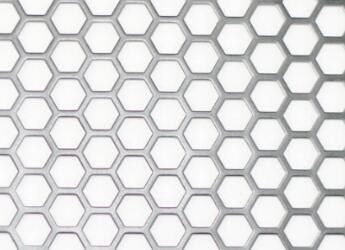

4.5mm To 50mm Hole Size Similar To Honeycomb Hexoganl Perforated Metal Mesh



Hexagonal Perforated Metal Introduction:



Hexagonal Perforated Metal is made of metal plates matching punching die in different sizes of aperture, forming into mesh rolls or mesh sheets with hexagonal holes by CNC punch pressing, cutting, slicing, leveling, grease, deburring,surface treatment and other series of processes. Hexagonal hole perforated metal belongs to new materials in the decoration industry, for its own unique properties, the use of decorative industries increases year by year. Hexagonal hole perforated metal has good features of beautiful appearance, sturdy overall structure, several times higher tensile strength than diamond hole perforated metal, corrosion resistance, light weight per square meter, ventilation, translucent, sound-absorbing, high toughness, easy to install and low cost. We producing hexagonal hole perforated metal in various kinds of specification by different combination of material, hole pitch and open area. Hexagonal hole perforated metal is widely used in ventilation, screen filter and architectural decoration fields.



Hexagonal hole perforated mesh can provide large open area up to 80%, which ensures a broad field of vision. The hexagonal hole perforate screen has high strength-weight ratio, so it has lighter weight than other types while the same performance.



Specifications:



Hole Size: 4.5mm to12.7mm
Pitch: 5.0mm to 14.3mm
Thickness: 0.5mm-2.5mm
Roll Width: 1m, 1.22m, 1.5m to 4m

Roll Length 15 m, 30 m to 60 m

Panel Width: 1m, 1.22m to 2m

Panel Length: 1m, 1.5 m, 2m to 10m





Hole Size (H) (mm)

Pitch (P) (mm)

Opening Area (%)

4.5

5.0

81.0

6.0

6.7

80.2

6.0

7.5

64.0

6.3

7.1

80.0

6.3

12.7

25.0

8

10.5

58.1

8

12

44.4

10

15

44.4

10

18

30.9

10

28

12.8

11.5

12.7

81.0

11.5

22.2

27.0

12

16

56.3

12.7

14.3

79.0

14

21

44.4

16

21

58.1

16

34

22.1

18

25

51.8

20

26

59.2

20

28

51.0

22

30

53.8

25

35

51.0

30

44

46.5

32

40

64.0

35

48

53.2

36

48

56.3

50

65

59.2



Material: Stainless Steel, Copper, Aluminum, Carbon Steel, Plain Steel, Galvanized Steel, etc.



Stainless Steel

201, 202, 304, 316, 321, 410, 430

Copper

brass, pure copper, phosphor bronze

Aluminum

1050, 1060, 1100, 5052, 5056

Carbon Steel

High Carbon Steel, Mild Carbon Steel, Low Carbon Steel



Holes Shape: Hexagonal Hole



Hexagonal Hole Perforated Details:

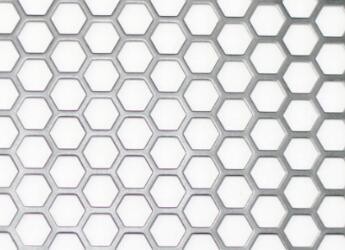

Hexagonal Hole Staggered Perforated Metal, 4.5mm to 12.7mm Hole Size

Hexagonal Hole Staggered Perforated Metal, 4.5mm to 12.7mm Hole Size



Features:



Timeless design;
Suitable for many industries;
Lightweight;
Low maintenance.



Applications:



Hexagonal perforated sheets are widely used in architectural applications for its beautiful appearance.They are available from stock into two hole sizes in a staggered pattern.

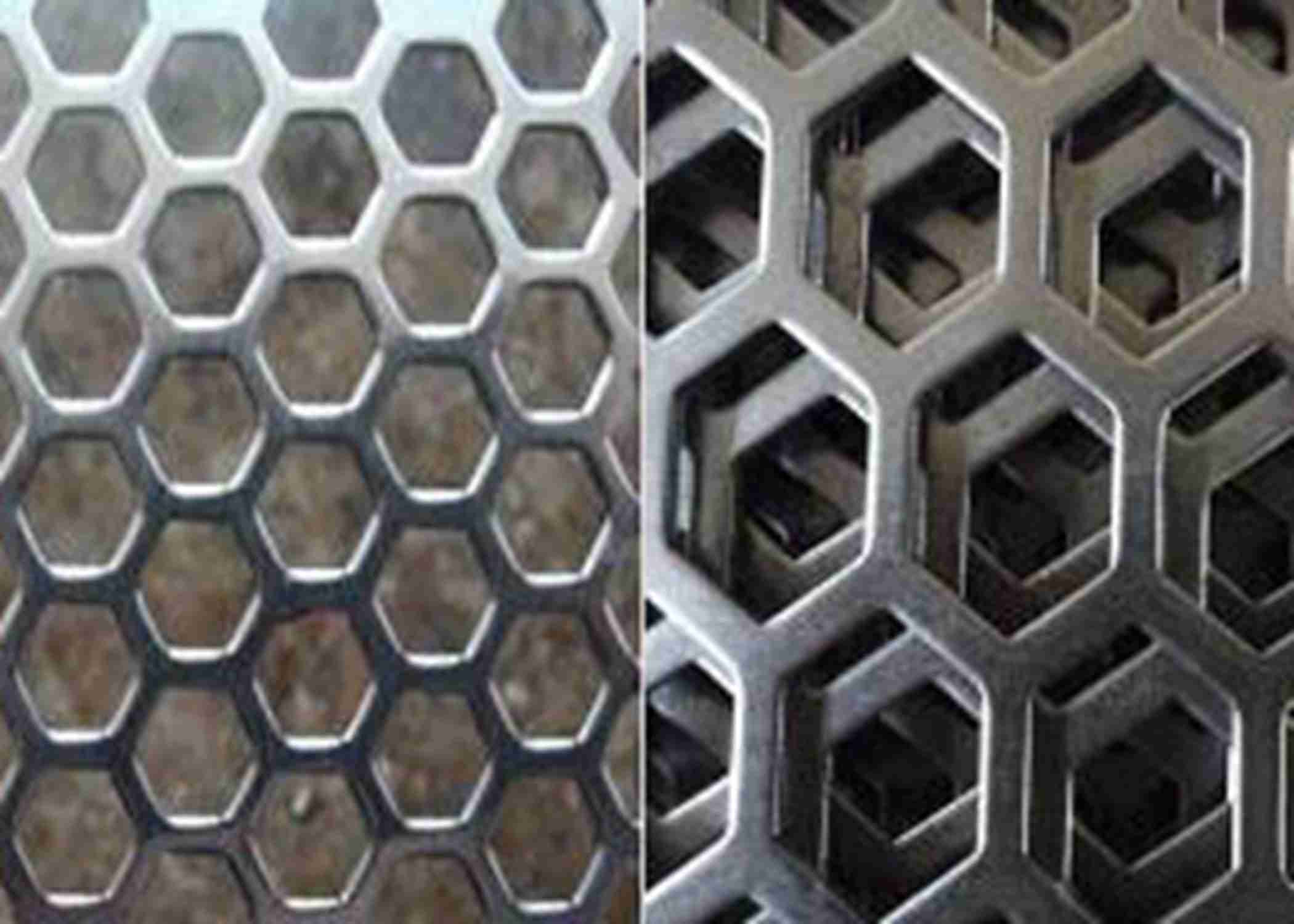

Hexagonal Hole Staggered Perforated Metal, 4.5mm to 12.7mm Hole Size


Packing:



8mm To 50mm Hole Hexagonal Perforated Metal 0.5mm to 3.0mm 3

8mm To 50mm Hole Hexagonal Perforated Metal 0.5mm to 3.0mm 4
