Triangle Hole 3mm To 10mm Perforated Metal Mesh For Noise Reduction

  • Triangle Hole 3mm To 10mm Perforated Metal Mesh For Noise Reduction
  • Triangle Hole 3mm To 10mm Perforated Metal Mesh For Noise Reduction
  • Triangle Hole 3mm To 10mm Perforated Metal Mesh For Noise Reduction
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls or Panels
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Higher Tensile Strength And Load-bearing Ability Product Name Triangle Hole Perforated Metal Mesh
Material Stainless Steel, Aluminum, Carbon Steel, Nickel, Etc Hole Size 3mm To 10mm
Punched Perforated Thickness 0.1mm To 8mm
Hole Pattern 90° Straight, 45° And 60° Staggered Width 1m, 1.22m, 1.5m To 4m
Length 15m, 30m To 60m Application Sound Protection And Noise Reduction
Highlight

10mm Perforated Metal Mesh

,

3mm Perforated Metal Mesh

,

Triangle Hole perforated metal sheet
Leave a Message
Product Description

Triangle Hole Perforated 3mm To 10mm For Noise Reduction Perforated Metal Mesh



Triangle Hole Perforated Metal Mesh Introduction:



Triangle Hole Perforated Metal is made of metal plates matching punching die in different sizes of aperture, forming into mesh rolls or mesh sheets with triangle holes by CNC punch pressing, cutting, slicing, leveling, grease, deburring, surface treatment and other series of processes. Compared with round hole type, there is more difficulty in processing and production for triangle hole perforated metal and It will also take a more long time. But triangle hole perforated metal possess higher tensile strength and load-bearing ability, series of open area, accurate hole size and high corrosion resistance. We produce triangle hole perforated metal in various kinds of specification by different combination of material, hole pitch and open area. And triangle hole perforated metal is more and more used in sound, noise reduction, screen filter, architectural decoration and other fields.



Specifications:



Roll Width 1m, 1.22m, 1.5m to 4m

Roll Length 15m, 30m to 60m

Panel Width: 1m, 1.22m to 2m



Panel Length: 1m, 1.5m, 2m to 10m



Hole Size

(mm)

Pitch

(mm)

Open Area

(%)
3.0 3.2*4.2 28.9
4.0 3.8*5.2 35.1
5.0 4.4*6.3 38.9
6.0 5.1*7.3 41.7
7.0 5.8*8.4 43.4
8.0 6.4*9.4 45.9
9.0 7.0*10.4 48.1
10.0 8.2*11.3 46.6



Material:



Stainless Steel, Aluminum, Carbon Steel, Plain Steel, Galvanized Steel, etc.



Stainless Steel 201, 202, 304, 316, 321, 410, 430
Aluminum 5052, 5056
Carbon/Plain Steel High Carbon Steel, Mild Carbon Steel, Low Carbon Steel



Triangle Hole Perforated Metal With for Sound Protection and Noise Reduction



Features:



This type of perforated gratings with characteristics of lightweight, high strength, slip-resistant walking surfaces, fast and easy installation, long life span, low maintenance.



Triangle hole sheet metal has its unique size, pitch and pattern arrangement compared with other designs. According to specific requirements, we can offer perforated plates punched with a variety of mesh patterns: single pattern design, exaggerated pattern or combined patterns.


Holes Shape: Triangle Hole



Applications:



Triangle hole perforated sheets is popular materials for filter screen and architectural decoration. But triangle hole perforated metal allows for a greater open area of material and more ventilation than round hole metal, it can be mainly used for sound protection and noise reduction.



Triangle hole can be used for forming sound-absorbing color plate, micro porous sound-absorbing muffler plate, decorative ceiling board, speaker grilles.

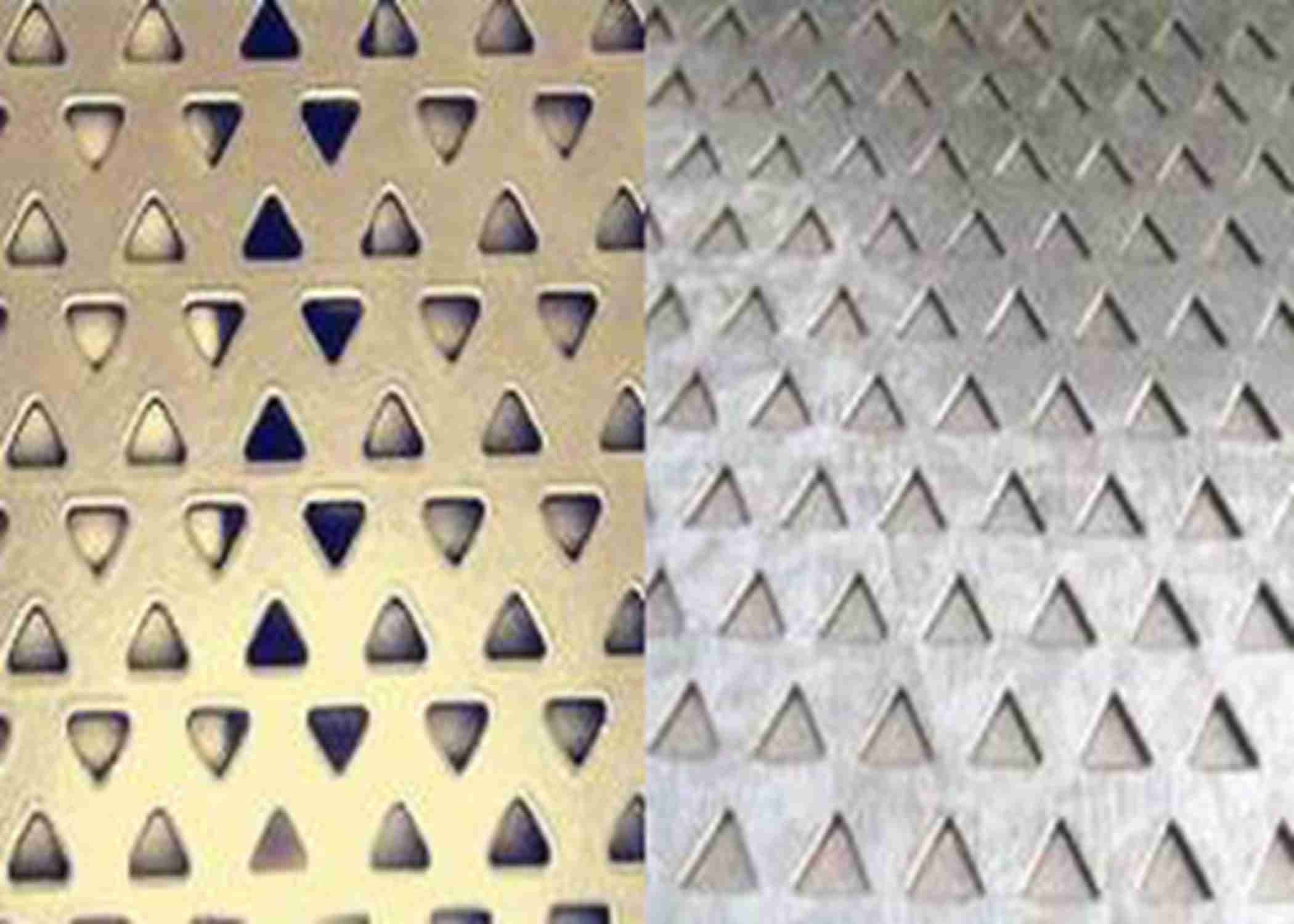

Triangle Hole Details:

triangle hole perforated

Packing:



Triangle Hole 3mm To 10mm Perforated Metal Mesh For Noise Reduction 2

Triangle Hole 3mm To 10mm Perforated Metal Mesh For Noise Reduction 3



Our Perforated Metal Mesh List:



Round hole perforated sheet
Square hole perforated sheet
Slot hole perforated sheet
Decorative Perforated Sheet
Embossed sheet
Perforated steel sheet
Perforated stainless steel sheet
Perforated aluminum sheet
perforated copper or brass sheet
Etched plates
Perforated metal noise barrier
Perforated filter form SS, carbon steel, aluminum, or copper sheet
Perforated tube
Perforated sunshade panel
Perforated kinetic facade
Anti-skid stair steps
Hexagonal hole perforated metal
Louver hole perforated metal
Raised Perforated Metal
Nickel perforated metal
Galvanized perforated metal
Carbon steel perforated metal
Perforated metal for filter
Perforated Metal for facade
