Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration

  • Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration
  • Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration
  • Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls or Panels
Price Negotiable
Packaging Details Warpped with plastic film, then in wooden case or pallets.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Slot Hole Perforated Metal Mesh Material Stainless Steel, Aluminum, Carbon Steel, Nickel, Etc
Shape Of Hole End Round End, Square End Hole Size 0.5mm To 10mm
Punched Perforated Thickness 0.1mm To 8mm
Hole Pattern End Staggered, Side Staggered, Straight Line Width Up To 4m
Length Up To 90m Applications Plays An Important Role In Screening And Solid Classification.
Highlight

well lighted 0.1mm Perforated Metal Mesh

,

well lighted 8mm Perforated Metal Mesh

,

Slot Hole perforated steel mesh sheets
Leave a Message
Product Description

Slot Hole Perforated For Liquids And Solids Filtration Perforated Metal Mesh



Slot Hole Perfoated Metal Mesh Introduction:

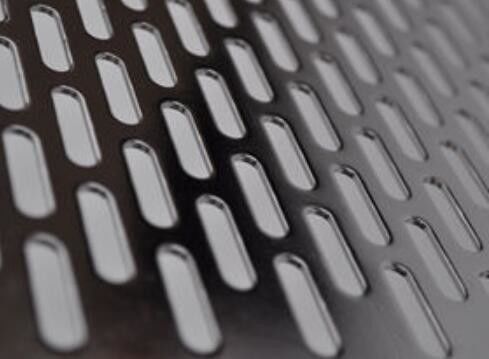

Slot Hole Perforated Metal Slot holes are elongated holes with round or square ends. Slotted perforated metal is produced in ferrous materials in plates, stainless steel, or galvanized steel. are the ideal solution wherever filtering or the separation of liquids and solids is required.



Slot hole perforated sheet is a versatile sheet or coil punched for elongated holes with round or square ends. Compared to similar perforated sheet with other hole pattern, this one proves to be the best solution to filtrate and sieve liquids and solids, such as water, wine, grain and seeds, etc.



Material:



Stainless steel plate. Other materials such as carbon steel, nickel, copper or aluminum also available.



Stainless Steel 201, 202, 304, 316, 321, 410, 430
Copper brass, pure copper, phosphor bronze
Aluminum 1050, 1060, 1100, 5052, 5056
Carbon Steel High Carbon Steel, Mild Carbon Steel, Low Carbon Steel



Specifications:



Hole Size: 2x20mm
Pitch: 5x25mm, 6x28mm
Thickness: 0.8mm-1.5mm
Panel Size: 1x1m,1x2m,1.22x2.44m,1x30m,1.22x30m,1.53x30m

Slot Hole Perforated Metal, 2*20mm Hole Size With 0.8 to1.5mm Thickness Slot Hole Perforated Metal, 2*20mm Hole Size With 0.8 to1.5mm Thickness



Hole Size

C×L

Pitch

Z1×Z2

 Open Area Weight(Kg)
(mm) (mm) (%) T=0.8 T=1.0 T=1.2 T=1.5
2×20 5×25 32.0 4.27 5.34 6.41 8.01





Slot Hole Perforated Metal, 2*20mm Hole Size With 0.8 to1.5mm Thickness



Hole Size

R×L

Pitch

Z1×Z2

 Open Area Weight(Kg)
(mm) (mm) (%) T=0.8 T=1.0 T=1.2 T=1.5
2×20 5×25 31.3 4.31 5.39 6.47 8.09
2×20 6×28 23.3 4.82 6.02 7.23 9.03




Other Specifications according to your requirements.



Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration 3





Features:

Features:
Variety of gauges and materials;
Diversity of patterns;
High strength-to-weight ratio;

Economical;
Versatility;
Aesthetic appeal;
Ventilation of air, light, sound, gases;
Screening of fluids;
Pressure equalization or control;
ety and security;
Ease of fabrication.



Hole size:


The slot hole should be punched with a width that at least the same size as the sheet thickness. When the slot width is the twice as much as the sheet thickness, the sheet performs best.



Hole Patterns including:

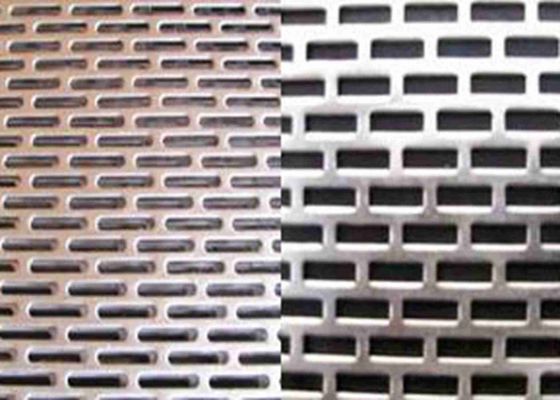

Round End 45° Slanted Pattern
Round End Staggered Pattern
Round End Straight Pattern
Square End Staggered Pattern
Square End Straight Pattern


Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration 4







Applications:

Act as sieves for grain & seeds cleaning and drying machine.
Mill of flour and rice.
Rope belt conveyors.
Wall & ceiling panels.
Cladding and sunshade.
Fences and protective panels.
Decorative applications, etc.

Packing:



Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration 5

Slot Hole 0.1mm To 8mm Perforated Metal Mesh For Liquids And Solids Filtration 6
