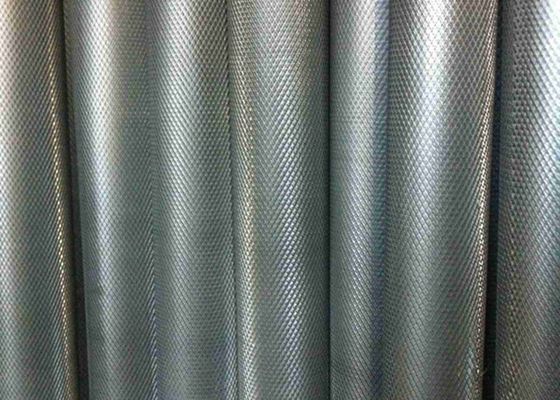

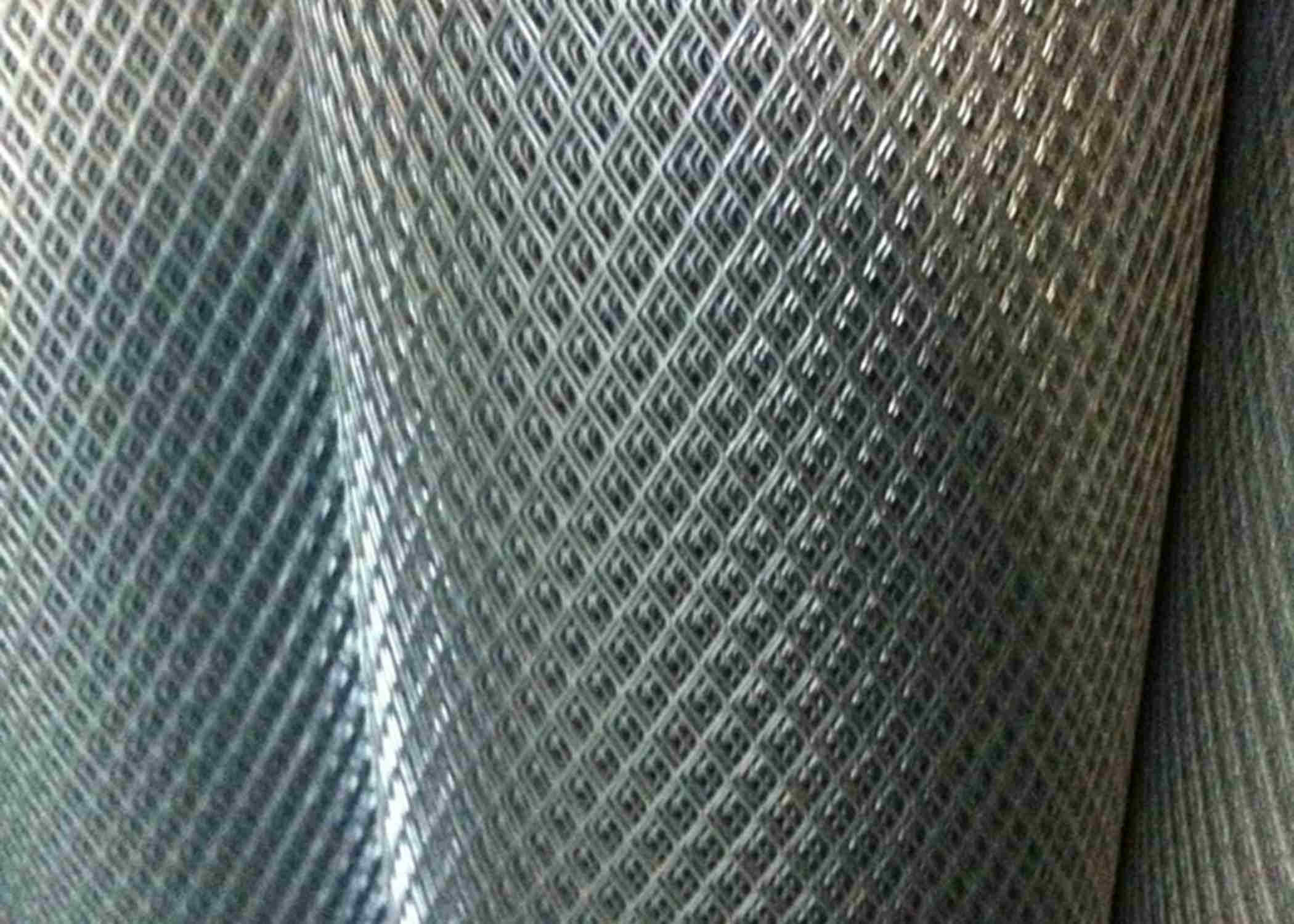

Monel 400 4'' Expanded Metal Mesh Roll Flattened Pattern

Place of Origin	Anping of China
Brand Name	QIANPU
Certification	ISO
Minimum Order Quantity	10Rolls
Price	Negotiable
Packaging Details	Plastic out side then in pallet or wooden box.
Delivery Time	a week
Payment Terms	T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Resistant To Seawater, Brackish Water And Steam At High Temperatures	Product Name	Monel Expanded Metal Mesh
Material	Monel 400 Plate	Standard	ASTM
Pattern	Raised Type, Flattened Pattern	Hole Pattern	Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes.
Thickness	0.1 To 5mm	Width	4', Etc
Length	8', 10', Etc	Application	Widely Used As The Structural Material In The Various Industrial Applications
Highlight	TENGLU 4in expanded metal mesh roll , Monel 400 expanded metal mesh roll , Flattened Pattern expandable steel mesh

Leave a Message

Product Description

High strength Monel400 Expanded Metal Flattened Pattern Expanded Metal Mesh

Monel Expanded Metal Introduction:

Monel Expanded Metal is made of Monel alloy sheet by incising and expanding. Recommended Monel grades are Monel 400 and Monel K500, among of which monel 400 is widely used.

Monel expanded metal has outstanding corrosion resistance in the seawater, brackish water and steam operations at the high temperatures. It has high strength and hardness at the elevated temperatures.

Monel Expanded Metal Sheet Properties

1. Resistant to seawater, brackish water and steam at high temperatures
2. Prevents stress corrosion cracking in the fresh waters
3. Particularly resistant to hydrochloric and hydrofluoric acids when they are de-aerated
4. Excellent resistance to neutral and alkaline salt.

Key Features:

1. Resistance to SCC
2. Prevent pitting and crevice attack

3. Corrosion resistance in seawater and fresh water

4. High strength

Expanded Metal Types:

Regular Expanded Metal

Flattened Expanded Metal

Heavy Duty Expanded Metal

Mini Expanded Metal

Monel Expanded Metal-Technical Specification(Partial)

Style	OpeningSize (In.)		StrandSize (In.)		Thickness(In.)	OpenArea%
	SWO	LWO	Thickness	Width
1/4 inch x #20 1/4 inch x #18	.125 .110	.718 .718	.036 .048	.072 .072	.135 .147	45 43
1/2 inch x #20 1/2 inch x #18 1/2 inch x #16 1/2 inch x #13	.438 .438 .438 .312	.938 .938 .938 .938	.036 .048 .060 .090	.072 .088 .087 .096	.140 .172 .175 .204	80 72 65 57
3/4 inch x #16 3/4 inch x #13 3/4 inch x #10 3/4 inch x #9	.813 .750 .750 .688	1.75 1.688 1.625 1.562	.060 .090 .090 .134	.101 .096 .144 .150	.210 .205 .290 .312	78 76 72 68
1 inch x #16	.938	2.06	.060	.087	.192	82
1-1/2 inch x #16 1-1/2 inch x #13 1-1/2 inch x #10 1-1/2 inch x #9 1-1/2 inch x #6	1.25 1.188 1.188 1.125 1.110	2.625 2.500 2.500 2.375 2.375	.060 .090 .090 .134 .194	.108 .105 .138 .144 .203	.230 .242 .284 .312 .433	85 85 80 76 69

Packing:

Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type
