0.1mm To 5mm 200 201 Nickel Expanded Mesh ASTM diamond Hole

Place of Origin	Anping of China
Brand Name	QIANPU
Certification	ISO
Minimum Order Quantity	10Rolls
Price	Negotiable
Packaging Details	Plastic out side then in pallet or wooden box.
Delivery Time	a week
Payment Terms	T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details

Features	Extremely Strong Material	Product Name	Nickel Expanded Metal Mesh
Material	Nickel Plate	Standard	ASTM
Pattern	Raised Type, Flattened Pattern	Hole Pattern	Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes.
Thickness	0.1 To 5mm	Width	4', Etc
Length	8', 10', Etc	Application	Widely Used As The Structural Material In The Various Industrial Applications
Highlight	201 Nickel Expanded Mesh , 200 nickel expanded mesh , 5mm wire mesh expanded metal

Leave a Message

Product Description

0.1mm To 5mm Nickel Expanded Metal Reliable Performance Expanded Metal Mesh

Nickel expanded metal mesh Description:

Nickel Expanded Metal is made of pure nickel foil by precision expanding technique. The Mini nickel expanded metal fits best forbattery and fuel cell electrodes and current collector, for example nickel-compartment/ Ni- Hi/ Li- ion battery electrode.

Nickel Expanded Metal is symmetrically slit and stretched to produce diamond shape openings. This type of nickel mesh has avoided the electricity flow problem that occurs in mesh made of woven wires. We take the special measures to produce the nickel expanded metal mesh with smooth surface.

Nickel 200/201 Specifications:

Alloy	Wire	Foil	Strip	Pipe	Fittings
200	BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11, DIN 17740, 17750, 17751, 17752, 17753, 17754, Werkstoff Nr. 2.4060, 2.4066	ASME SB-168	ASME SB-160	ASME SB-161, ASME SB-829, ASME SB-775, ASME SB-725, ASME SB-163, ASME SB-730, ASME SB-751	ASME SB-366
201	BS 3072, BS 3073, BS 3074, BS 3075, BS 3076, NA11, ASME SB-160,DIN 17740, 17750, 17751, 17752, 17753, 17754, Werkstoff Nr. 2.4060, 2.4066	ASME SB-168	AMS 553	ASME SB-161, ASME SB-163, ASME SB-730, ASME SB-751	ASME SB-366

Mini Nickel Expanded Metal Specification Range:

1: Material: pure nickel foil, purity≥ 99.8% (Conform to the requirements of the ROSH)
2: Mesh thickness: 0.05mm~0.50mm (±0.01mm)
3: Mesh width: 20mm~350mm (±0.2mm)
4: Surface density: 100g—400 g/m2 (±10g/m2)
5: Flexibility: 180 degree twist available, 8-10 times no crake
6: The total length: up to 300m/roll, ≤1 connector with same width

Common Nickel Expanded Metal Specification Range:

Opening size(LWD): 0.2mm to 20mm
Thickness: 0.1mm to 5mm
Sheet size: customized sizes available

Key Features:

1. Good thermal conductivity and corrosion resistance

2. Excellent durability and complete air flow

3. Prolong and reliable performance

Nickel Expanded Metal Properties:

1. High strength
2. Good durability
3. Elevated temperature properties
4. Excellent corrosion resistance in the variety of media
5. Heat resistance

Packing:

Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type

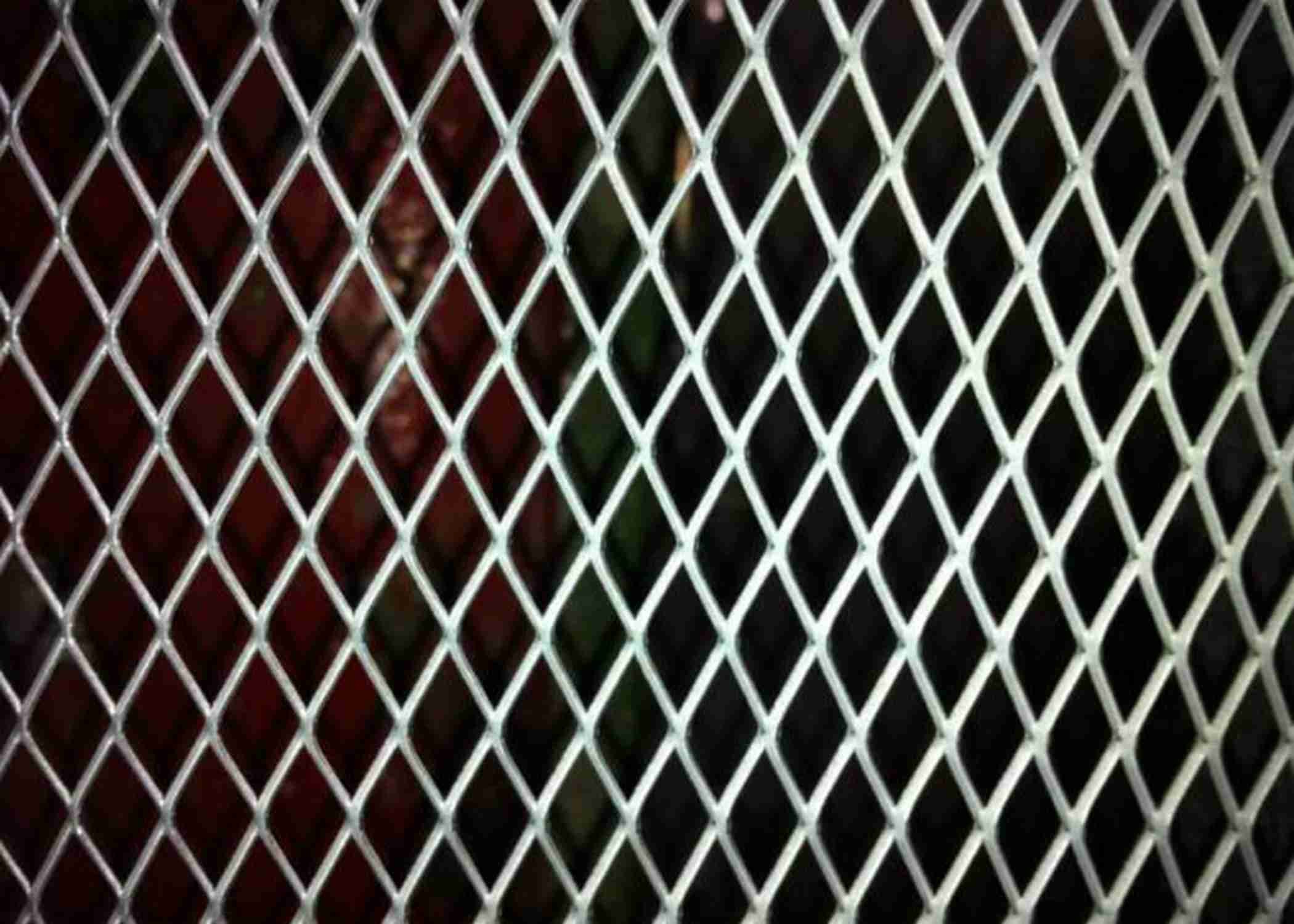

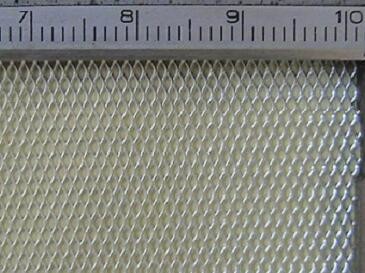

0.1mm To 5mm 200 201 Nickel Expanded Mesh ASTM diamond Hole 0
