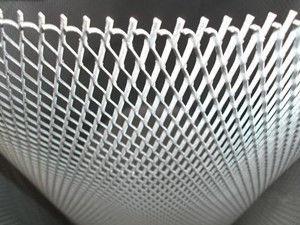

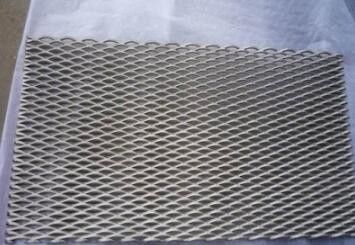

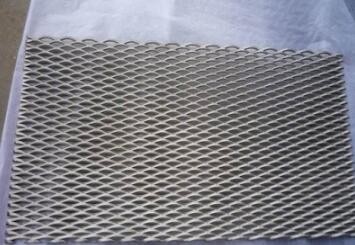

Titanium 8 Inch 10 Inch Expanded Mesh Diamond Hole

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Extremely Strong Material | Product Name | Tianium Expanded Metal Mesh |
---|---|---|---|
Material | Tianium Plate | Standard | ASTM |
Pattern | Raised Type, Flattened Pattern | Hole Pattern | Diamond, Hexagonal, Micro Hole, Oval Hole And Various Decorative Holes. |
Thickness | 0.5 To 8mm | Width | 4', Etc |
Length | 8', 10', Etc | Application | Widely Used As The Structural Material In The Various Industrial Applications |
Highlight | 8in titanium expanded mesh,10in titanium expanded mesh,10in Titanium expanded metal diamond mesh |
Titanium Expanded Metal High Mechanical Strength Diamond Hole Expanded Metal Mesh
Titanium Expanded Metal Introduction:
Titanium Expanded Metal offers very high mechanical strength and outstanding corrosion resistance properties. It is widely used as the structural material in the various industrial applications. Titanium produces protective oxide layer that prevents the base metal from corrosive attack in the diverse application environments.
Titanium expanded metal is a strong, durable and uniform open mesh allowing full supply of light, air, heat, fluids and rays while preventing an entrance of unnecessary objects or individuals. We manufacture small duty titanium expanded metal, medium duty titanium expanded metal and heavy duty titanium expanded metal.
Specifications:
Mesh Tickness (mm) |
Distance short (mm) |
Distance Long (mm) |
Strip (mm) |
0.5 | 2.5 | 4.5 | 0.5 |
0.5 | 10 | 25 | 0.5 |
0.6 | 10 | 25 | 1 |
0.8 | 10 | 25 | 1 |
1 | 10 | 25 | 1.1 |
1 | 15 | 40 | 1.5 |
1.2 | 10 | 25 | 1.1 |
1.2 | 15 | 40 | 1.5 |
1.5 | 15 | 40 | 1.5 |
1.5 | 23 | 60 | 2.6 |
2 | 18 | 50 | 2.1 |
2 | 22 | 60 | 2.6 |
3 | 40 | 80 | 3.8 |
4 | 50 | 100 | 4 |
4.5 | 50 | 100 | 5 |
5 | 50 | 100 | 5 |
6 | 50 | 100 | 6 |
8 | 50 | 100 | 8 |
Partly Titanium Expanded Metal Technical Specification:
Style | Strand Width(in.) |
Sheet Sizes | Sizeof Bridges Center to Center (in.)Width Length |
Strand Thickness (in.) |
Gauge | Size of Opening (in.) |
Percent Open Area |
1/4 inch 1/4inch |
.086 .080 |
4′ x 8′ 4’x8′ |
.25 1.018 .25 1.024 |
.029 .042 |
20 18 |
.094 x .688 .094 x .688 |
30 to 35 35 to 40 |
1/2 inch 1/2 inch 1/2 inch 1/2 inch |
.080 .102 .096 .119 |
4′ x 8′ 4′ x 8′ 4’x 8′ 4′ x 8′ |
.500 1.260 .500 1.260 .500 1.260 .500 1.245 |
.029 .039 .050 .070 |
20 18 16 13 |
.350 x 1.08 .302 x 1.05 .302 x 1.02 .300 x .950 |
74 to 79 58 to 63 60 to 65 50 to 55 |
3/4 inch 3/4 inch 3/4 inch |
.110 .114 .137 .157 |
4′ x 8′ & 10′ 4′ x 8′ 4′ x 8′ & 10′ 4′ x 8′ & 10′ |
.923 2.098 .923 2.111 .923 2.078 .923 2.120 |
.048 .061 .070 .120 |
16 14 13 10 |
.750 x 1.781 .688 x 1.781 .688 x 1.781 .562 x 1.688 |
75 to 80 73 to 78 73 to 78 63 to 68 |
1 inch | .106 | 4′ x 8′ | 1 2.508 | .048 | 16 | .780 x 2.06 | 76 to 81 |
1.5 inch 1.5 inch 1.5 inch 1.5 inch 1.5 inch |
.090 .127 .120 .130 .165 |
4’x 8′ 4′ x 8′ 4′ x 8′ 4′ x 8′ 4?? x 8′ & 10′ |
1.33 3.12 1.33 3.146 1.33 3.105 1.33 3.115 1.33 3.207 |
.048 .048 .061 .070 .110 |
16 16 14 13 10 |
1.150 x 3.2 1.062 x 2.75 1.062 x 2.75 1.062 x 2.75 1 x 2.562 |
75 to 80 79 to 84 80 to 85 78 to 83 73 to 78 |
Structure Details:
Characteristics:
Chemical resistance is a summary of the nitric acid - strong acid system, and withstand seawater, also wet chlorine gas. For high-strength, corrosion resistance without deterioration due to cold, stress corrosion, has a feature almost no pitting.
1. Outstanding corrosion resistance
2. Rust resistance
3. Extremely strong material
4. Lifetime service
Applications:
Titanium wire mesh is used for living organisms because non-toxic, it can be used such as artificial bone, will also be in direct, fit into the body. And other chemical equipment, oil refining equipment, industrial equipment, etc. It can also be used for pulp and paper.
1. Titanium Electrode
2. Filter screen
3. Supporter in harsh environments
Packing:
Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type
