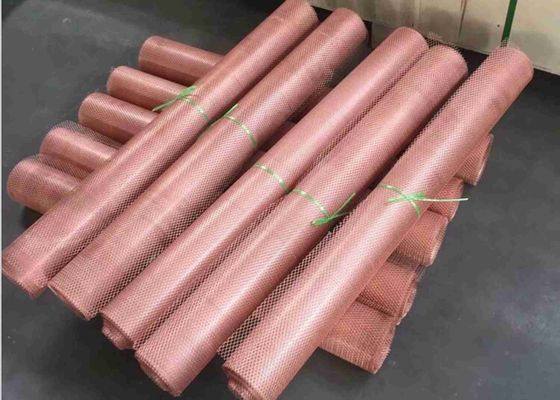

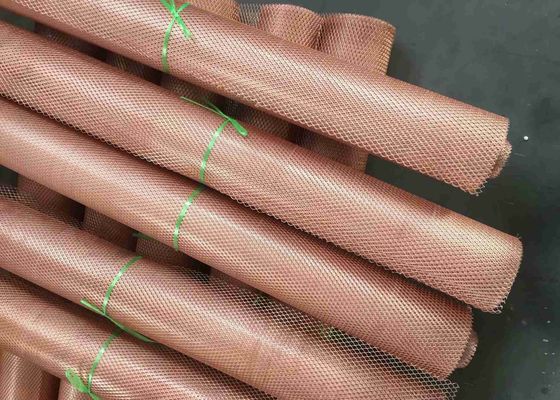

0.5 To 5.0mm Copper Expanded Metal Mesh Anti Corrosion

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Durable, Anti-corrosion And Wearable. Product Name Copper Expanded Metal Mesh
Material Phosphor Bronze Plate, Brass Plate, Copper Plate. Surface Bright Silver
Pattern Flattened, Raised. Hole Shape Diamond, Square, Hexagonal, Round, Special Shape.
Thickness 0.5 To 5.0mm Width According To Loading Container Or Your Request
Length Customized Application Ceiling, Wall Cladding, Etc
High Light

5.0mm Expanded Metal Mesh

,

0.5mm Expanded Metal Mesh

,

Anti Corrosion copper wire mesh screen

Leave a Message
Product Description

Copper Expanded Metal Wearable and Durable Expanded Metal Mesh



Brass/ Copper Expanded Metal Mesh Introduction:



Copper or brass expanded metal mesh is produced by slitting and stretching a single metal sheet to form various opening shapes. There are two styles of standard and flattened. Flattened expanded metal mesh based on standard metal mesh undergoes an additional cold rolling process, creating a smoother surface. There's no wastes in producing them. Materials can be aluminum, stainless steel, carbon steel with copper or brass coating. Expanded copper or brass mesh can be used for chimney caps, crafts of art and filters. It can be used for decoration as interior and exterior wall decoration, ceilings, curtains popularly. Expanded metal sheet with high strength and sound structure can be used for step mesh of oil tanks, working platform and walking road for heavy model equipment.



Specifications:



Specifications of Copper or Brass Expanded Metal Mesh
Mesh Thickness SWD LWD Strand Width Width Length
(mm) (mm) (mm) (mm) (m) (m)
0.5 2.5 4.5 0.5 0.5 1
0.5 10 25 0.5 0.6 2
0.6 10 25 1 0.6 2
0.8 10 25 1 0.6 2
1 10 25 1.1 0.6 2
1 15 40 1.5 2 4
1.2 10 25 1.1 2 4
1.2 15 40 1.5 2 4
1.5 15 40 1.5 1.8 4
1.5 23 60 2.6 2 3.6
2 18 50 2.1 2 4
2 22 60 2.6 2 4
3 40 80 3.8 2 4
4 50 100 4 2 2
4.5 50 100 5 2 2.7
5 50 100 5 1.4 2.6
6 50 100 6 2 2.5
8 50 100 8 2 2.1




Materials: Phosphor Bronze Plate, Brass Plate, Copper Plate.



Expanded Metal Patterns:



Standard Expanded: Standard diamond hole expanded metal is directly slit and stretched by punching machines without any other processing.The strand width and bond come into an angle with the plate surface. This kind of structure increase the strength and hardness of expanded metal, it also brings better anti-slipping and reinforcing performance.



Raised Expanded Metal Diamond Hole With 1.22*2.44m, 1m*2m Panel Size



Flatterned Expanded: Flattened diamond hole expanded metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal, the plate thickness will be thinner and opening will be larger.



Copper Expanded Metal Mesh & Brass Expanded Metal Mesh, Wearable and Durable


SWD: short way of diamond.
LWD: long way of diamond.
W: strand width.

T: thickness of metal plate



Copper Expanded Metal Mesh & Brass Expanded Metal Mesh, Wearable and Durable



Features:



Standard expanded metal mesh has non-skip surface, flattened expanded metal mesh has smooth and flat surface.
Sturdy structure.
Durability, corrosion, abrasion, acid and alkali resistance.
High utilization rate of materials, without scrap.
Permit light, air, liquid, heat, sound to pass.
High electrical conductivity and thermal conductivity.
Good ventilation, lighting, heat dissipation.
Beautiful appearance with various opening can be designed in many shapes.
The material in the production process is essentially non-destructive.
Low maintenance, easy to install.



Applications of copper expanded metal sheet:



Railway.
Highway.
Petrochemical.
Construction.
Garden parks.
It also can be used as many things, such as:

Roof.
Ceiling.
Fence.
Protective facilities.
Filter elements.
Batteries for household appliances.
Handrails.
Stair treads.
Scaffolding and flower racks.
Chimney cap.



0.5 To 5.0mm Copper Expanded Metal Mesh Anti Corrosion 3



Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type



0.5 To 5.0mm Copper Expanded Metal Mesh Anti Corrosion 4
