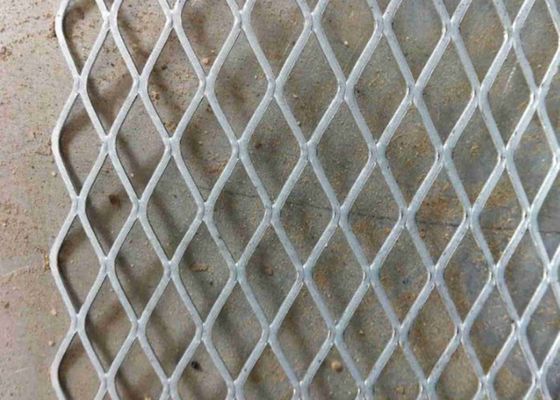

Flattened Diamond Hole Expanded Metal Mesh Smooth Surface SS304 SS316 ETC

  • Flattened Diamond Hole Expanded Metal Mesh Smooth Surface SS304 SS316 ETC
  • Flattened Diamond Hole Expanded Metal Mesh Smooth Surface SS304 SS316 ETC
  • Flattened Diamond Hole Expanded Metal Mesh Smooth Surface SS304 SS316 ETC
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Plastic out side then in pallet or wooden box.
Delivery Time a week
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Acid And Alkali Resistance. Product Name Flattened Expanded Metal Mesh
Material SS304, SS316, ETC Surface Bright Silver
Pattern Flattened Type Hole Diamond
Thickness 0.5 To 8mm Width According To Loading Container Or Your Request
Length Customized Application Walkways. Scaffold Gratings, Wall Cladding, Etc
Highlight

TENGLU ss316L Diamond Hole Expanded Metal Mesh

,

Flattened Expanded Metal Mesh

,

ETC diamond shape metal mesh
Leave a Message
Product Description

Flattened Expanded Metal Diamond Hole Width Smooth Surface Expanded Metal Mesh



Flattened Stainless Steel Expanded Metal Mesh Introduction:



Flattened expanded metal sheet has a smooth surface unlike the raised expanded metal sheet. The flattened expanded metal sheet is expanded in the regular form, which is same as the raised expanded metal sheet. Then the sheet passed through a cold rolled reducing mill, which can elongate the length and remain the same width. Additional, through this process, the raised surface of expanded metal sheet will be flattened. Finally, the sheet will be sent through a leveler to maintain its flatness.



Flattened expanded metal sheet can be made of low carbon steel sheet, aluminum sheet and stainless steel sheet. The low carbon steel sheet will be galvanized and PVC coated to improve the corrosion and rust resistance performance. Aluminum flattened expanded metal sheet owns light wight and good corrosion resistance performance, which is economical and good condition. The stainless steel flattened expanded metal sheet is the most durable and solid type, which is corrosion, rust, acid and alkali resistance.





Specifications:



Flattened Expanded Metal
Mesh Aperture Mesh Aperture Strand Width Strand Thickness Sheet Size LWD x SWD Material Type
LW (mm) SW (mm)
3.81 2.03 0.79 0.6 1250 x 1250 Mild Steel
6.85 3.56 1.3 0.9 1250 x 2500 Mild Steel
9.5 5 1.3 0.9 1250 x 2500 Mild Steel
14.22 4.8 1.85 0.9 1250 x 2500 Mild Steel
23.11 5.84 3.2 1.52 2440 x 1220 Mild Steel
24.38 7.11 2.39 1.14 2440 x 1220 Mild Steel
24.38 7.87 2.06 1.47 2440 x 1220 Mild Steel
24.38 7.62 2.08 1.14 1250 x 2500 Mild Steel
32.77 10.92 3.18 1.5 2440 x 1220 Mild Steel
33.53 12.45 2.31 1.14 1250 x 2550 Mild Steel
33.53 12.45 2.31 1.14 2440 x 1220 Mild Steel
42.93 14.22 4.6 2.69 2440 x 1220 Mild Steel & H D Galv
42.93 14.22 4.6 2.69 1250 x 2500 Mild Steel & H D Galv
39.12 18.29 4.72 2.74 1220 x 2500 Mild Steel
43.43 18.03 2.31 1.14 1250 x 2500 Mild Steel & Pre-Galv
43.18 17.27 3.23 1.45 2440 x 1220 Mild Steel
42.93 17 6 3.7 1220 x 2440 Mild Steel
77.47 27.18 6.53 2.9 2440 x 1220 Mild Steel
3.5 2.05 0.79 0.56 1250 x 1250 Pre-Galv
5 3.45 1.3 0.7 1250 x 2500 Pre-Galv
6 4 0.8 0.6 1250 x 1250 Pre-Galv
35.05 12.45 2.31 1.14 1250 x 2500 Pre-Galv
6.86 3.56 1.27 0.9 1250 x 2500 Aluminum
13.97 4.83 1.8 0.9 1250 x 2500 Aluminum
24.1 7.11 2.39 1.14 1250 x 2440 Aluminum
35.05 11.94 2.34 1.14 1250 x 2440 Aluminum
40.64 17.78 4 2.9 1250 x 2500 Aluminum
43.18 17.78 2.34 1.12 1250 x 2000 Aluminum
3.5 2.05 0.75 0.5 1250 x 1625 Stainless 430
11.7 8.5 1.5 1.5 1000 x 2000 Stainless 304
14.22 4.3 1.83 0.9 1000 x 2000 Stainless 304
14.22 4.3 1.83 0.9 1250 x 1830 Stainless 316
21 6 2.1 1.2 1250 x 2500 Stainless 304
21 9 3 1.5 1250 x 2500 Stainless 304



Materials:



Stainless Steel:201, 202, 205, 304, 304L, 316, 316L, 321
Steel: Q195, Q215, Q235
Copper: red copper plate (C10200, C11000), brass plate(CuZn40, CuZn37, CuZn35, CuZn30, CuZn20, CuZn5)
Aluminum: pure aluminum plate, aluminum alloy plate(1050, 5052, 5056)
Nickel: N2, N4, N6, nickel alloy 2080, monel 400, monel 600

Note: SS304, SS316 is the most common material.



Surface Treatment: hot-dipped, electrol galvanized, pvc-coated.





Flattened Expanded Metal is formed by flattening process based on standard expanded metal. Its strand width and bond are in the same horizontal plane with plate surface. Compared with standard expanded metal,the plate thickness will be thinner and opening will be larger.

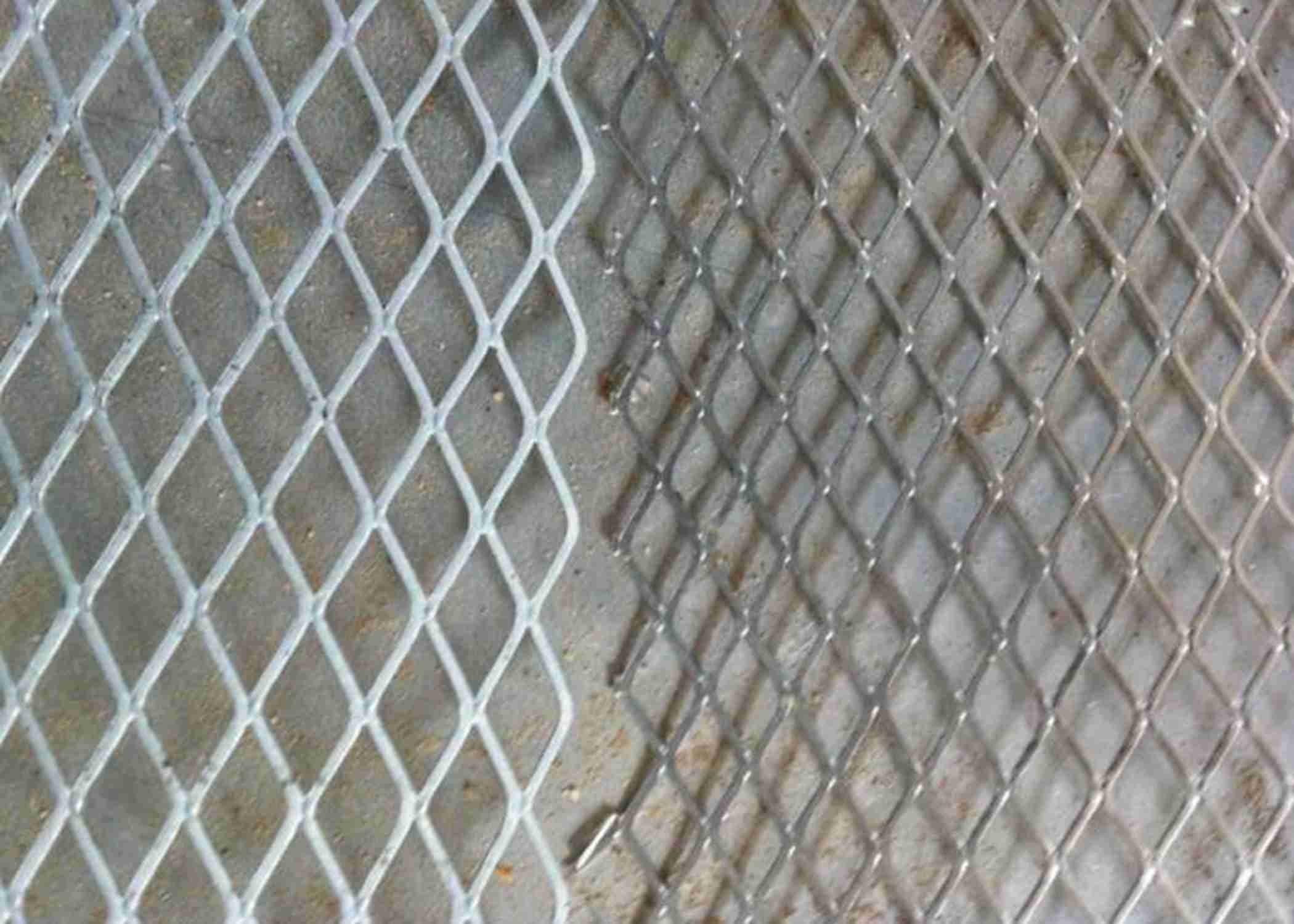

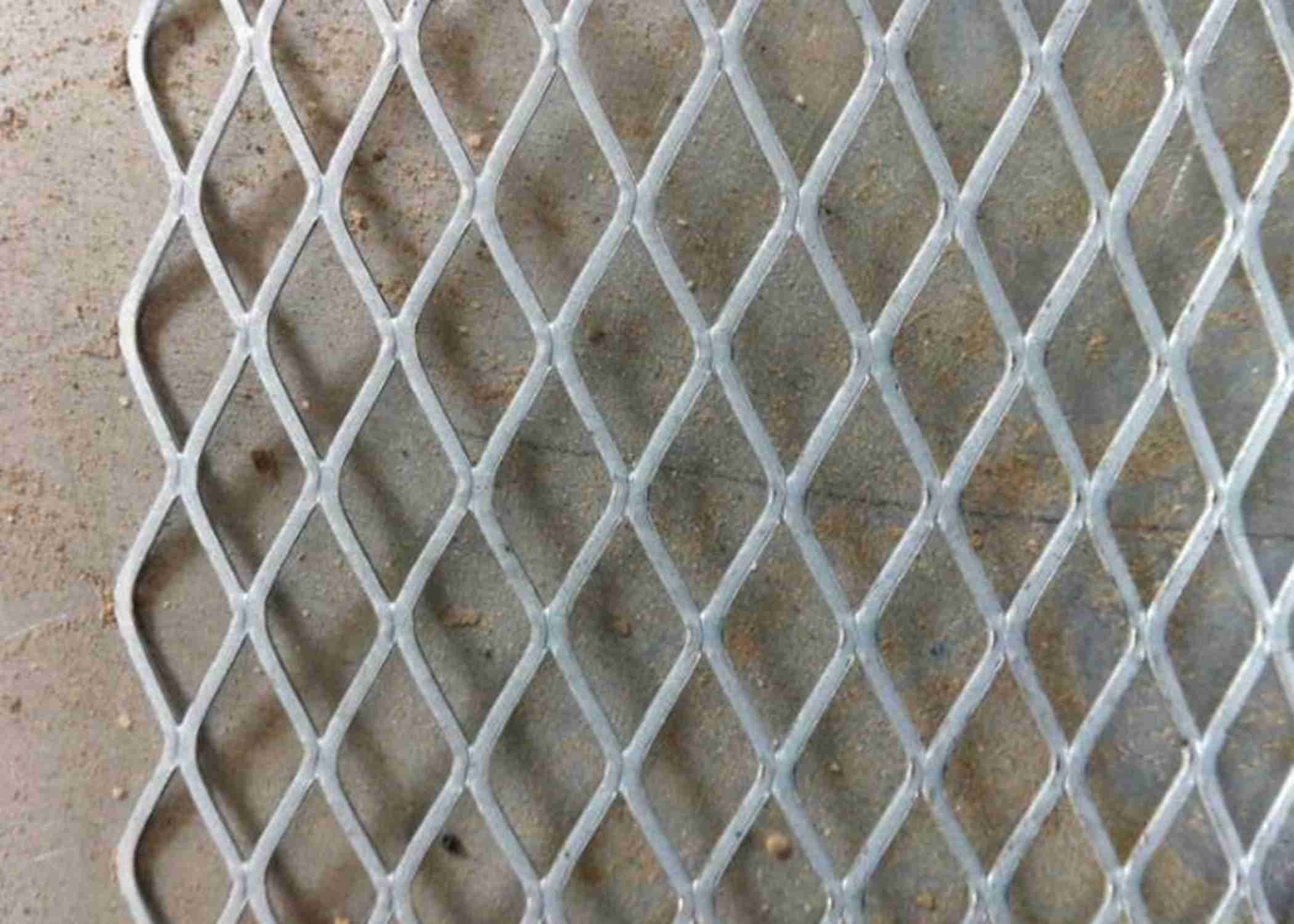

Flattened Expanded Metal With Material Stainless Steel 304, 316, etc

Flattened Expanded Metal With Material Stainless Steel 304, 316, etc



Features:



Smooth surface. It supplies a e and smooth surface, which will not hurt people.
Corrosion and rust resistance. Various surface treatment and aluminum, stainless steel materials have outstanding chemical stability.
Lightweight. The aluminum expanded metal sheet is lightweight and it can save materials and freight costs.
Easy to install and uninstall. The installation of flattened expanded metal sheet is easy and no need any special tools.
Wide range of applications. The flattened expanded metal sheets are widely seen in our daily life, such as shelves, wastebaskets, furniture, etc.



Applications of flattened expanded metal sheet:



Shelves in shopping malls and supermarkets.
Furniture in parks and other city corners.
Wastebaskets, desk organizers, desk stays and other office supplies.
Decorative mesh in interior of buildings and hotels.
Support mesh in the expanded metal filter element.
Bicycle basket on all kinds of bicycles.
Elevator gate on the construction site.





Flattened Diamond Hole Expanded Metal Mesh Smooth Surface SS304 SS316 ETC 2







Packing:



Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type
