Raised Stainless Steel Expanded Metal Acid Resistance 0.5 To 8mm

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xFeatures | Acid And Alkali Resistance. | Product Name | Micro Expanded Metal Mesh |
---|---|---|---|
Material | Stainless Steel | Surface | Bright Silver |
Pattern | Raised Type | Hole | Diamond |
Thickness | 0.5 To 8mm | Width | Max 2200mm |
Length | Customized | Application | Walkways. Scaffold Gratings, Wall Cladding, Etc |
Highlight | Raised stainless steel expanded metal,0.5mm stainless steel expanded metal,8mm stainless steel wire mesh screen |

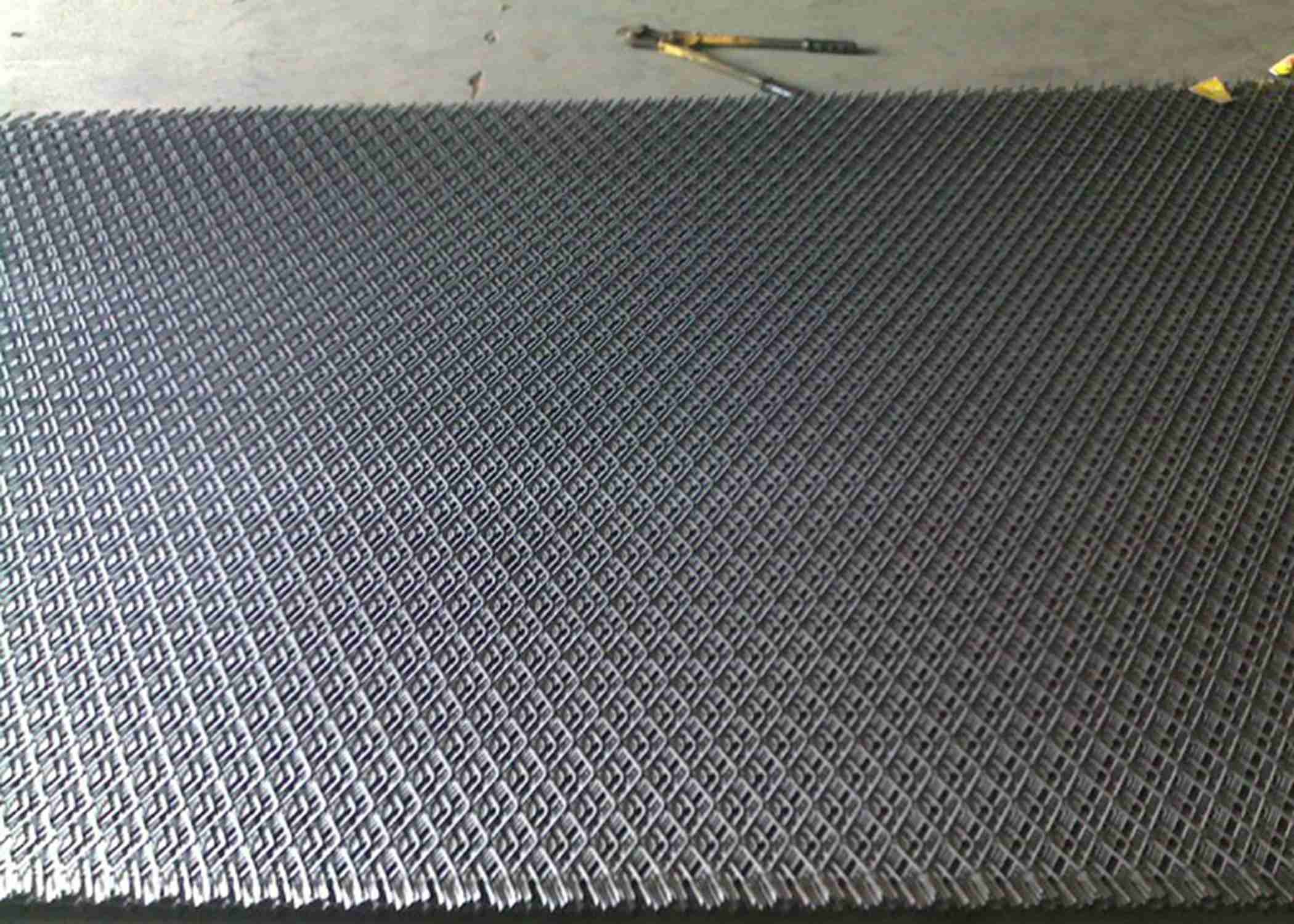

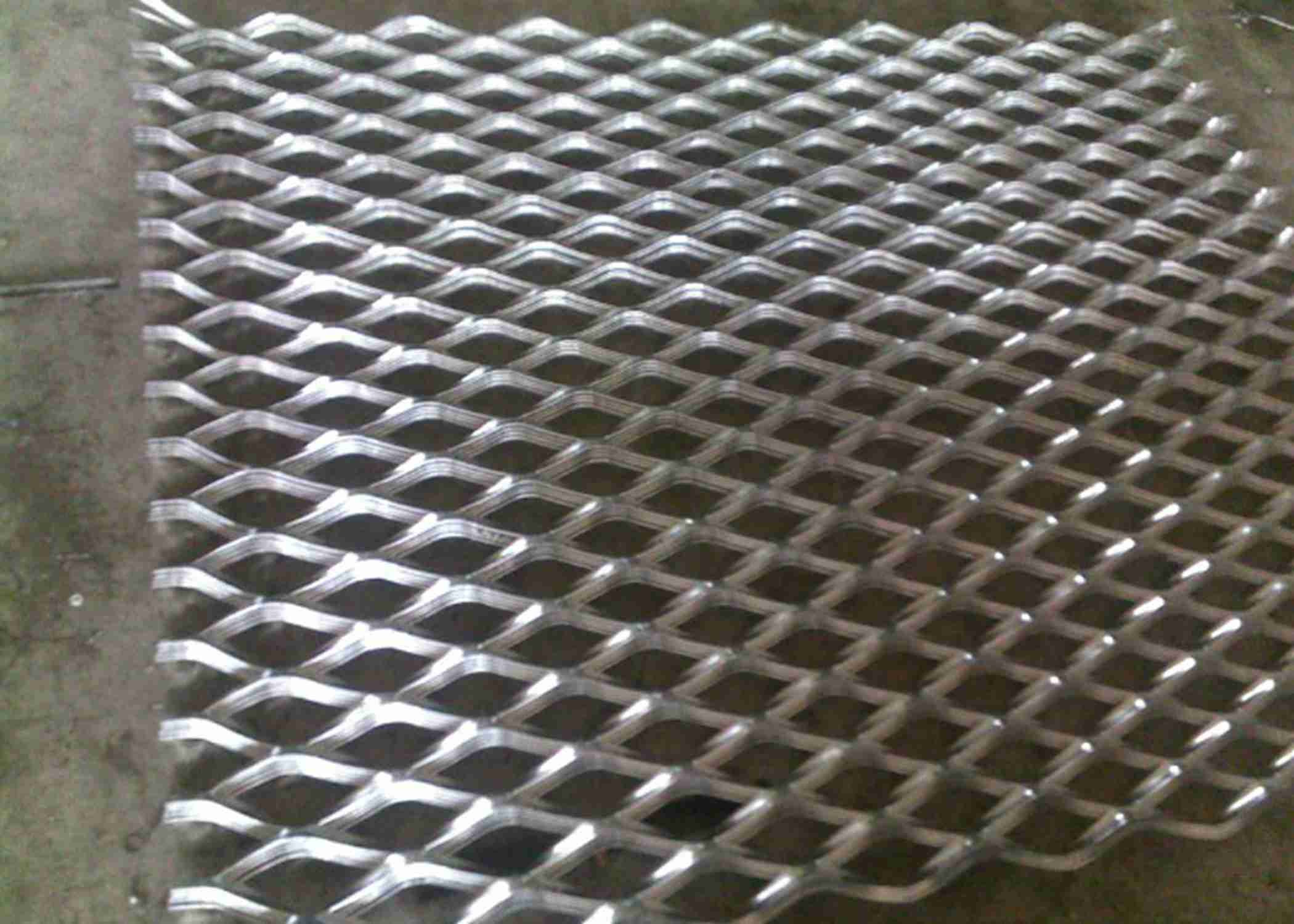

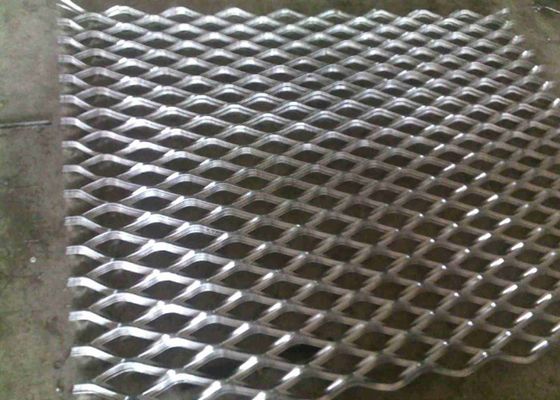

Raised Expanded Metal Diamond Hole Stainless Steel Expanded Metal Mesh
Raised expanded metal sheet introduction:
Raised expanded metal sheet is the common type of expanded metal sheet. The raw material sheets are slit and stretched into diamond, hexagonal and other hole patterns. Compared with flattened expanded metal sheet, which has a smooth surface, the raised expanded metal sheet has a slightly raised surface, which can supply better anti-slip performance. Additional, it will add additional strength and rigidity to the expanded metal sheet.
Materials of raised expanded metal sheet:
Raised expanded metal sheet can be made of steel expanded metal sheet, aluminum expanded metal sheet, stainless steel expanded metal sheet and other alloy sheet. Steel expanded metal sheet can be electric galvanized, hot-dipped galvanized or PVC coated. Galvanized expanded metal sheet can supply bright and chemical stabilized surface and the PVC coated expanded metal sheet can supply various colors to suit different environments and applications. Stainless steel expanded metal sheet supplies chemical and biological stabilization. Additional, the stainless steel expanded metal sheet is the most durable type.
Hole patterns of raised expanded metal sheet:
Raised expanded metal sheet can be produced into different hole patterns, different hole patterns can be used in different applications. The common hole patterns are diamond holes, hexagonal hole, oval holes and other decorative holes. You can choose the perfect one to suit your applications.
Specifications:
Raised Expanded Metal | |||||
Mesh Pitch | Mesh Pitch | Strand Width(mm) | Strand Thickness(mm) |
Sheet Size (mm) |
Material Type |
LW (mm) | SW (mm) | ||||
3 | 1.9 | 0.6 | 0.4 | 500 x 1000 | Mild Steel |
5.84 | 3.5 | 0.79 | 0.6 | 1250 x 1250 | Mild Steel |
10.24 | 5.64 | 1.55 | 0.9 | 1250 x 1250 | Mild Steel |
19.05 | 7.43 | 1.7 | 0.9 | 1250 x 2500 | Mild Steel |
19.05 | 9.5 | 1.22 | 1.2 | 1250 x 1250 | Mild Steel |
25.4 | 12.7 | 1.27 | 1.2 | 1250 x 1250 | Mild Steel |
25.4 | 13.5 | 3 | 0.9 | 1250 x 2500 | Mild Steel |
28.58 | 9.52 | 1.98 | 1.2 | 1250 x 2500 | Mild Steel |
30.48 | 11.72 | 2.36 | 1.6 | 2440 x 1220 | Mild Steel |
30.48 | 11.72 | 1.98 | 1.6 | 2440 x 1220 | Mild Steel |
38.1 | 16.93 | 3.08 | 1.6 | 2440 x 1220 | Mild Steel |
38.1 | 16.48 | 2.25 | 1.6 | 2440 x 1220 | Mild Steel |
50.8 | 22.58 | 3.89 | 3 | 2440 x 1220 | Mild Steel |
50.8 | 22.58 | 3.12 | 3 | 2440 x 1220 | Mild Steel & H D Galv |
50.8 | 22.58 | 2.52 | 2.5 | 2440 x 1220 | Mild Steel |
50.8 | 22.58 | 3.05 | 1.6 | 2440 x 1220 | Mild Steel |
76.2 | 33.87 | 3.58 | 3 | 2440 x 1220 | Mild Steel |
85.73 | 40.64 | 3.18 | 3 | 2440 x 1220 | Mild Steel |
101.6 | 50.8 | 5.03 | 3 | 2440 x 1220 | Mild Steel |
101.6 | 50.8 | 3.35 | 3 | 2440 x 1220 | Mild Steel |
121.92 | 31.28 | 3.5 | 3 | 2440 x 1220 | Mild Steel |
5.84 | 3.5 | 0.79 | 0.6 | 1250 x 1250 | Pre-Galv |
5.84 | 3.5 | 0.79 | 0.6 | 1250 x 2500 | Pre-Galv |
10.24 | 5.64 | 0.79 | 0.6 | 1250 x 1250 | Pre-Galv |
10.24 | 5.8 | 2.45 | 1.5 | 750 x 1250 | Pre-Galv |
19.05 | 9.5 | 1.22 | 1.2 | 1250 x 1250 | Pre-Galv |
25.4 | 12.7 | 1.27 | 1.2 | 1250 x 1250 | Pre-Galv |
30 | 11.1 | 1.83 | 0.9 | 1250 x 700 | Pre-Galv |
50.8 | 23 | 2.5 | 0.6 | 1250 x 2440 | Pre-Galv |
5.84 | 3.5 | 0.79 | 0.5 | 1250 x 1250 | Aluminium |
5.84 | 3.5 | 0.79 | 0.5 | 1250 x 2500 | Aluminium |
5.84 | 3.5 | 0.79 | 0.5 | 1250 x 3000 | Aluminium |
10.24 | 5.64 | 1.17 | 1.2 | 1250 x 1250 | Aluminium |
10.24 | 5.64 | 1.55 | 0.9 | 1250 x 1250 | Aluminium |
10.24 | 5.64 | 1.55 | 0.9 | 1250 x 2500 | Aluminium |
19.05 | 12.7 | 1.1 | 1.2 | 1250 x 2500 | Aluminium |
19.05 | 7.43 | 1.7 | 0.9 | 1250 x 2500 | Aluminium |
19.05 | 9.5 | 1.22 | 1.2 | 1250 x 1250 | Aluminium |
25.4 | 11.67 | 1.27 | 1.2 | 1250 x 1250 | Aluminium |
30.48 | 11.72 | 2.36 | 1.2 | 1250 x 2500 | Aluminium |
50.8 | 22.58 | 3.12 | 3 | 2500 x 1250 | Aluminium |
5.84 | 3.39 | 0.8 | 0.5 | 1250 x 1250 | Stainless 304 |
19.05 | 7.26 | 1.71 | 0.9 | 1000 x 2000 | Stainless 304 |
38.1 | 16.48 | 1.91 | 1.2 | 2500 x 1250 | Stainless 304 |
50.8 | 23.44 | 2.65 | 1.2 | 2500 x 1250 | Stainless 304 |
30 | 10.5 | 1.5 | 0.5 | 2500 x 700 | Stainless 304 |
50.8 | 22.5 | 1.6 | 0.6 | 1250 x 2440 | Stainless 430 |
Features of raised expanded metal sheet:
1) Outstanding corrosion resistance
Our expanded metal is ideal for applications involving industrial acids, for the electroplating of baskets and in seawater for fish cages and lobster pots.
When suitably coated, expanded metal mesh, due to the absence of joins and welding seams, offers better performance than woven and welded mesh.
2) Premium reinforcement properties
Expanded metal works as a barrier for the purposes of security and storage.
Our Securilath products impede illegal access through walls and partitions whilst simultaneously strengthening the resilience of the protected area.
3) Anti-skid surface
The knuckles formed by expanding mesh offer secure grip when deployed for steps, ramps and walkways.
We have also developed a range of specific slip-resistant walkway meshes.
Applications of raised expanded metal sheet:
Barbecue grill.
Walkways.
Scaffold gratings.
Trench cover.
Wall cladding.
Interior wall decorations.
Brick mesh.
Machine protective guarding and fence.
Isolation fence in factories.
Car grilles and speaker grills.
Packing:
Expanded metal should be packed firmly and securely.When packing, expanded metal appears in roll type and flat type
