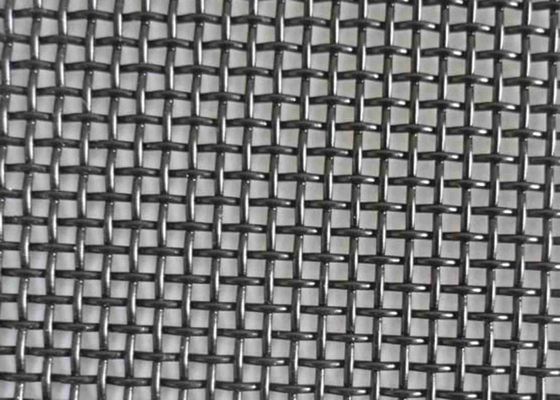

8 To 14 Mesh Galvanized Metal Wire Mesh Screen High Tensile

  • 8 To 14 Mesh Galvanized Metal Wire Mesh Screen High Tensile
  • 8 To 14 Mesh Galvanized Metal Wire Mesh Screen High Tensile
  • 8 To 14 Mesh Galvanized Metal Wire Mesh Screen High Tensile
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 10Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case or pallets.
Delivery Time 2 weeks
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Security Screen Mesh Material Galvanized Wire
Standard ASTM Hole Shape Square Hole
Mesh Counts 10, 11, 12, Etc Surface Hot Dipped Gavanized
Width 0.5m O 1.5m Length 1m To 2.4m
Property High Durable Application Screen For Window And Doors
Highlight

TENGLU 0.105'' 14 Mesh metal wire mesh screen

,

Galvanized metal wire mesh screen

,

8 Mesh metal mesh screen
Leave a Message
Product Description

High Level Security 8 to 14 mesh High Tensile Galvanized Security Screen Mesh



Introduction:


In addition to stainless steel security screen, 11 mesh galvanized steel security screen made from hot dipped high tensile galvanized steel wire and black power coated is another strong and durable security screen for windows and doors. This type woven galvanized mesh is popular in Australia market. Compared with stainless steel mesh, galvanized steel mesh is more Economic and Higher strength.


Material:


Stainless Steel Wire, galvanized wire

The stainless steel wire mesh is made from 316 marine grade stainless steel and 304 grade stainless steel, offer high level security.


Weave Type: Plain Weave


Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


Features:


Offer high resistance to forced impact, provide peace of mind;
Meet the high aesthetic designs that enhance the architectural appeal;
Weave high tensile wire without free from any defect;
Keep out mosquito and flies,maintain a barrier to insects;
Ideal for use in a variety of geographic locations;
Anti-oxidation, anti-corrosion;
No rust, also has anti-rat, anti-snake and fire prevention.


Application:


Security (e) window screens ,Security(e) door screens.
1.Hinged Doors
2.Sliding Doors
3.Double Doors
4.Security Screens
5.Fire Escape Exit Screens
6.Cyclone Screens.

Woven Mesh Security Screen, 8/10/11/12/14mesh With SS304/316 and Aluminum


Specifications:



Material: 0.8 mm diameter high tensile hot dipped galvanized steel wire.
Equal Aperture: 11 mesh × 11 mesh.
Surface treatment: Black powder coated or bright mesh.
Process: Plain weave mesh with flat and straight surface.
High strength: 1250 MPa – 1350 MPa.
Standard: meet Australia standard.
Panel size: 750/900/1200/1500 mm width and 2000/2400/3000 mm length.
Other Mesh: 14 mesh × 0.5 mm, 12 mesh × 0.6 mm, 12 mesh × 0.7 mm, 10 mesh × 0.8 mm, 10 mesh × 0.9 mm, 10 mesh × 1.2 mm.
Package: 25 PCS/50 PCS packing in a wooden case, waterproof paper covered each PC, then pallet packaged.





Mesh/Inch Wire Diameter Aperture Open Area Weight
mm mm % Kgs/㎡
8 0.80 2.375 55.95 2.56
10 0.90 1.640 41.68 4.05
10 0.50 1.740 46.92 3.20
12 0.70 1.416 44.79 2.94
14 0.60 1.214 44.79 2.52
14 0.50 1.314 52.47 1.75



Mesh/Inch Wire Diameter Aperture Open Area Weight
Inch Inch % Kgs/㎡
8 0.0314 0.0935 55.95 2.56
10 0.0354 0.0645 41.68 4.05
10 0.0314 0.0685 46.92 3.20
12 0.0275 0.0557 44.79 2.94
14 0.0236 0.0478 44.79 2.52
14 0.0196 0.0517 52.47 1.75



Security Window and Door Screen Mesh Product List:


Stainless Steel Security Door Screens
Stainless Steel 304 Security Screen
316 Stainless Steel Security Screen
Aerometal Mesh
Security Window Screen
Galvanized Steel Security Screen
Anti-pollen Screen
Sun Shade Window Screen
Plisse Mesh
Micro Mesh
Knife-resistant Screen Mesh
316L Stainless Steel Screen Mesh
304 Stainless Steel Mesh

Packing:



8 To 14 Mesh Galvanized Metal Wire Mesh Screen High Tensile 2
