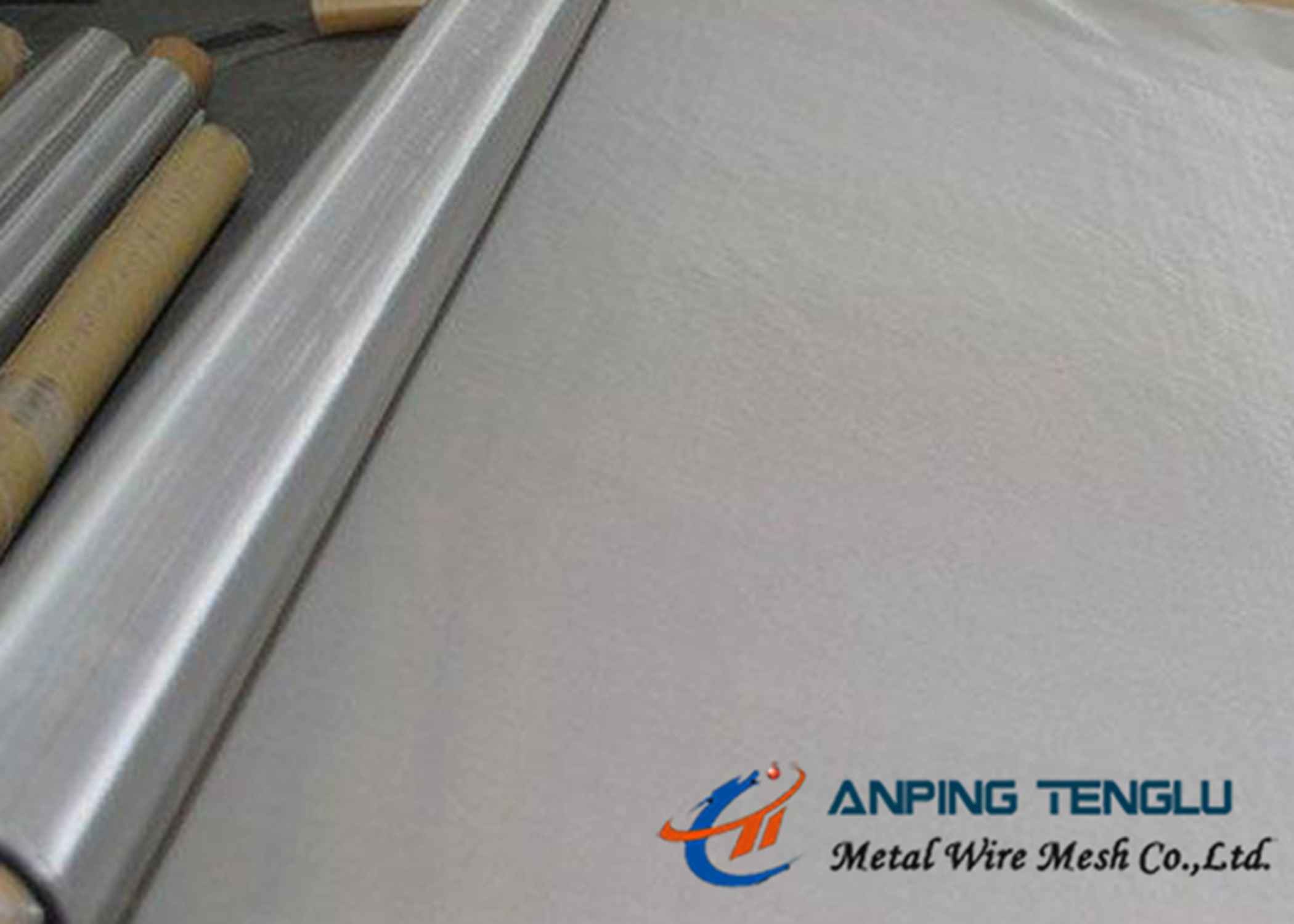

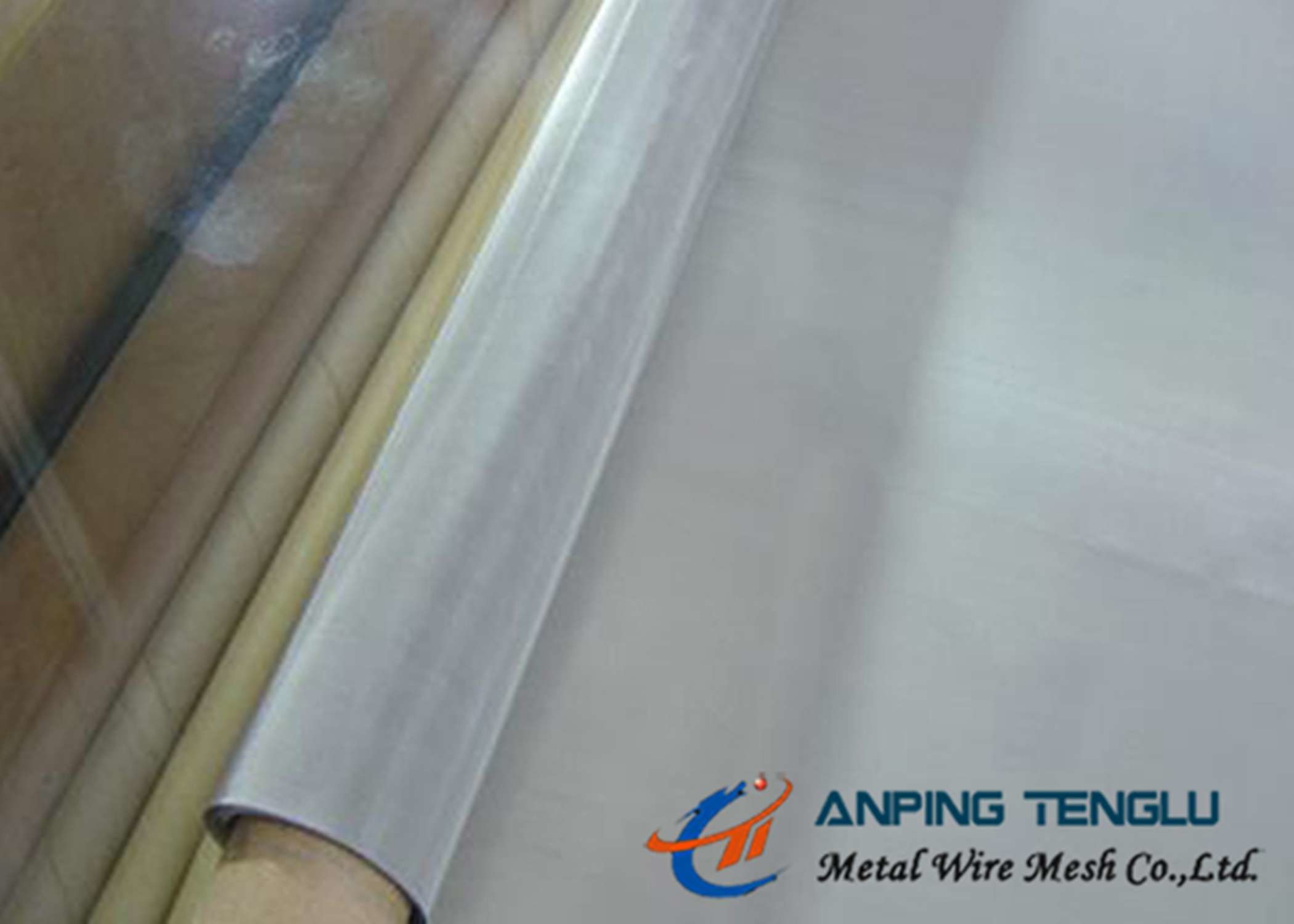

165x1400 Mesh Stainless Steel Dutch Wire Mesh SS304 SS316

Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Name | Stainless Steel Dutch Wire Mesh | Material | SS304 SS316 |
---|---|---|---|
Aperture | 10 Micron | Mesh Counts | 165 X 1400 |
Wire Diameter | 0.0028" X 0.0016" | Thickness | 0.0059" |
Weaving Type | Twilled Dutch Weave | Roll Width | 48", 60" |
Roll Length | 100' | Application | Filtration |
Highlight | 10um 1400 Mesh Stainless Steel Dutch Wire Mesh,10um 165 Mesh Stainless Steel Dutch Wire Mesh,SS316 metal wire mesh screen |
T-304SS 165 x 1400 Twilled Dutch Weave Stainless Steel Dutch Wire Mesh
Dutch twilled weave Wire Mesh Introduction:
Twilled dutch weave is a particularly robust mesh in relation to its fineness, which makes it ideally suited to heavy-duty filtration tasks.
These properties are realized through the high material density of this lightproof metal fabric. The density is provided by a twilled weave (2/2) with a small number of thick warp wires and significantly more weft wires. Due to the complex manufacturing process, production of this mesh takes longer than that of other meshes, we keep pre-assembled twilled dutch weave in stock for its customers.
Our produces TWILLED DUTCH WEAVE with a fineness of 5 μm to 250 μm absolute aperture. Twilled dutch weave is produced on the basis of the common materials in accordance with DIN 1.4306/1.4404. On request customized versions with special materials such as nickel or Hastelloy are also available.
Specifications of Twill Dutch Weave Wire Mesh
Mesh/Inch Warp×Weft |
Wire Diameter Warp×Weft (mm) |
Aperture Size μm |
Weight kg/㎡ |
Thickness (mm) |
20×270 | 0.25×0.2 | 119 | 3.14 | 0.65 |
20×200 | 0.355×0.28 | 118 | 4.58 | 0.915 |
24×300 | 0.28×0.18 | 110 | 3.01 | 0.64 |
20×150 | 0.45×0.355 | 101 | 6.02 | 1.16 |
30×340 | 0.28×0.16 | 89 | 2.84 | 0.60 |
30×270 | 0.28×0.20 | 77 | 3.41 | 0.68 |
40×540 | 0.18×0.10 | 70 | 1.73 | 0.38 |
40×430 | 0.18×0.125 | 63 | 2.09 | 0.43 |
50×600 | 0.125×0.09 | 51 | 1.47 | 0.305 |
50×500 | 0.14×0.11 | 47 | 1.83 | 0.364 |
65×600 | 0.14×0.09 | 36 | 1.59 | 0.32 |
70×600 | 0.14×0.09 | 31 | 1.61 | |
78×760 | 0.112×0.071 | 1.25 | 0.254 | |
78×680 | 0.112×0.08 | 29 | 1.37 | 0.272 |
80×680 | 0.112×0.08 | 28 | 1.38 | |
90×850 | 0.10×0.063 | 26 | 1.12 | 0.226 |
90×760 | 0.10×0.071 | 24 | 1.23 | 0.242 |
100×850 | 0.10×0.063 | 22 | 1.14 | 0.226 |
130×1500 | 0.063×0.036 | 21 | 0.64 | 0.135 |
100×760 | 0.10×0.071 | 20 | 1.25 | 0.242 |
130×1200 | 0.071×0.045 | 18 | 0.80 | 0.161 |
130×1100 | 0.071×0.05 | 17 | 0.87 | 0.171 |
150×1400 | 0.063×0.04 | 15 | 0.71 | 0.143 |
160×1500 | 0.063×0.036 | 0.67 | 0.135 | |
165×1500 | 0.063×0.036 | 14 | ||
174×1700 | 0.063×0.032 | 13 | 0.62 | 0.127 |
165×1400 | 0.063×0.04 | 0.73 | 0.143 | |
174×1400 | 0.063×0.04 | 11 | 0.74 | |
203×1600 | 0.05×0.032 | 10 | 0.58 | 0.114 |
216×1800 | 0.045×0.03 | 0.53 | 0.105 | |
203×1500 | 0.056×0.036 | 9 | 0.67 | 0.128 |
250×1900 | 0.04×0.028 | 8 | 0.51 | 0.096 |
250×1600 | 0.05×0.032 | 0.63 | 0.114 | |
285×2100 | 0.036×0.025 | 7 | 0.44 | 0.086 |
300×2100 | 0.036×0.025 | 6 | ||
317×2100 | 0.036×0.025 | 5 | ||
325×2300 | 0.036×0.024 | 4 | ||
363×2300 | 0.032×0.022 | 0.40 | 0.076 |
Material:
302, 304, 304L, 316, 316L , 430, 309, 310S.
Peformance:
Corrosion resistance, acid resistance, alkali resistance, high temperature resistance, good filter performance, strong tension and wearability.
Weave Pattern:
Application:
it is used for sieving and filtration in acid and alkali environment, mud mesh in petroleum industry, sieving filter mesh in chemical fiber, acid washing mesh in electro galvanized industry, we can produce design and produce according to customre request, also OEM is acceptable.
Packing:
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
