80x700 Mesh 1.0m Stainless Steel Dutch Wire Mesh 48"

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Plain Dutch Wire Mesh
Material SS304 SS316 Surface Bright Silver
Mesh Counts 80 X 700 Wire Dia. 0.125mm × 0.04mm
Weaving Type Plain Dutch Weave (PDW) Roll Width 1.0m, 1.2m, 1.5m, 1.6m; 36", 48", Etc
Roll Length 10m, 20m, 30m, 100', Etc Application Filtration Industry
High Light

1.0m Stainless Steel Dutch Wire Mesh

,

1.0m 700 Mesh Stainless Steel Dutch Wire Mesh

,

1.0m 48" ss wire mesh screen

Leave a Message
Product Description

80*700opi Plain Dutch Weave (Pdw) High Precision Ss Dutch Wire Mesh



80*700opi Plain Dutch Weave Wire Introduction:



Plain dutch weave wire cloth is woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire.



The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The mainly used of this wire cloth are filtration and separation of liquid .



80 x700 Specifications



Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
80×700 0.125×0.04 0.0049×0.0015 40 0.59 1.29



Common Specifications of Plain Dutch Wire Mesh



Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)

7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

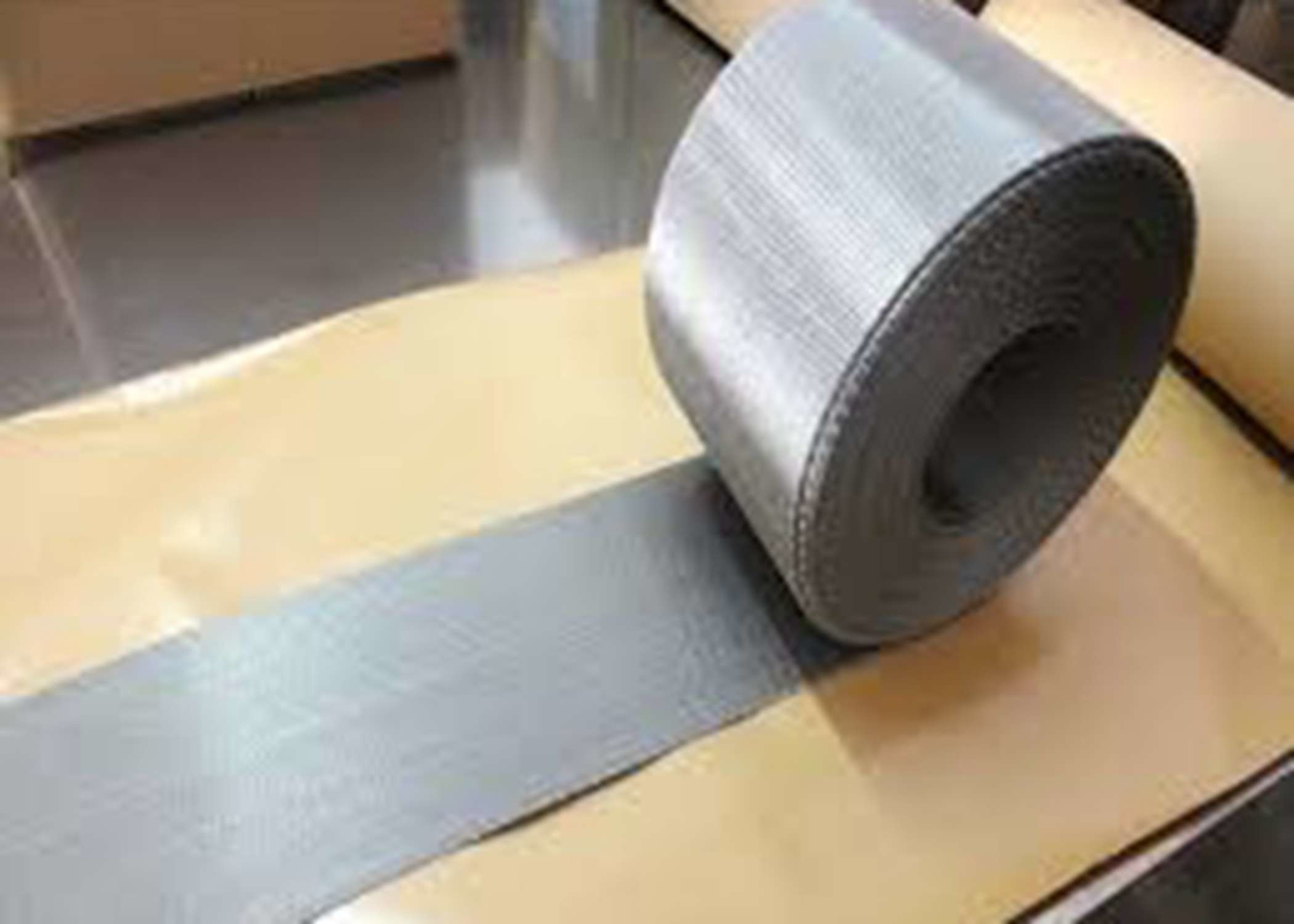

80*700OPI Plain Dutch Weave(PDW) Filter Cloth, With High Precision



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Excellent filtration performance;

Acid resistance;
High temperature resistance;
Tensil and abrasion resistence;
Stability of filtration;
Fine and high precision;
Special filtration performance.



Material:



Stainless Steel 304, 304L, 316, 316L, etc.



Weaving methods:

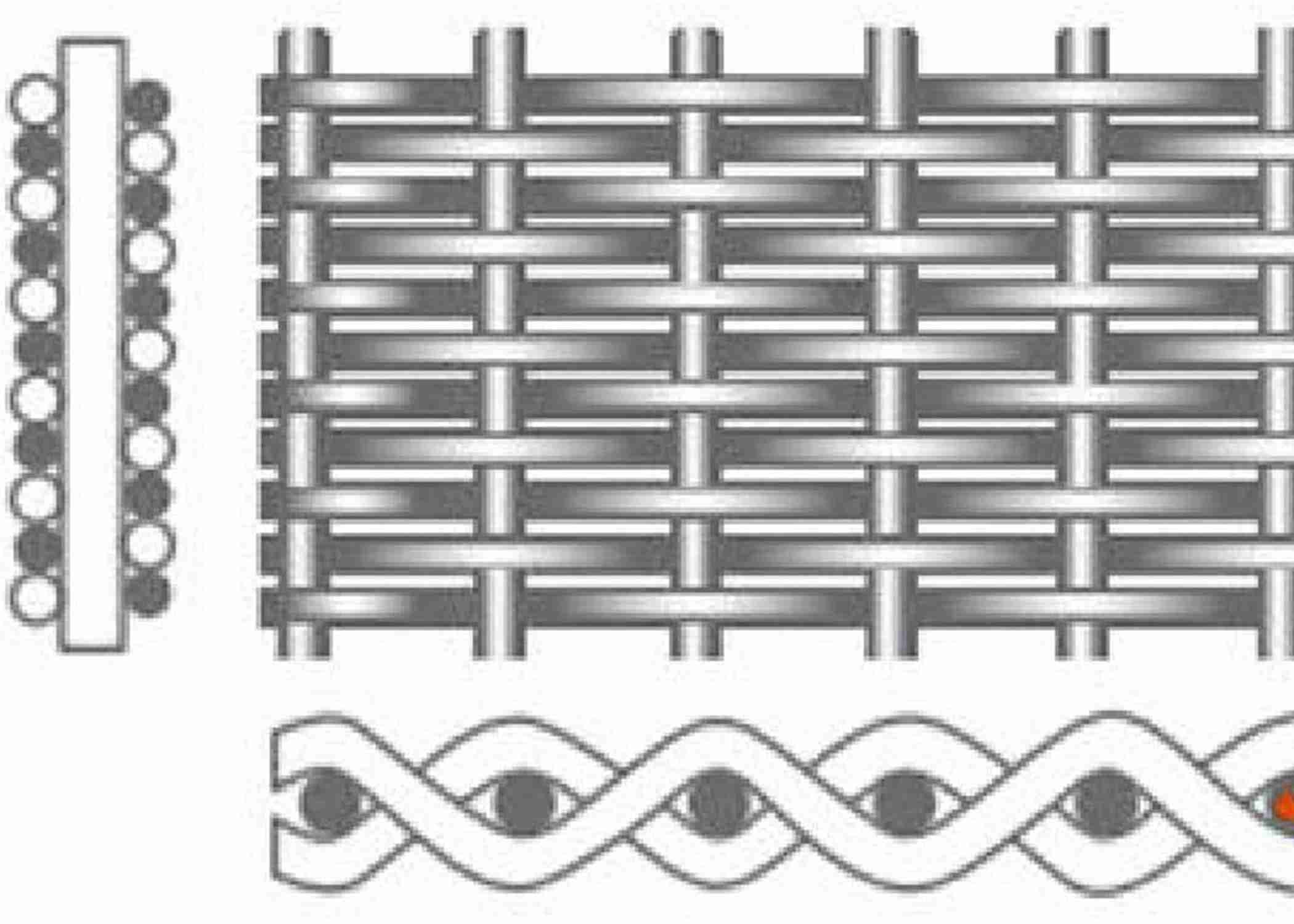

Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")

80*700OPI Plain Dutch Weave(PDW) Filter Cloth, With High Precision

Woven as a plain weave, but with the warp wires of greater diameter than the weft wires. The weft wires are very close together so that a so-called zero-mesh structure is formed; while the warp wires are thicker and arranged wider apart.



Application:


Pressure filters for fine filtration in hydraulic steering equipment;
Oil and fuel filters;
Ressure and vacuum filters (disc, cell and drum filters);
As porous media for fluidised beds;
Pre-coat filters;
Filter candles;
Protection of steering and fuel injection nozzles;
Insulation / sound attenuation (e.g. aircraft engines), etc.



80*700OPI Plain Dutch Weave(PDW) Filter Cloth, With High Precision



Packing:



80x700 Mesh 1.0m Stainless Steel Dutch Wire Mesh 48" 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
