0.15mm To 0.6mm Black Stainless Steel Mesh 12x64 Mesh To 40x200 Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Black Mild Steel Dutch Weave Wire Cloth
Material Iron, Black Wire Cert ISO 9001: 2015
Mesh Count 12 X 64 To 40 X 200 Wire Diameter 0.15mm To 0.6mm
Weaving Type Dutch Weave Roll Width 36", 48", 0.6m, 1m, 1.2m, Etc
Roll Length 100', 30m, Etc Application Widely Used For Filtering In Various Industries.
High Light

0.6mm black stainless steel mesh

,

0.1m 0.15mm black stainless steel mesh

,

TENGLU 0.1m 200 Mesh black metal mesh screen

Leave a Message
Product Description

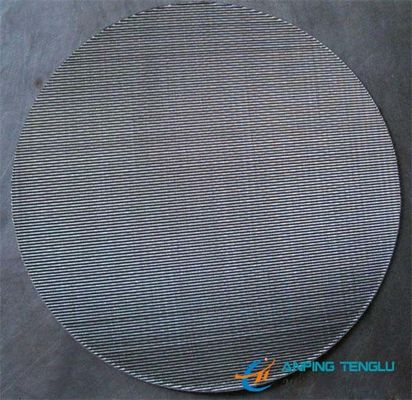

Dutch Weave 12 X 64 Mesh To 40 X 200 Mesh Black Mild Steel Wire Cloth

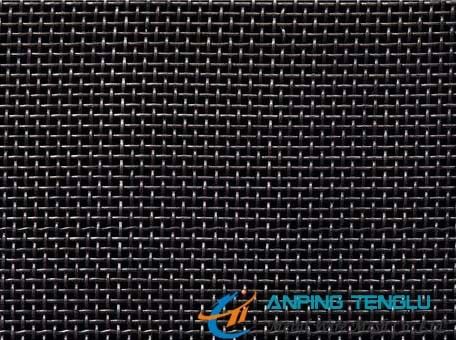

Black Mild Steel Wire Cloth is made in plain steel wire, it is also named black wire cloth, black iron woven mesh, carbon steel mesh, which is widely used as filters in rubber industry, plastics industry and grain industry.


Dutch Weave Type Specifications



Black Wire Cloth Dutch Weave
Mesh Wire Diameter (mm)
12X64 0.58/0.64
14X88 0.50/0.33
24X110 0.36/0.25
30X150 0.23/0.18
40X200 0.18/0.13

Plain Weave Type Specifications


Black Mild Steel Wire Cloth
Mesh/Inch

Opening

(mm)

Wire Diameter

( mm)

Reference weight

(kg/㎡)

10mesh x 10mesh 1.94 0.6 1.8
10mesh x 10mesh 1.98 0.56 1.56
12mesh x 12mesh 1.52 0.6 2.16
12mesh x 12mesh 1.56 0.56 1.88
18mesh x 18mesh 0.96 0.45 1.82
18mesh x 18mesh 1 0.41 1.52
18mesh x 18mesh 1.04 0.37 1.23
18mesh x 18mesh 1.06 0.35 1.1
20mesh x 20mesh 0.86 0.41 1.68
20mesh x 20mesh 0.9 0.37 1.38
22mesh x 22mesh 0.74 0.35 1.33
22mesh x 22mesh 0.79 0.3 0.99
24mesh x 24mesh 0.7 0.35 1.5
26mesh x 26mesh 0.63 0.35 1.66
28mesh x 28mesh 0.6 0.31 1.36
30mesh x 30mesh 0.64 0.31 1.46
32mesh x 32mesh 0.5 0.29 1.36
34mesh x 34mesh 0.47 0.28 1.3
36mesh x 36mesh 0.47 0.28 1.3
38mesh x 38mesh 0.41 0.26 1.1
40mesh x 40mesh 0.39 0.25 1.2
40mesh x 40mesh 0.41 0.23 1.06
40mesh x 40mesh 0.43 0.21 0.88
42mesh x 42mesh 0.365 0.24 1.1
44mesh x 44mesh 0.347 0.23 1
46mesh x 46mesh 0.332 0.22 1
48mesh x 48mesh 0.319 0.2 0.96
50mesh x 50mesh 0.318 0.19 0.91
50mesh x 50mesh 0.338 0.17 0.72
56mesh x 56mesh 0.248 0.17 0.81
60mesh x 60mesh 0.27 0.15 0.68



Normally we provide plain steel wire cloth from 10mesh to 80mesh in square opening, in rolls 30m long and in width of 36", 48", 0.6m, 1m, 1.2m. Other sizes also available at customers specific requirements.



Black Mild Steel Wire Cloth, Dutch Weave 12X64mesh to 40X200mesh



Material: Super quality low carbon steel wire.


Applications:


Mild steel wire mesh and wire cloth are woven by superior quality iron wire in Dutch weave.The weaving method include plain weave and twill weave. Low carbon steel wire meshcan be punched into circular filter or welded multilayer mesh filter. It can be used in rubber industry, plastic industry,oil industry and cereal sifter.


General Size of Black Mild Steel Wire Cloth:


1) Plain Weave: from 6 to 80 mesh;
2) Dutch Weave: from 12X64 mesh to 40X200 mesh.
Black Mild Steel Wire Cloth, Dutch Weave 12X64mesh to 40X200mesh










Packing:



0.15mm To 0.6mm Black Stainless Steel Mesh 12x64 Mesh To 40x200 Mesh 2





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
