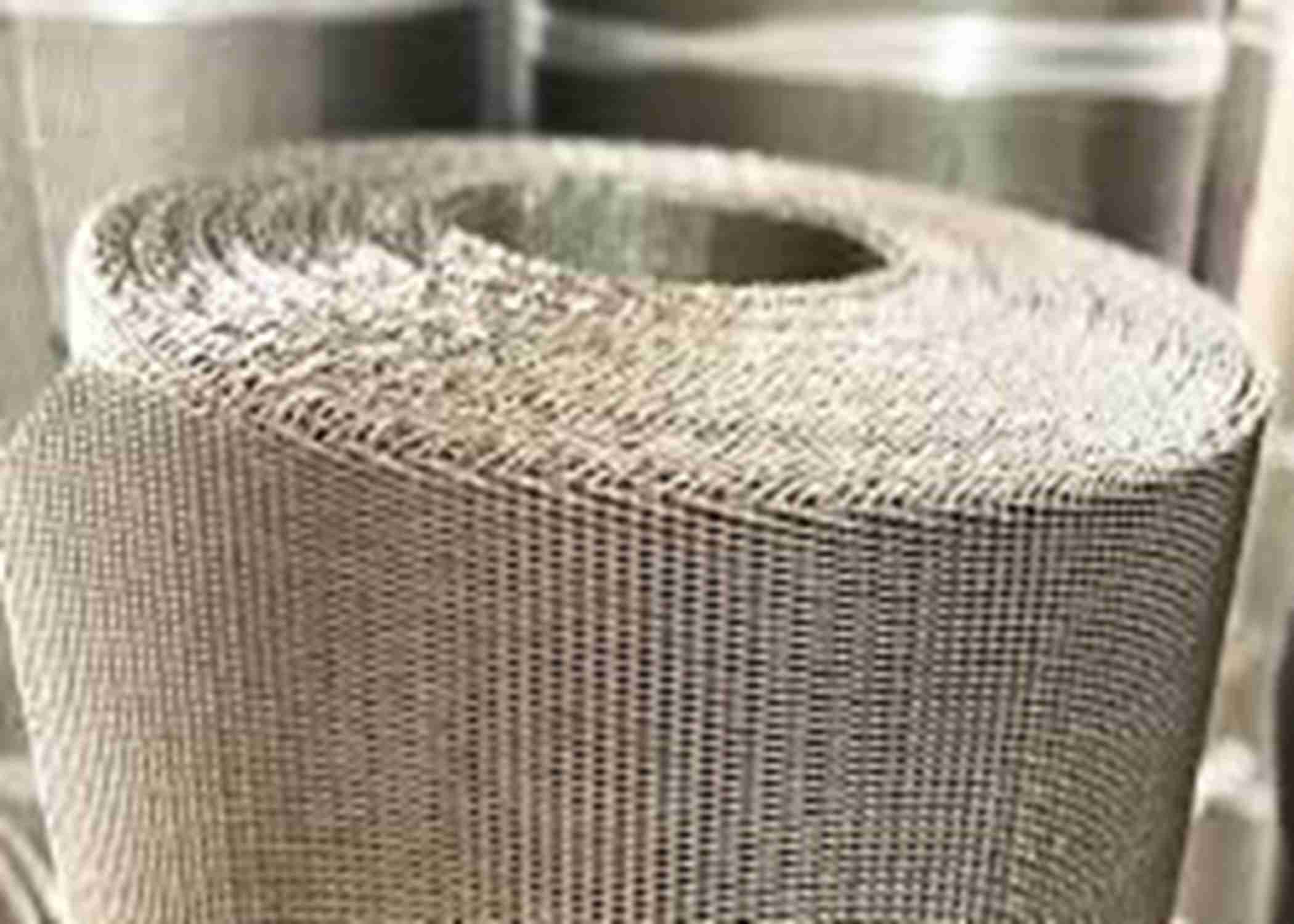

SS304 70x350 Mesh Stainless Steel Dutch Wire Mesh 0.1m To 1.6m

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Plain Dutch Wire Mesh
Material SS304 SS316 Cert ISO 9001: 2015
Surface Bright Silver Mesh Counts 70 X 350
Weaving Type Plain Dutch Weave Roll Width 0.1m To 1.6m
Roll Length 10m, 20m, 30m, Etc Application Widely Used For Filtering In Various Industries.
High Light

0.1m 350 Mesh Stainless Steel Dutch Wire Mesh

,

0.1m 70 Mesh Stainless Steel Dutch Wire Mesh

,

TENGLU 0.1m SS304 dutch weave mesh

Leave a Message
Product Description

35μm 70 x 350Mesh Firm Structure Stainless Steel Plain Dutch Weave Wire Mesh



Plain Dutch Weave Wire Mesh Introduction



Plain Dutch weave wire cloth is woven using two sizes of wire. Smaller wires, as small as micron size, are used in the shute direction and are woven with a larger warp wire. The smaller wires are woven tightly together, providing a tight mesh for filtering. The larger wire provides strength to the mesh. The primary uses of this wire cloth are filtration and separation of liquid and slurry products.



When compared with square, oblong or broad weave meshes, plain dutch weaves offer increased mechanical strength for industrial filtration. Thanks to their closed surface, filtration occurs at the point where warp and weft join. Dutch weave is manufactured in plain weave pattern (1/1), whereby the warp wires are interwoven with a wider pitch than the weft wires. This significantly increases the strength of the mesh in comparison with square meshes.



70 x 350 mesh Specifications



Roll Width: 0.1m-1.6m

Roll Length: 10m, 20m, 30m; 100ft



Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
70×350 0.12 X 0.08mm 0.0047×0.0031 35 0.81 1.78



Common Specifications of Plain Dutch Wire Mesh



Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)

7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

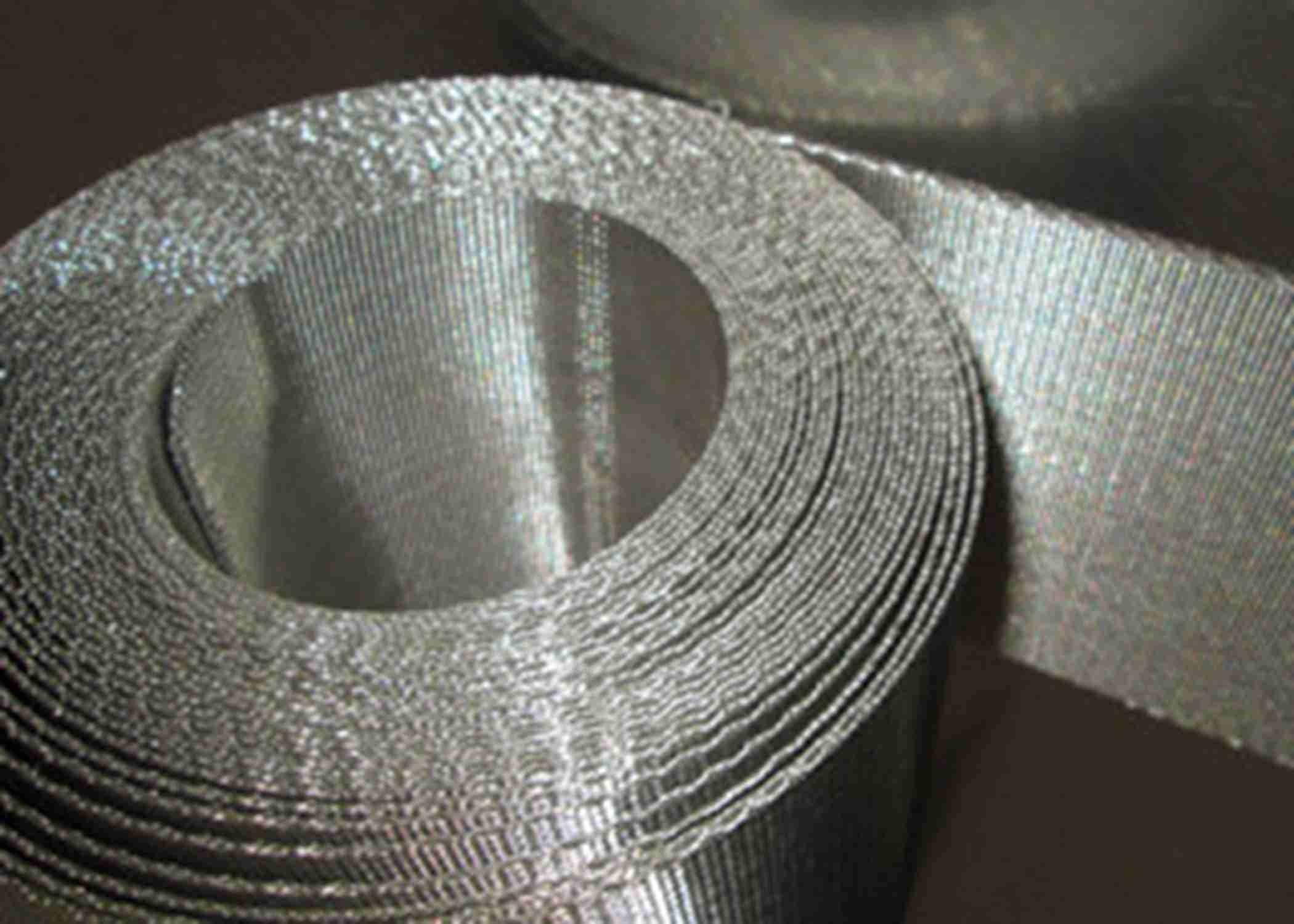

SS304 70x350 Mesh Stainless Steel Dutch Wire Mesh 0.1m To 1.6m 0



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Stainless Steel Dutch Plain Weave Filter Mesh Screen is made of high quality, high strength stainless steel wire. The mesh has so many advantages,such as advanced equipment and production technology, smooth surface, high hardness,constant mesh, no deformation, high temperature resistance, corrosion resistance, flexible network, with excellent filtration performance.



Material:



AISI302, 304, 304L, 316, 304L, 316L, 321, etc.



Weaving Methods:



Plain Dutch Weave ("Warp × Weft" same meaning to "Warp × Shute")

35Micron 70X350Mesh, Plain Dutch Weave Filter Cloth, Firm Structure



Application:



1.Products are mainly used for gas separation, liquid filtration and other medium;
2.Widely used in precision pressure filter, fuel filter, vacuum filter, filter materials, aerospace, petroleum, pharmaceutical, sugar, oil, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, food, health, scientific research and other industries.



35Micron 70X350Mesh, Plain Dutch Weave Filter Cloth, Firm Structure


Packing:

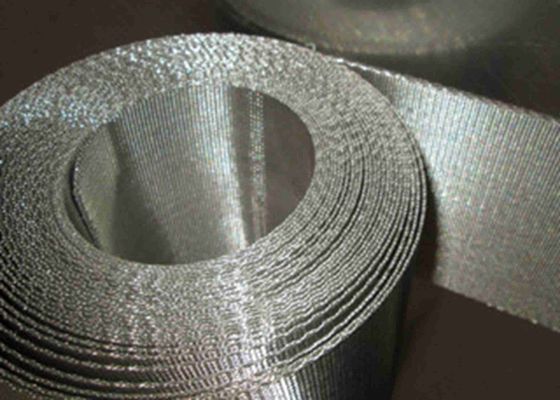

SS304 70x350 Mesh Stainless Steel Dutch Wire Mesh 0.1m To 1.6m 3





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
