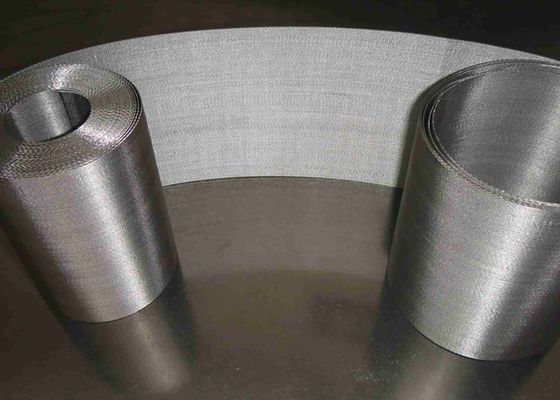

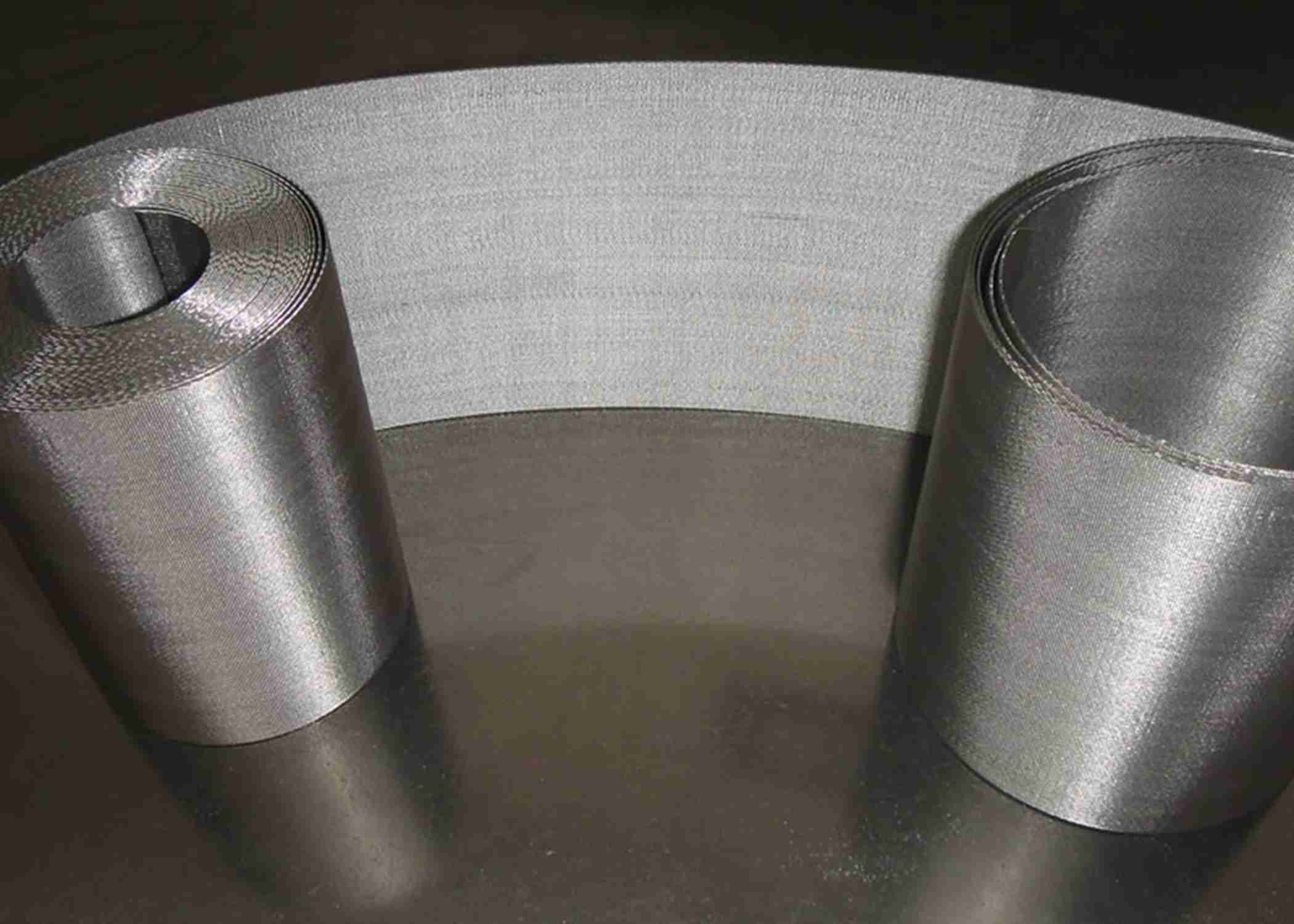

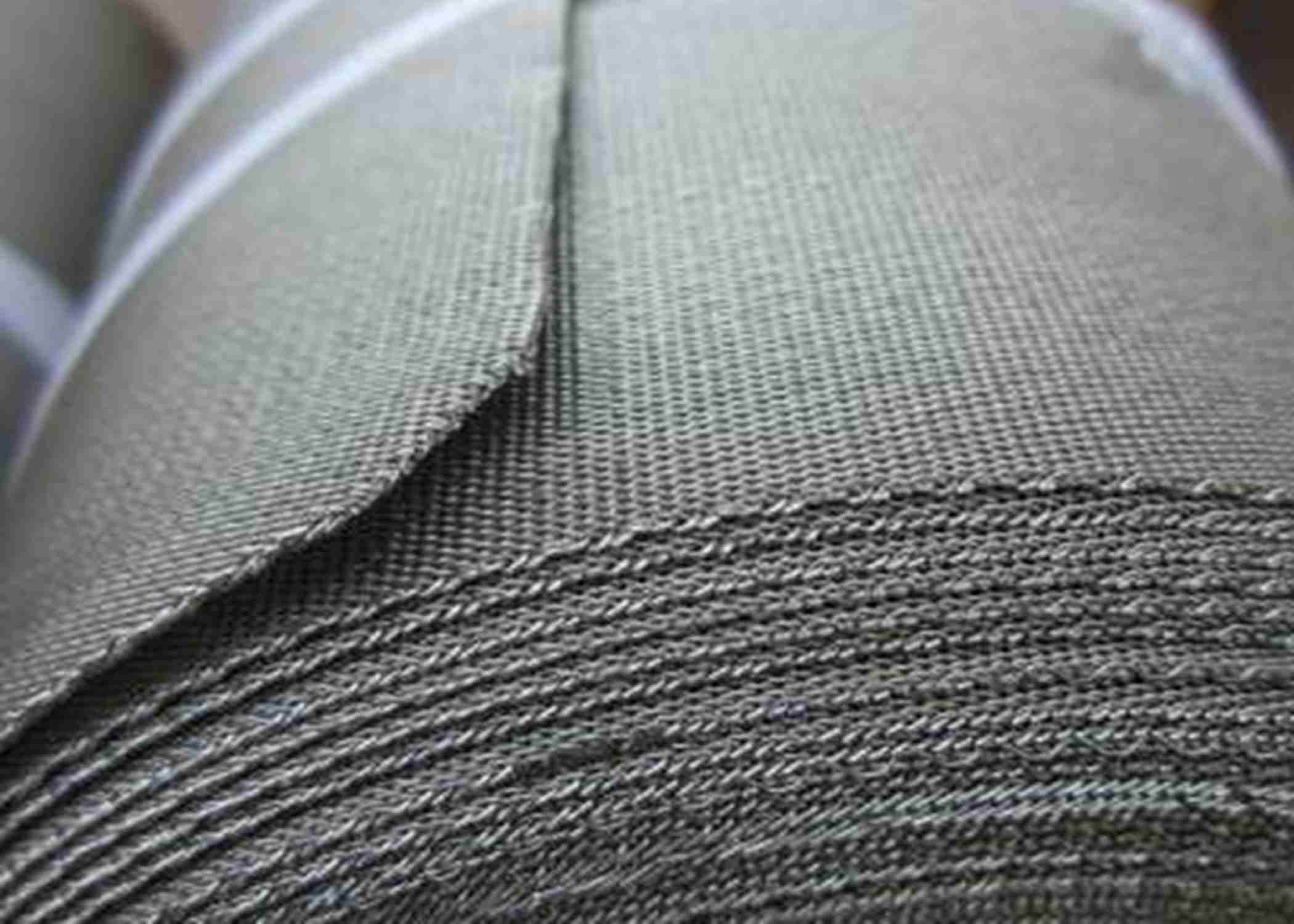

100mm 72x15 Mesh Stainless Steel Mesh Screen Twilled Dutch Weave

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Outstanding Filtration Performance Product Name Stainless Steel Dutch Wire Mesh
Material SS304 SS316 Cert ISO 9001: 2015
Surface Bright Silver Mesh Counts 72 × 15, 132 × 17, 152 × 30, 260 × 40
Weaving Type Twilled Dutch Weave Roll Width 100mm, 150mm, 300mm, 400mm, Etc
Roll Length 10m, 20m, 30m, Etc Application Widely Used For Filtering In Various Industries.
High Light

15 Mesh Stainless Steel Mesh Screen

,

72 Mesh stainless steel mesh screen

,

100mm stainless steel wire mesh screen

Leave a Message
Product Description

Reserve Twill Dutch Weave ISO 9001: 2015 Certified Stainless Steel Dutch Wire Mesh



Stainless Steel Reversed Dutch Twilled Weave Wire Mesh Introduction:



Reversed Dutch Twilled Weave Wire Mesh is specially designed for filtering. It is mainly made of stainless steel wire, which is chemical resistance, alkali and acid resistance, rust and corrosion resistance. It can ensure the durable filtering performance during the usage.



Using two different sizes of wire diameter, the stainless steel wire is woven into reverse dutch woven wire mesh. Which is widely used as filter disc or other filtration products in petrochemical, aerospace and other field.



Reverse dutch woven wire mesh is another product specially designed for filtering. It is mainly made of stainless steel wire, which is chemical resistance, alkali and acid resistance, rust and corrosion resistance. It can ensure the durable filtering performance during the usage. The reverse dutch weave can also be used in brass wire, which is also has chemical stability for filtering.



Using two different sizes of wire diameter, the stainless steel wire or brass wire is woven into reverse dutch woven wire mesh. Which is widely used as filter disc or other filtration products in petrochemical, aerospace and other field.



Commen Specifications:



Reversed Dutch Twilled Weave Wire Mesh
Warp Weft Nominal Micron
72 15 250
132 17 200
152 30 115
260 40 75

Othere specifications according to your requests.



Features:



Smooth surface;
High hardness;
Zero aperture;
Chemical resistance;
Acid and alkali resistance;
Rust and corrosion resistance;
Outstanding filtration performance, etc.



Material:



stainless steel wire 304, 304L, 316 or 316L, etc.





Width of roll:



67mm, 95mm, 97mm, 127mm, 133mm, 150mm, 157mm,300mm, 400mm, etc.





Weaving methods:



reversed dutch twilled weave(RDTW).

Durable Stainless Steel Woven Wire Mesh, Reversed Dutch Twilled WeaveTypes



Application:



Aerospace industry, Petroleum industry, Chemical industry, Chemical fiber industry, Machinery industry, Plastic products industry, conveying and other industries.



Packing:



100mm 72x15 Mesh Stainless Steel Mesh Screen Twilled Dutch Weave 1





Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
