304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture

  • 304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture
  • 304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture
  • 304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 1 Roll
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Stainless Steel Dutch Wire Mesh Material SS316L
Surface Bright Silver Aperture 5 Micron
Wire Diameter 0.035mm X 0.023mm Mesh Counts 325 X 2300
Weaving Type Twilled Dutch Weave Roll Width 1220mm
Roll Length 30m Application Filtration
Highlight

1.0m 304L Stainless Steel Dutch Wire Mesh

,

1.0m 316L Stainless Steel Dutch Wire Mesh

,

304L stainless wire mesh screen
Leave a Message
Product Description

50 Um Aperture Twill Dutch Weave Higher Strength Stainless Steel Dutch Wire Mesh



Stainless Steel Twill Dutch Weave Wire Mesh Introduction



Twill Dutch Weave Wire Mesh is also called as Micromesh. It is utilized in the crucial filtration applications including very high pressure such as gas and liquid filtration.



Twill Dutch Weave Wire Mesh is made by combining the characteristics of Dutch Weave and Twilled Weave. Double layers of shute wires pass alternately up and down of two warp wires. This kind of weave can adhere under larger loads as compare to Dutch Weave with finer openings than the Twilled weave. It is utilized in applications where ultrafiltration of particles is required of diameter 2 microns.



Our product maintains the highest quality standards and is ISO 9001: 2015 certified. All of our wire mesh products can be supplied meeting ASTM standards. It is stocked in the several specifications to assure quick delivery.



A broad range of Twilled Dutch Weave specifications are fabricated that attain the smallest monofilament filter openings with a smooth mesh surface. Great mesh stability is offered with a large material area. It is utilized for obtaining fine filtration such as fuel filtration in the severe applications and pressure sieving in hydraulic steering applications and candle filters.



Mesh Counts 50 X 600
Aperture 50 μm
Material: 201, 202, 301, 302, 304, 304L, 316, 316L, etc
Weave Type twill dutch
Roll Width 1.0m, 1.2m, 1.5m
Roll Length 30m

Commen Specifications:



Common Roll Width: 36", 40", 48"; 1.0m, 1.2m, to 1.5m.

Common Roll Length: 100ft; 30m to 60m.



Twill Dutch Weave Wire Mesh
Mesh
(mesh/inch)
Warp×Weft		 Warp×Weft
(mm)		 Aperture Size
(um)		 Available
Area(%)		 Thickness
(mm)
20×150 0.45×0.355 101 7.5 1.16
20×200 0.355×0.28 118 12.1 0.915
20×250 0.25×0.15 120 17 0.71
20×270 0.25×0.20 119 17.6 0.65
24×300 0.28×0.18 110 19.6 0.64
30×270 0.28×0.20 77 11.2 0.68
30×300 0.25×0.18 38
30×340 0.28×0.16 89 17.9 0.60
30×360 0.25×0.15
40×430 0.18×0.125 63 15.4 0.43
40×540 0.18×0.10 70 23.5 0.38
50×500 0.14×0.11 47 12 0.364
50×600 0.125×0.09 51 17.2 0.305
65×600 0.14×0.09 36 12 0.32
70×600 0.14×0.09 31 10.1 0.32
78×680 0.112×0.08 29 10.3 0.272
78×760 0.112×0.071 31 13.5 0.254
80×680 0.112×0.08 28 9.8 0.272
80×700 0.11×0.08 - - -
90×760 0.10×0.071 24 9.6 0.242
90×780 0.11×0.07 - - -
90×850 0.10×0.063 26 12.7 0.226
100×760 0.10×0.071 20 7.4 0.242
100×850 0.10×0.063 22 10 0.226
130×1100 0.071×0.05 17 9.4 0.171
130×1200 0.071×0.045 18 12 0.161
130×1500 0.063×0.036 21 18.6 0.135
150×1400 0.063×0.04 15 11.4 0.143
160×1500 0.063×0.036 15 12.4 0.135
165×800 0.07×0.05 - - -
165×1400 0.063×0.04 13 8.8 -
165×1500 0.063×0.036 14 11.4 0.135
174×1400 0.063×0.04 11 7.4 0.143
174×1700 0.063×0.032 13 12.9 0.127
203×1500 0.056×0.036 9 6 -
203×1600 0.05×0.032 10 9.3 0.114
216×1800 0.045×0.03 - 9 0.105
250×1600 0.05×0.032 - 4 -
250×1900 0.04×0.028 8 8 -
285×2100 0.036×0.025 7 7.2 -
300×2100 0.036×0.025 6 6 -
317×2100 0.036×0.025 5 5 -
325×2300 0.036×0.024 4 4 -
363×2300 0.032×0.022 - 5 -
Note: Absolute filter values above should be taken as just rough estimations.




Standard Type of SS304(L) & SS316T(L) Twilled Dutch Weave Wire Cloth



Material:



Stainless Steels, Pure Metals,Nickel Alloys, Heating Alloys



Weaving methods: Twilled Dutch Weave Pattern

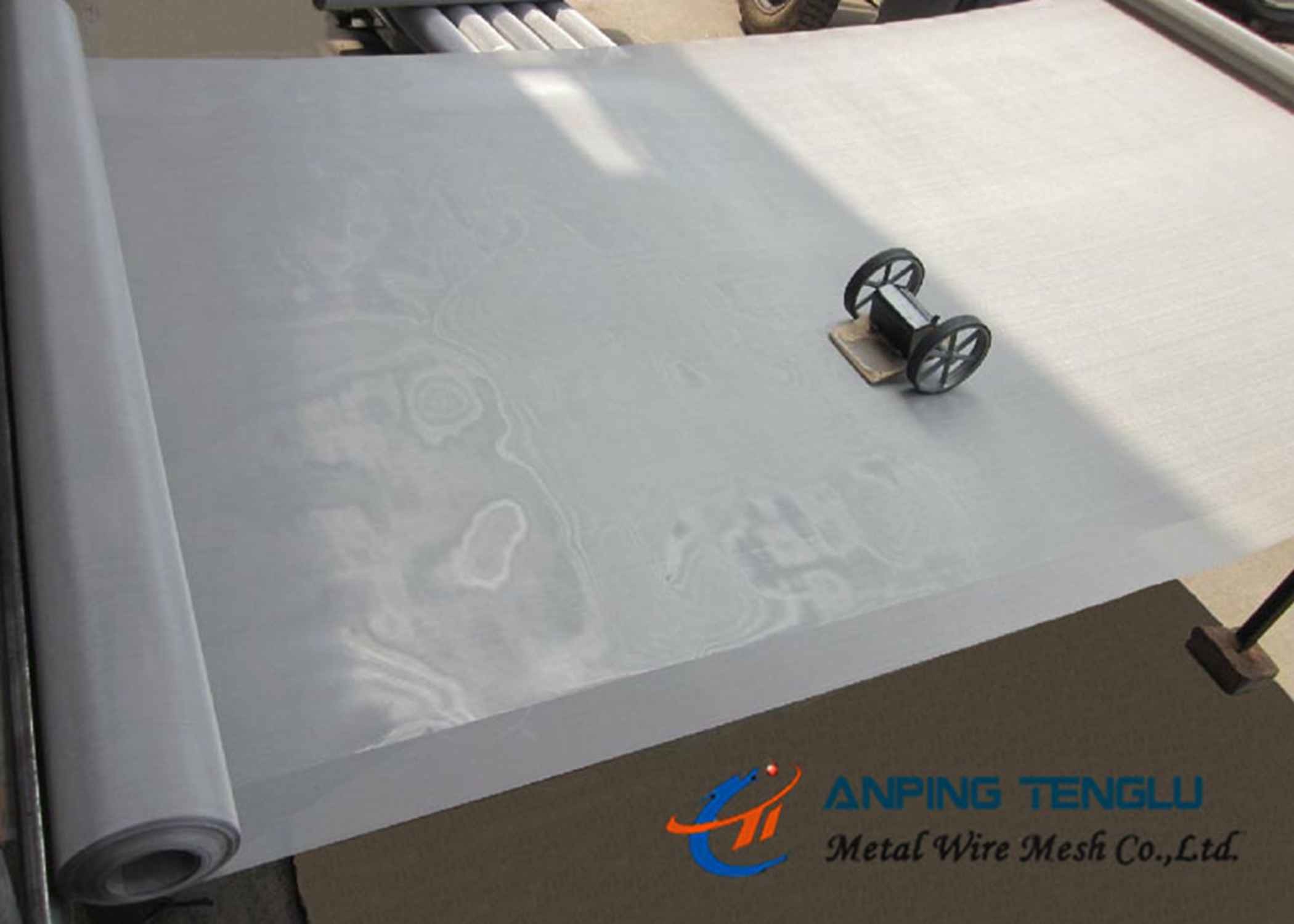

304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture 1



Twill Dutch Weave Wire Mesh Characteristics:



1. High quality results of filtration for non – sticky materials
2. Very Thick and smooth surface
3. Controlled flow rates
4. Higher strength than general Dutch weave mesh





Key Features:


1. Excellent strength

2. Ideal for ultra-filtration applications

3. Purification of liquids and gases

3.High stability

Application:



Twilled dutch weave wire cloth is widely used in precision pressure filters, Nutsche filters, Precoat filter systems, fuel filters, Sand control screens, petroleum, chemical industry, chemical fiber, rubber, tire manufacturing, metallurgy, medicine, food and so on. It is the finest filtration in hydraulic systems, especially for critical applications, such as aero-space and fuel.



Packing:

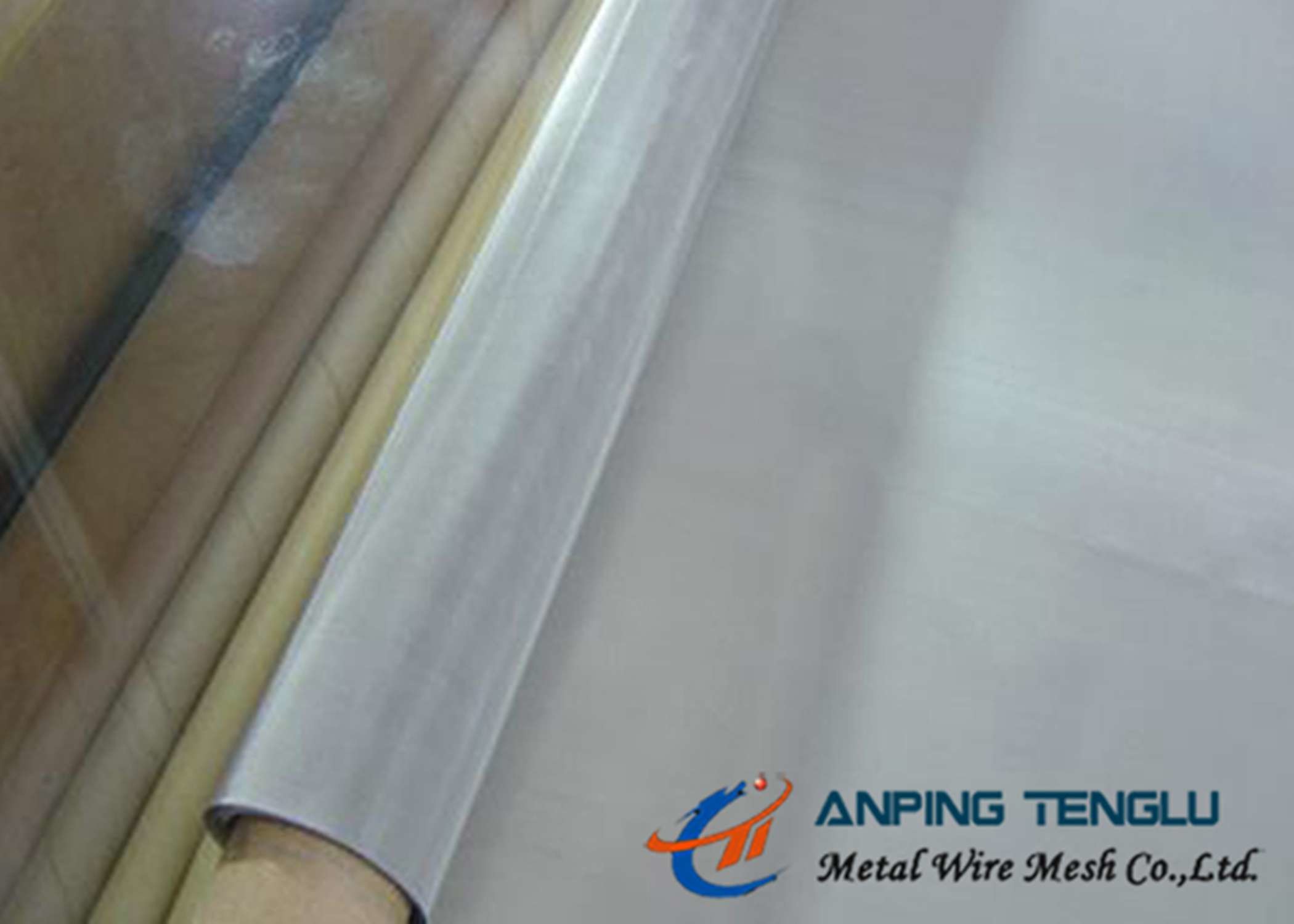

304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture 2





Questions: What specs are needed to quote?



304L 316L 304L Stainless Steel Dutch Wire Mesh 50um Aperture 3



Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
