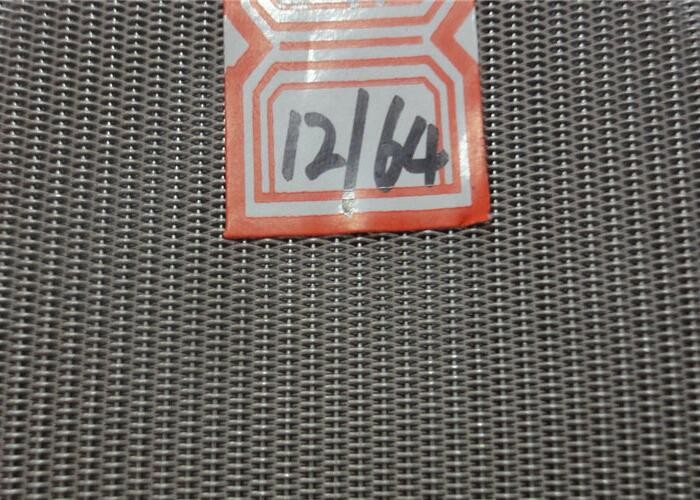

0.56mmx0.40mm Stainless Steel Dutch Wire Mesh 12x64 Mesh

  • 0.56mmx0.40mm Stainless Steel Dutch Wire Mesh 12x64 Mesh
  • 0.56mmx0.40mm Stainless Steel Dutch Wire Mesh 12x64 Mesh
  • 0.56mmx0.40mm Stainless Steel Dutch Wire Mesh 12x64 Mesh
Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Mechanical Stability Product Name Plain Dutch Weave Wire Mesh
Material Stainless Steel Standard AISI, DIN
Surface Bright Silver Weaving Type Plain Dutch Weave
Mesh Counts 12 X 64 Mesh Per Inch Roll Width 1.0m, 1.2m, 1.5m; 36", 48"
Roll Length 30m; 100' Application Filtration Industry
Highlight

0.40mm Stainless Steel Dutch Wire Mesh

,

0.56mm Stainless Steel Dutch Wire Mesh

,

64 Mesh stainless steel metal mesh
Leave a Message
Product Description

12 × 64 Mesh 0.56mm × 0.40mm Diameter Uniform Aperture Stainless Steel Dutch Wire Mesh



Stainless Steel Plain Dutch Weave Wire Mesh Introtuction



12 x 64 mesh 200 micron aperture size plain dutch weave stainless steel filter cloth :
1. mesh count per liner inch: 12 for warp wire, and 64 for weft wire
2. wire diameter: 0.024" for warp wire and 0.0165" for weft wire





12×64 Dutch Weave Mesh Details:



Mesh Counts Wire Diameter Aperture Weight
mm Inch um kgs/㎡ lbs/㎡
12×64 0.56×0.40 0.022×0.0157 210 3.89 7.70



Common Specifications of Plain Dutch Wire Mesh:



Roll Width: 0.2m-1.6m

Roll Length: 10m, 20m, 30m; 100ft



Mesh Counts

warp×weft

(Mesh/Inch)

Wire Diameter

warp×weft

(mm)

Aperture Size

(μm)

Weight

(kg/㎡)

Thickness

(mm)
7×40 0.9×0.71 347 6.65 2.32
7×44 0.71×0.63 319 5.55 1.97
8×45 0.8×0.6 310 5.7 2.00
8.5×60 0.63×0.45 296 4.16 1.53
8×85 0.45×0.315 275 2.73 1.08
10×90 0.45×0.28 249 2.57 1.01
10×76 0.5×0.355 248 3.24 1.21
12×86 0.45×0.315 211 2.93 1.08
12×64 0.56×0.4 3.89 1.36
12.5×76 0.45×0.355 192 3.26 1.16
14×100 0.40×0.28 182 2.62 0.96
14×110 0.355×.0.25 177 2.28 0.855
14×76 0.45×.0.355 173 3.33 1.16
16×100 0.4×0.28 160 2.7 0.96
17×120 0.355×0.224 155 2.19 0.803
16×120 0.28×0.224 145 1.97 0.728
20×140 0.315×0.20 133 0.715
20×170 0.25×0.16 130 1.56 0.57
20×110 0.355×0.25 126 2.47 0.855
22×120 0.315×0.224 115 2.20 0.763
25×140 0.28×0.2 100 1.96 0.68
24×110 0.355×0.25 97 2.60 0.855
28×150 0.28×0.18 92 1.87 0.64
30×150 0.25×0.18 82 1.79 0.61
30×140 0.315×0.20 77 2.21 0.715
35×190 0.224×0.14 74 1.47 0.504
35×170 0.224×0.16 69 1.62 0.544
40×200 0.18×0.135 63 1.24 0.43
45×250 0.16×0.11 56 1.11 0.384
50×300 0.16×0.09 55 0.98 0.34
60×500 0.14×0.055 51 0.70 0.252
50×270 0.14×0.10 50 0.98 0.34
70×930 0.10×0.03 30 0.39 0.16
65×390 0.125×0.071 42 0.78 0.267
60×300 0.14×0.09 41 0.96 0.32
80×700 0.125×0.04 40 0.60 0.205
60×270 0.14×0.1 39 1.03 0.34
77×560 0.14×0.05 38 0.74 0.24
80×600 0.1×0.045 37 0.53 0.19
70×390 0.112×0.071 0.74 0.254
65×750 0.10×0.036 36 0.43 0.172
70×340 0.125×0.08 35 0.86 0.285
80×430 0.125×0.063 32 0.77 0.251
100×1200 0.063×0.023 23 0.27 0.109
118×750 0.063×0.036 0.38 0.135

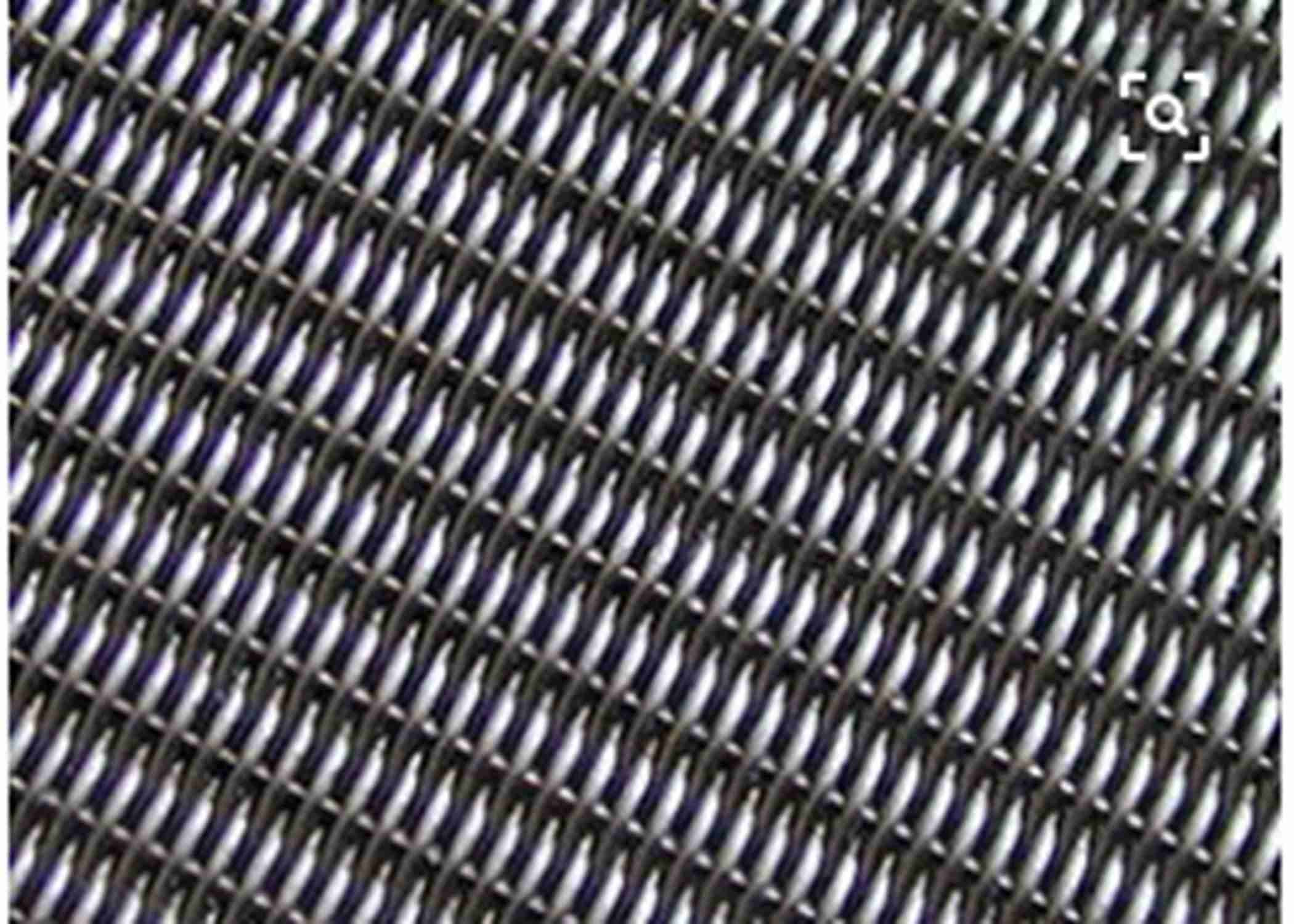

12*64Mesh, 0.56X0.40mm Wire, 210um Aperture, Used as Separation and Filtration



Characteristics:



1. Warp wire has bigger dia than shute wire
2. Shute wires are possibly bound close to each other
3. High accuracy
4. Nominal or no pressure loss while filtration
5. Supreme filtration surface
6. More stable than square and rectangular wire mesh



Features:



Uniform aperture;
Precise wire size;
Stable structure;
High corrosion resistant;
Long time service.



Material:



Stainless Steel 304, 304L, 316, 316L, etc.



Weaving methods:



Plain Dutch Weave("Warp×Weft" same meaning to "Warp×Shute")

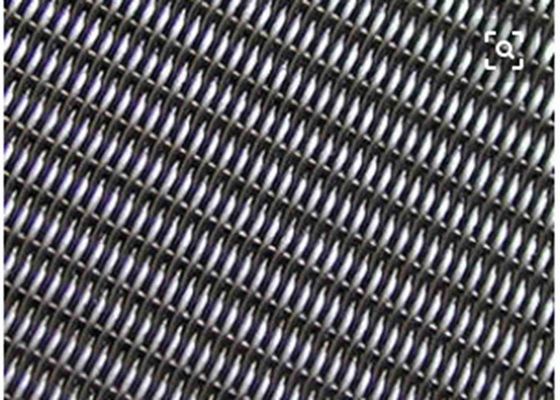

12*64Mesh, 0.56X0.40mm Wire, 210um Aperture, Used as Separation and Filtration



Dutch weave wire mesh also known as “Hollander weave mesh” is ideal for high-pressure filtration as this is stronger and more durable than plain weave wire meshes. The Dutch uses larger diameters and each weave pattern is made up of a limited number of warp wires, which are interwoven with weft wires creating a cloth that can withstand strong pressure. This type of mesh is usually used for liquid filtration for petrochemical, aerospace, pharmaceutical and even on wastewater treatment facilities.



Application:


12 x 64 mesh/ 210micron aperture size stainless steel plain dutch weave filter cloth is widely used in grain sieving, cooking oil filtering, chemical fiber filters, medicine filter an other precise micron filtering.



12*64Mesh, 0.56X0.40mm Wire, 210um Aperture, Used as Separation and Filtration



Packing:



Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.





Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh 3



Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
