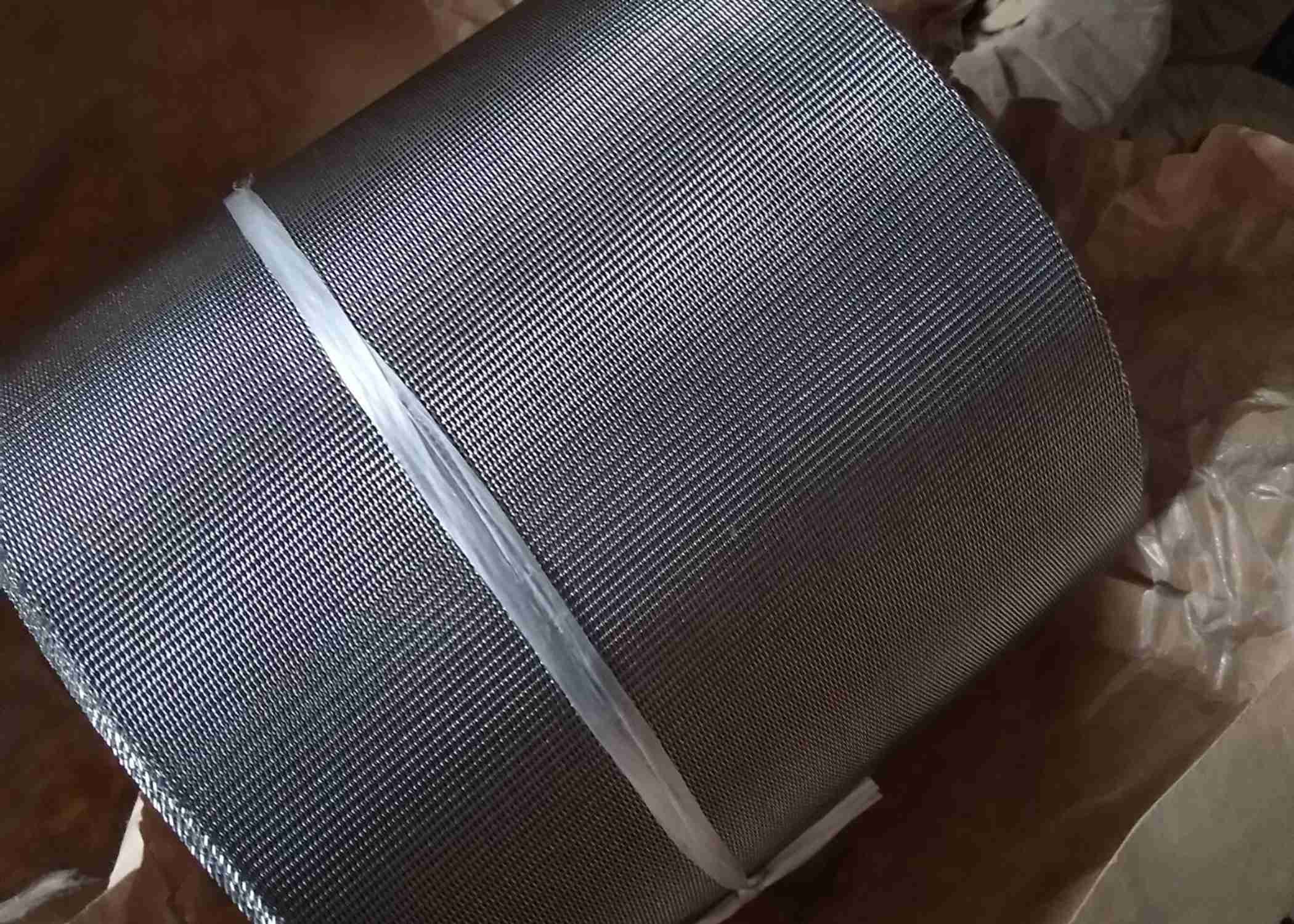

AISI 0.05m To 1.0m Stainless Steel Wire And Mesh 72x15 Mesh

Place of Origin Anping of China
Brand Name QIANPU
Certification ISO
Minimum Order Quantity 5 Rolls
Price Negotiable
Packaging Details Inside with a paper tube, outside with plastic film or waterproof paper, then in wooden case.
Delivery Time 40 days
Payment Terms T/T, Western Union, L/C

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Features Mechanical Stability Product Name Stainless Steel Contrast I - Net
Material Stainless Steel Standard AISI, DIN
Surface Bright Silver Weaving Type Reverse Dutch Weave
Mesh Counts 72 × 15, 132 × 17, 152×24, 260 × 40, 325 × 38, Etc Roll Width 0.05m To 1.0m
Roll Length 10m To 50m Application Filter For Plastic, Rubber, Oil Industry, Etc
High Light

1.0m stainless steel wire and mesh

,

1.0m 0.05m stainless steel wire and mesh

,

AISI stainless steel mesh cloth

Leave a Message
Product Description

Contrast I - Net Acid Resistance Highly Durable Stainless Steel Dutch Wire Mesh

Stainless steel Contrast I-Net Introduction



Stainless steel Contrast I-Net is also called reverse dutch wire cloth. Compared with standard dutch weaving, reverse dutch weaving is a very strong woven product in which the larger count of wires is found in the warp and the smaller count in the shute, thus reversing the method used in plain dutch weave, twilled dutch weaves and sometimes referred to as PZ and KPZ Mesh.



Commen Specifications



Mesh Counts

Wire Diameter

(mm)

Width

(m)

Length

(m)

72×15 0.45×0.45 0.1 to 1.0 10 to 50
132×17 0.30×0.45 0.1 to 1.0 10 to 50
152×24 0.30×0.40 0.1 to 1.0 10 to 50
260×40 0.15×0.25 0.1 to 1.0 10 to 50
325×38 0.13×0.25 0.1 to 1.0 10 to 50



Othere specifications according to your requests.



Features:



Stainless steel reverse dutch wire mesh offers good wear-resistance, acid-resistance, heat-resistance and corrosion resistance. It also has fine filtration and highly durable construction. With excellent filtration performance, filtration accuracy, high load strength, high/low temperature resistance and other characteristics.



Max Width:



1.0m (Weaving 1020mm then cut the edge.)



Common Material:



SS304, SS304L, SS316, SS316L.



Weaving methods:



reverse plain dutch weave, reverse twill dutch weave.

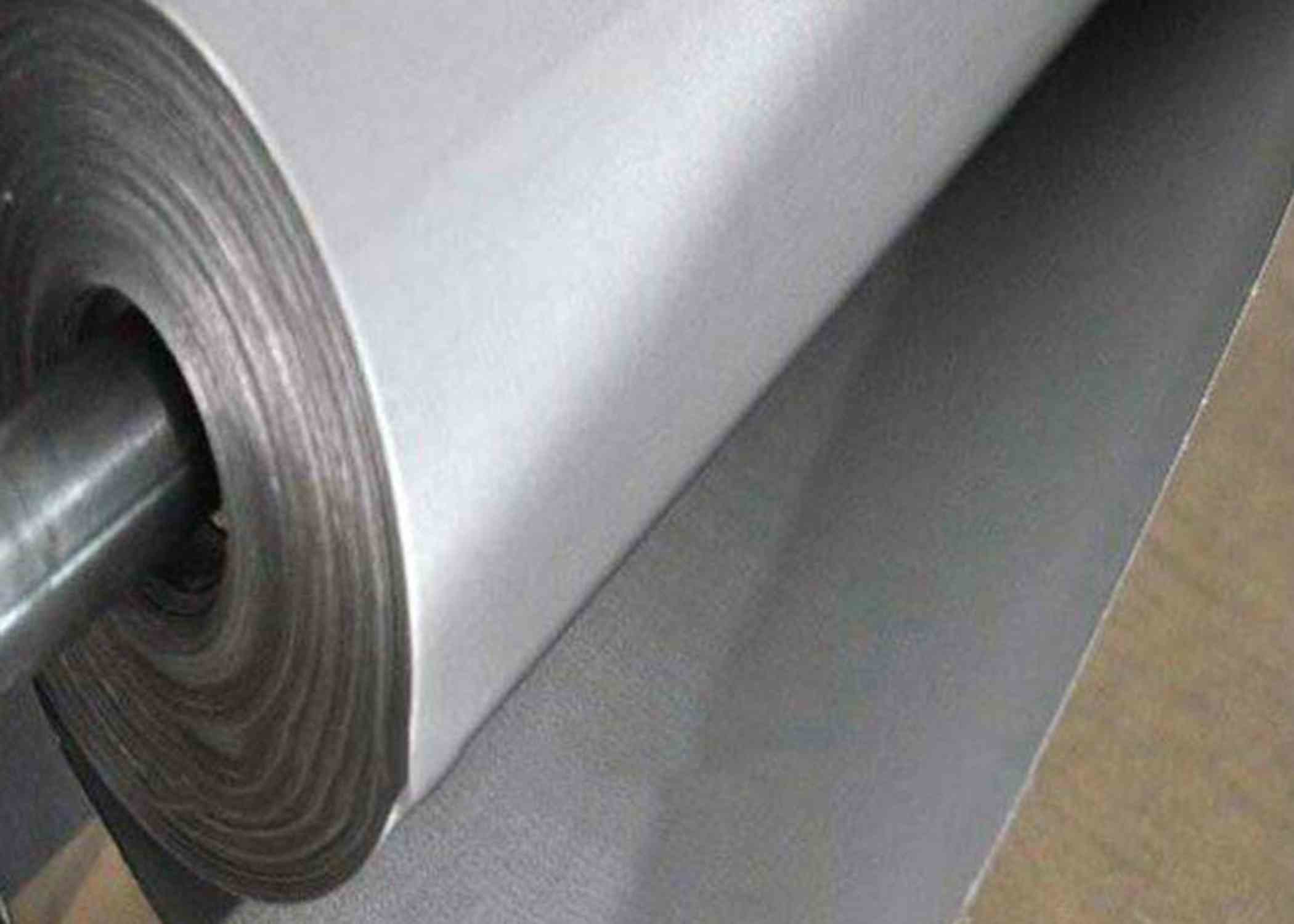

Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m

Stainless Steel 304 316 Contrast I-Net, Generally With 0.05m to1.0m



Application:


• Filter for plastic,rubber,oil industry.
• High tensile Warp wire for Auto-Screen changers used in the Plastic Extrusion Industry.
• Rubbed edges after slitting to help with tracking for Auto-Screen changers.
• Plasma and laser cut parts to help prevent edges wire fraying.
• 100% Inspection of Wire Cloth for critical applications such as sand screens and aerospace applications.



Packing:



Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.





Robusta Wire Mesh Excellent Filtration Stainless Steel Dutch Wire Mesh 3



Questions: What specs are needed to quote?

Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
