AISI 1.2m Stainless Steel Dutch Wire Mesh Three Heddle Weaving 904L
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Features | Mechanical Stability | Product Name | Three - Heddle Weave Wire Mesh |
|---|---|---|---|
| Material | Stainless Steel | Standard | AISI, DIN |
| Surface | Bright Silver | Weaving Type | Three Heddle Weave |
| Mesh Counts | 80 X 60, 60 X 40, 50 X 30, 24 X 18, Etc | Roll Width | 1.2m |
| Roll Length | 30m | Application | Industry Filter |
| Highlight | 1.2m Stainless Steel Dutch Wire Mesh,AISI Stainless Steel Dutch Wire Mesh,904L stainless steel wire cloth |
||
Product Description
AISI Standard Three Heddle Weaving Mechanical Stability Stainless Steel Dutch Wire Mesh

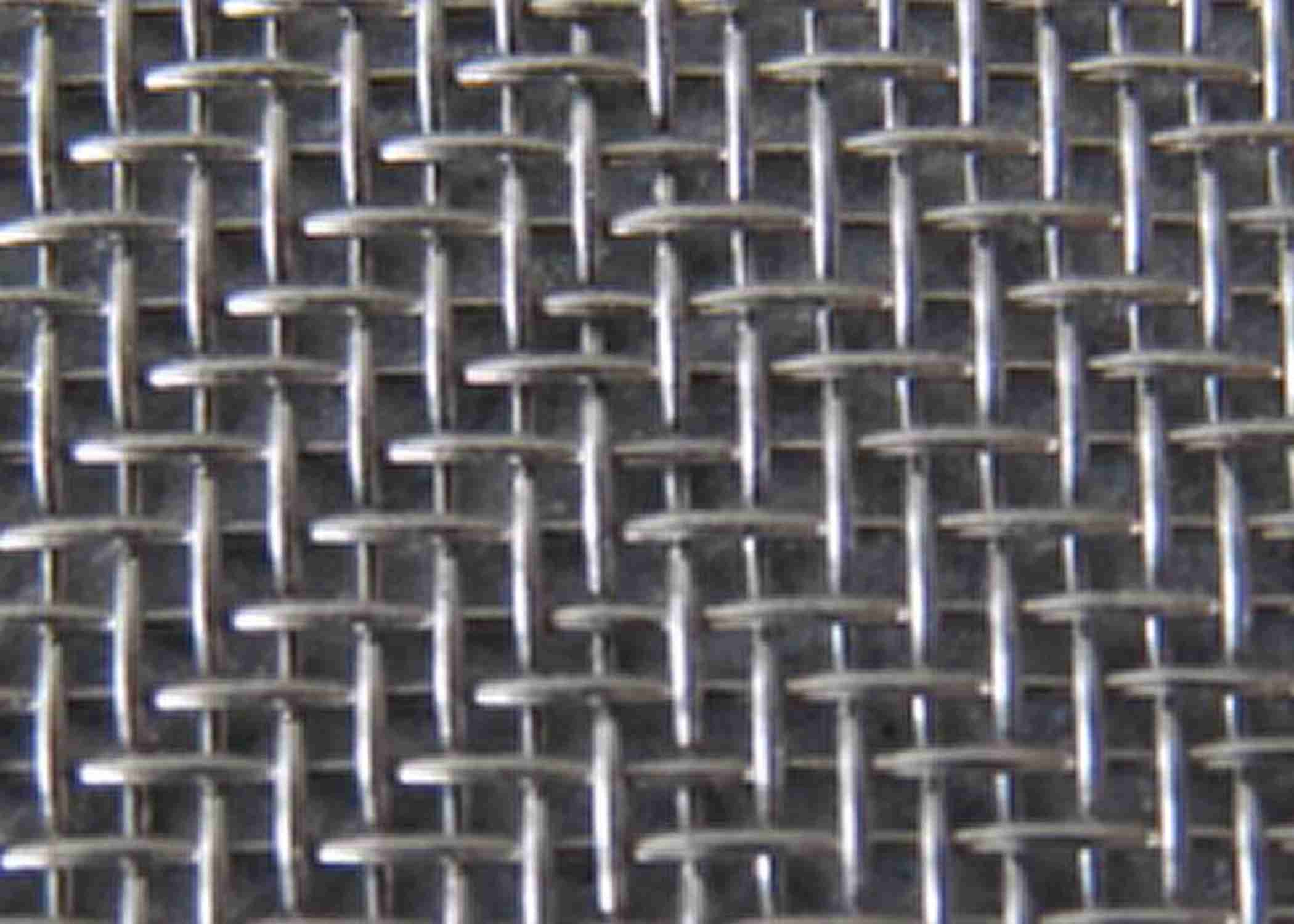

Three Heddle Woven Stainless Steel Wire Cloth Introduction:

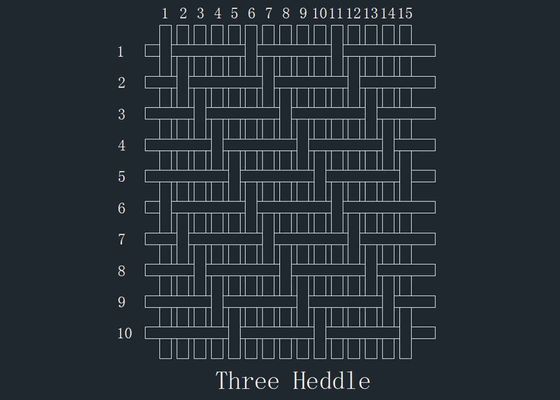

In Three Heddle Weave Wire Mesh every warp wire alternately passes up and down each one and two shute wires alternately. Similarly each shute wire goes alternately up and down of each one and two warp wires.
Specifications
| Warp(mm) | Weft (mm) | Open area | Weight | ||||
| Mesh/Inch | Wire Dia. | Aperture | Mesh/Inch | Wire Dia. | Aperture | Rate (%) | kg/㎡ |
| 24 | 0.35 | 0.7 | 18 | 0.4 | 1.0 | 97 | 1.45 |
| 50 | 0.23 | 0.27 | 30 | 0.3 | 0.54 | 70 | 1.33 |
| 60 | 0.2 | 0.217 | 40 | 0.24 | 0.405 | 66 | 1.17 |
| 80 | 0.14 | 0.17 | 60 | 0.17 | 0.25 | 34 | 0.82 |
Other size according to your requirements.
Material:
SS304, SS304L, SS316, SS316L, 904L, 2205. Other material like nickel wire, copper wire can be offered.
Weave Type:
Each warp wire alternately goes under and above each one and two weft wires, meanwhile, each weft wire goes alternately under and above each one and two warp wires.
Features:
Large aperture, falt surface; Firm in structure, high load tolerability, high tensile-resistance, good air permeability; High flow rate and easy to clean.
Applications:
Used in industry filter, paper making drier part , machine conveyer belt, cultural paper, super calendaring printing paper, hectograph.
Packing:
Stainless steel wire mesh is packed in rolls,winding on a paper tube,wrapped in moisture-proof paper or plastic film, outside wooden cases or wooden pallet.
Questions: What specs are needed to quote?
Answer: Material, woven type, aperture or mesh counts, wire diameter, roll width x roll length and number of rolls.
